Automatic Fireworks Paper Cone Making Machine
Description
Pyrotechnics Manufacturing Equipment · Industrial Grade
Automatic Fireworks
Paper Cone Making Machine
Full PLC-controlled production line for high-precision, high-speed fireworks cone manufacturing. From raw paper roll to finished cone — zero manual winding required.
80–100 Pcs / Minute
140–350 GSM Paper Range
4KW Motor Power
CE Certified
// Machine in Action
See the Full Production Line Running
Watch our automatic fireworks paper cone making machine complete a full production cycle — paper feeding, spiral winding, hot glue bonding, drying, and cone finishing — in real factory conditions.
Automatic Fireworks Paper Cone Production Line — Live Factory Demo | PoucheMachine
// Production Workflow
How the Cone Is Made:
5-Stage Automated Process
Unlike single-unit competitors, our machine integrates every stage of cone production into one continuous, fully automatic line — reducing labor by over 85% versus semi-automatic alternatives.
01
Paper Roll Feeding
Auto-unwinding of 140–350GSM kraft paper from roll. Tension-controlled feed ensures consistent paper delivery without tearing or slippage.
02
Spiral Winding
High-precision mandrel winding forms the conical shape layer by layer. Adjustable taper angle supports multiple pyrotechnic cone profiles.
03
Hot Glue Bonding
Integrated adhesive system applies hot-melt glue uniformly between paper layers, ensuring structural integrity under the high-pressure conditions of pyrotechnic use.
04
Drying Oven
Tunnel drying oven with auto temperature control (70–90°C) cures each cone in 34–36 minutes. Chain conveyor keeps drying continuous and synchronized.
05
Finishing & Stacking
Automatic base cutting, surface finishing, and cone nesting. Output is sorted and stacked without manual handling for clean downstream packaging.
// Technical Specifications
Machine Specifications
Full technical parameters for our standard automatic fireworks paper cone making machine. Custom configurations available on request.
| Production Speed | 80–100 pcs / min |
| Paper Weight Range | 140–350 GSM |
| Motor Power | 4 KW |
| Voltage | 380V / 220V · 50/60Hz |
| Machine Weight | 800 KG |

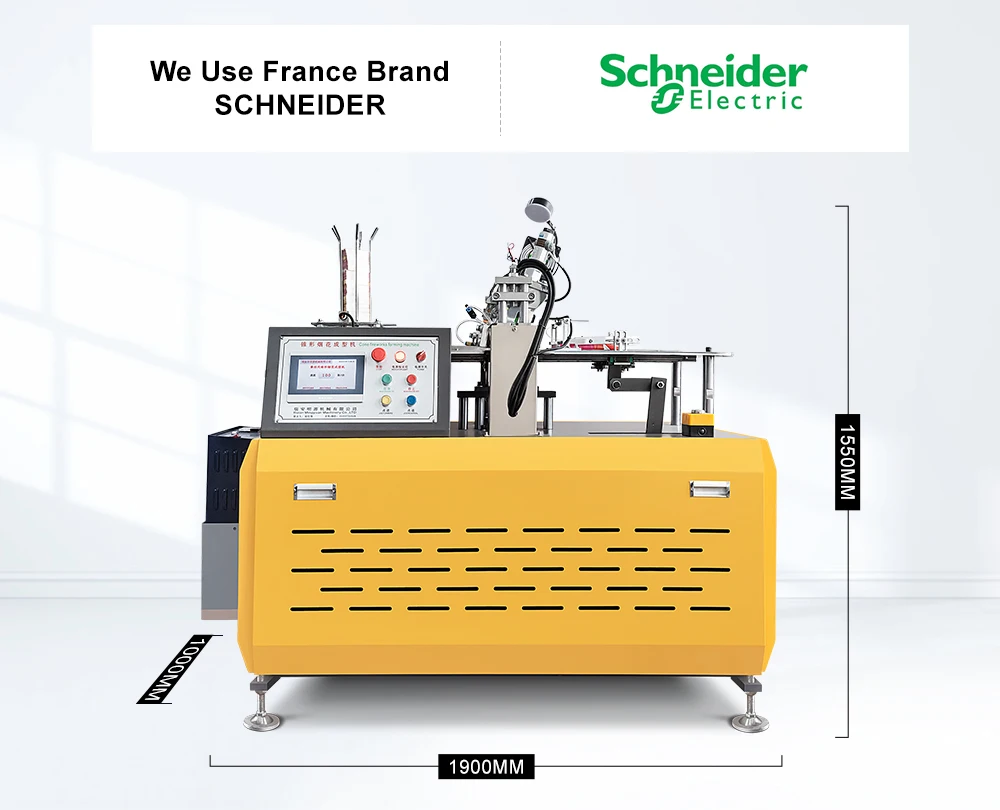

| Machine Dimensions | L1900 × W1000 × H1550 mm |
| Air Compressor | 0.4 MPa · 0.6 m³/min output |

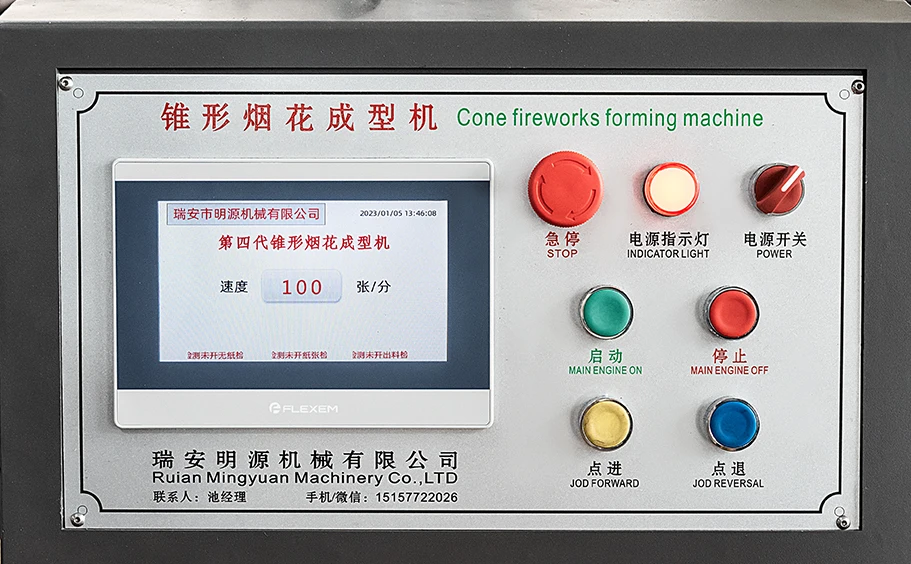

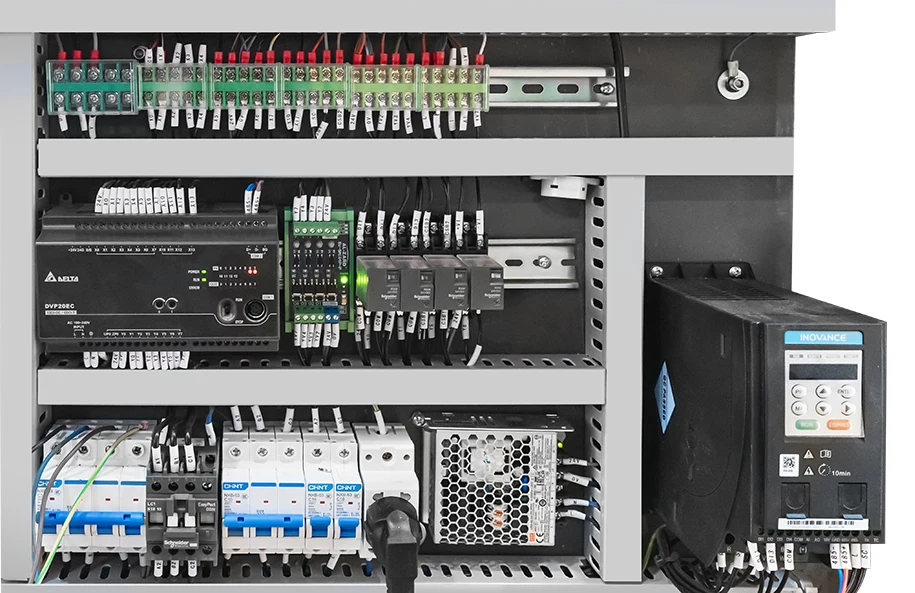

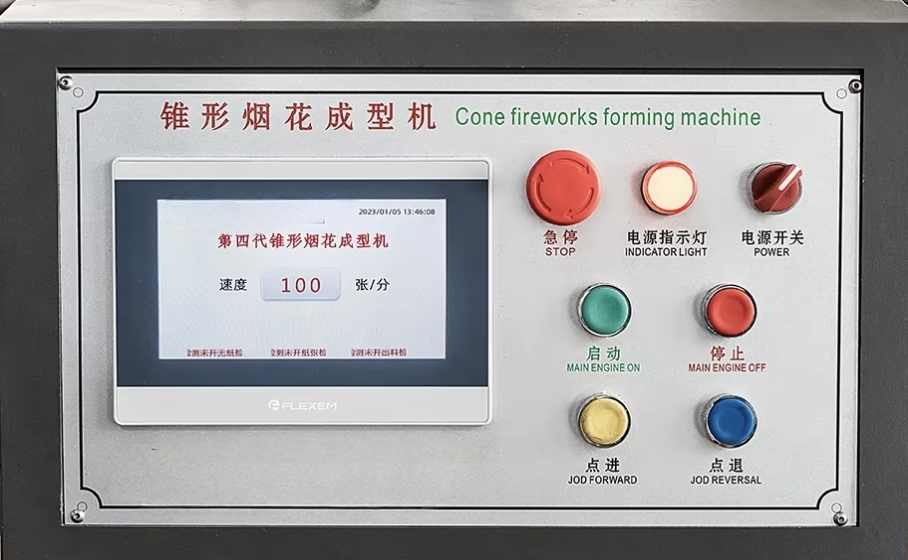

| Control System | PLC + Touch Screen HMI |

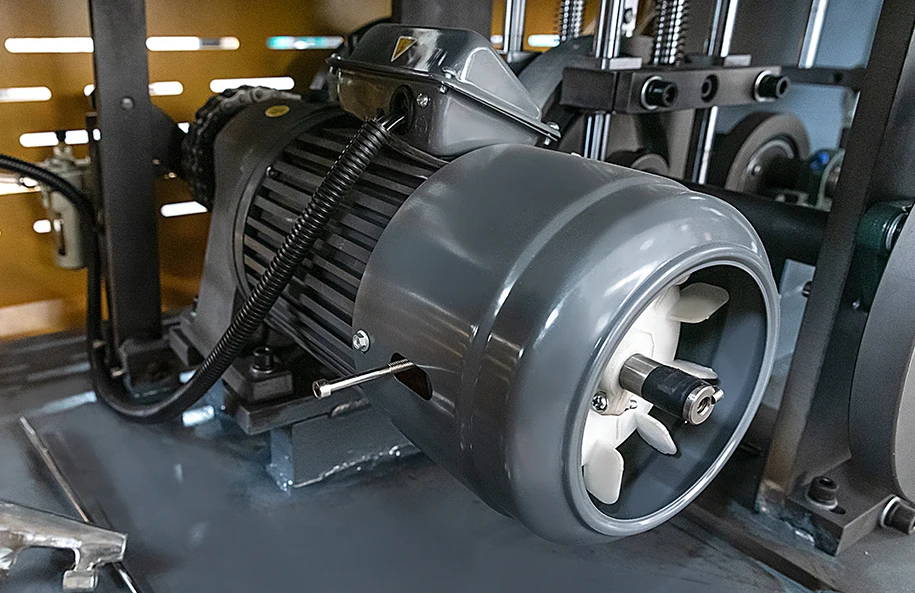

| Drive System | VFD Variable Frequency |
| Certification | CE Certified |
| Warranty | 1 Year Full Warranty |
| Min. Operators Required | 1–2 per shift |
// Component Breakdown
The complete production line includes three core machine units, sold as a fully integrated system:
① Cone Winding Unit
High-speed mandrel winder with auto paper feeding, glue application, and precision cone formation. Adjustable mandrel for different cone diameters.
② Tunnel Drying Oven
Chain-conveyor drying oven with PLC temperature control (70–90°C). Holds up to 1,450 cones simultaneously. Multiple heat sources compatible: electric, gas, or steam.
③ Finishing Machine
Automated base cutting, surface treatment, and cone nesting unit. Output up to 55 cones/min. Fully synchronized with winding and drying units via PLC.
// Machine Gallery
Product Images
Real production equipment from our factory floor. All images show our standard automatic fireworks paper cone making machine and finished cone output.

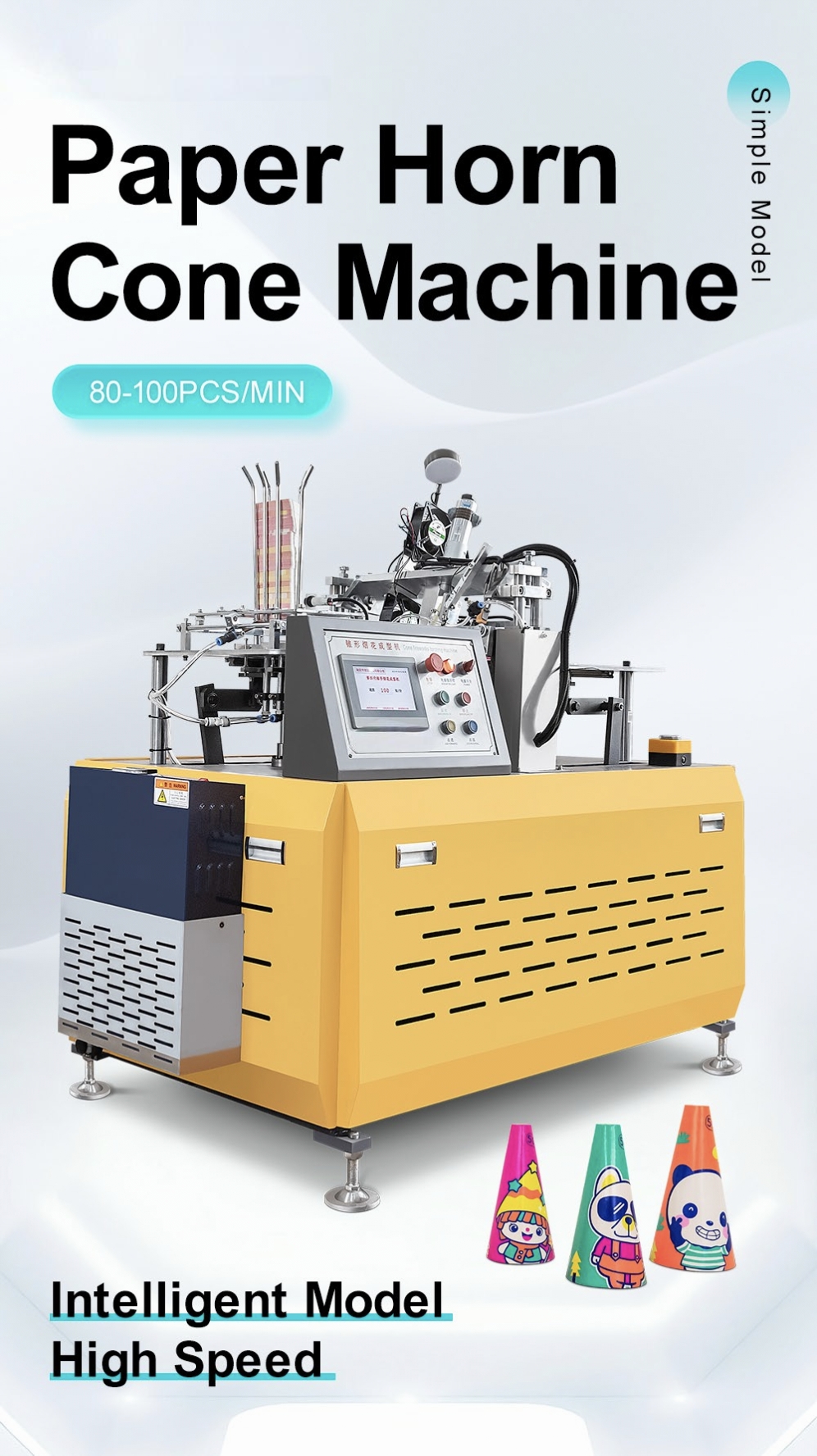

Full Production Line Overview

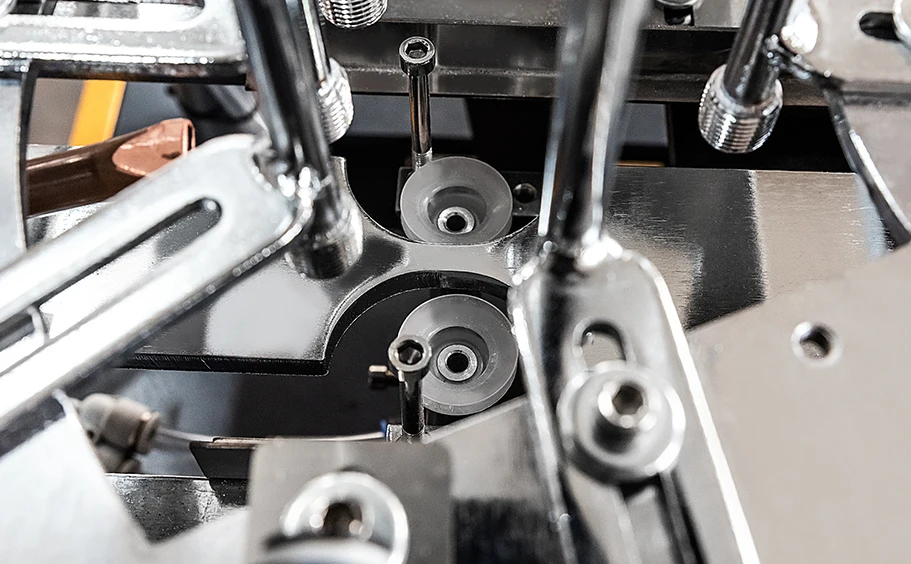

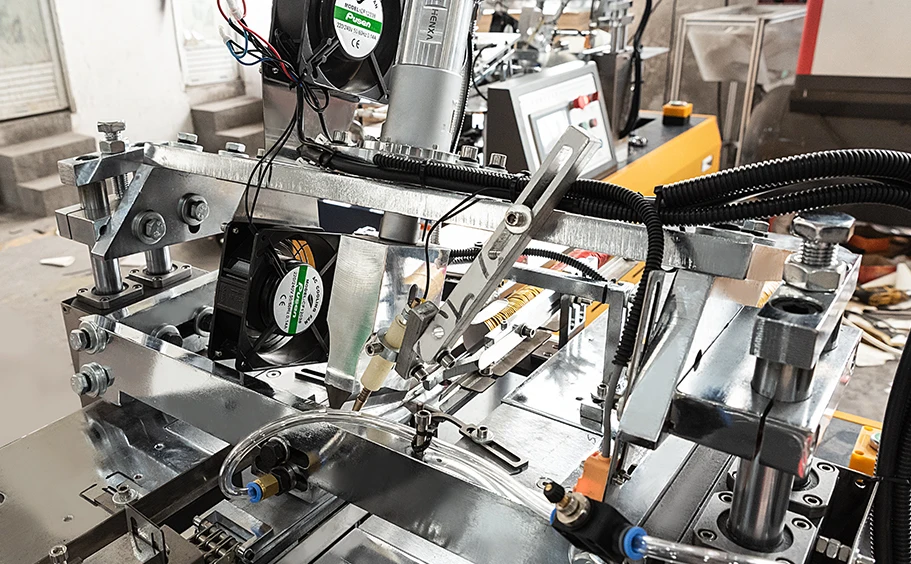

PLC Winding Unit Detail

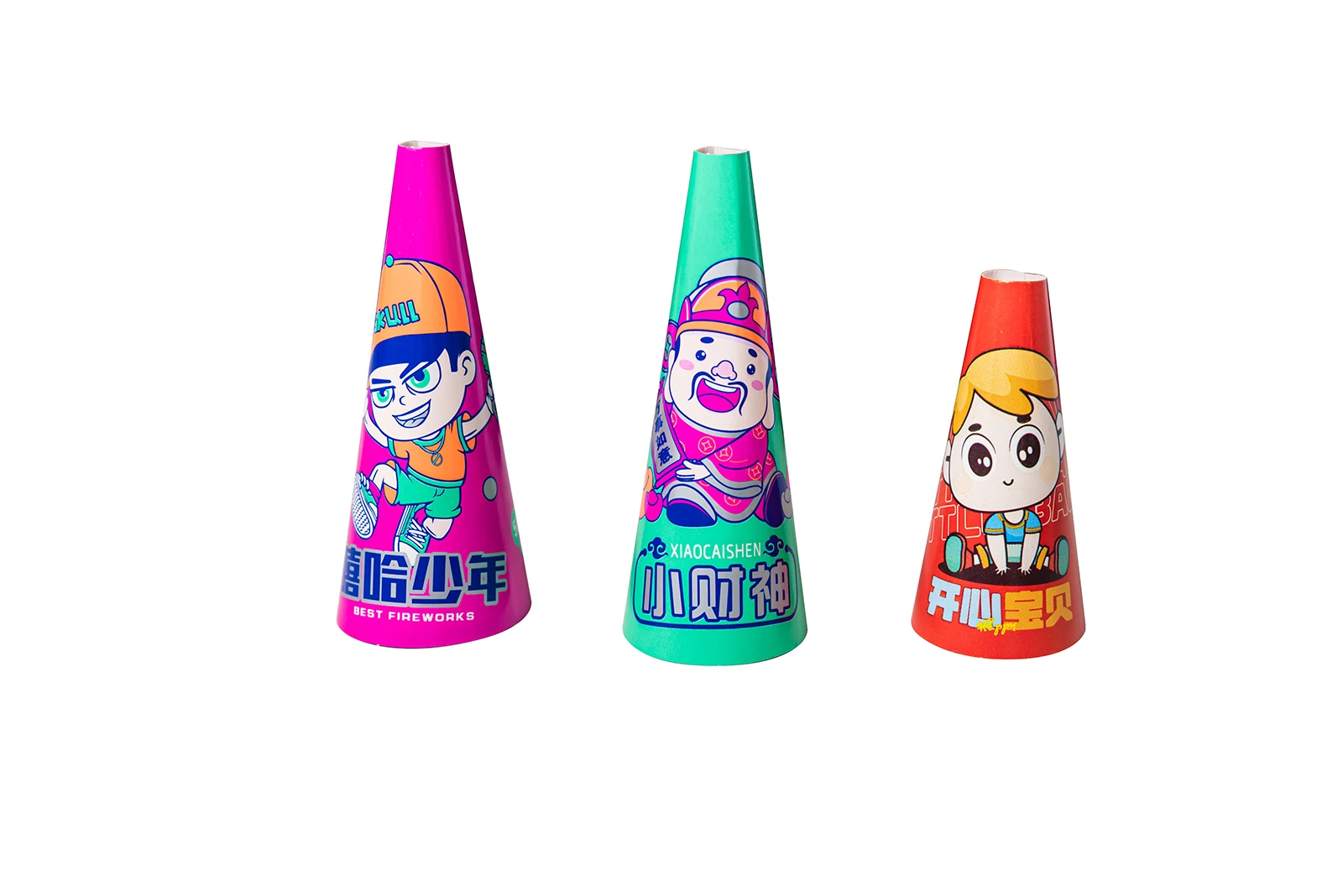

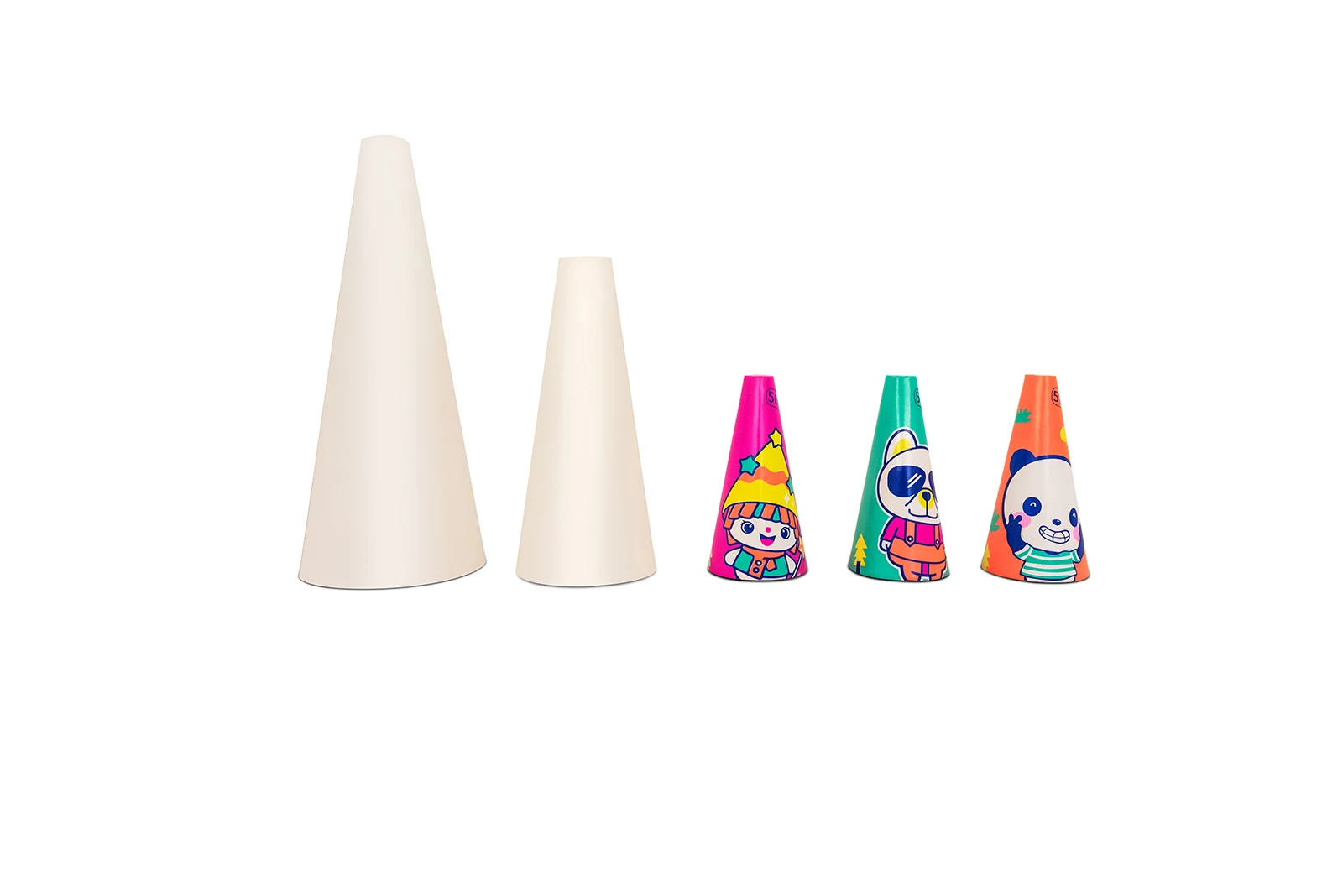

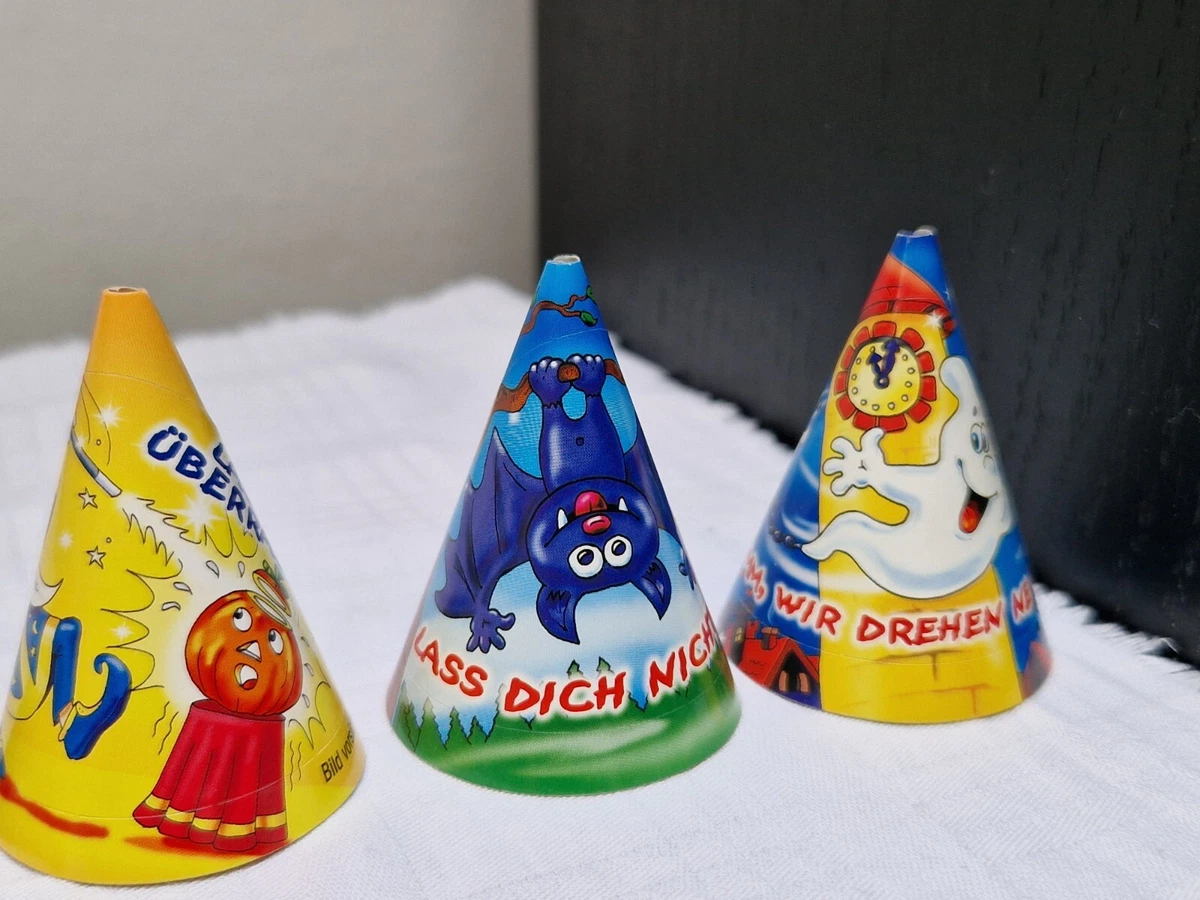

Finished Cone Output Samples
Tunnel Drying Oven
↑ Images load from the original product page. Contact us for HD video and detailed machine photos.
// Why Choose Us
What Sets Our Machine
Apart from Competitors
Most fireworks cone machine listings describe the same commodity specs. Here is what actually differentiates our production line in real pyrotechnic manufacturing environments.
Integrated 3-Unit System — Not Just a Winder
Many competitors sell only the winding unit. Our solution integrates winding, drying, and finishing into one synchronized PLC-controlled line, eliminating inter-unit coordination failures and reducing floor space by 30%.
Pyrotechnic-Grade Wall Integrity
Fireworks cones must withstand internal pressure during ignition. Our multi-layer winding with pressure-controlled glue application produces cones that pass burst pressure testing — a critical safety spec rarely mentioned by competitors.
Multi-Source Drying Oven
Our tunnel oven supports electric, gas, steam, or thermic oil heating — unlike electric-only competitors. This lets operators in any region optimize energy costs and meet local fuel availability requirements.
Rapid Mandrel Changeover
Switch between cone diameters and taper angles in under 20 minutes. Quick-change tooling design allows one machine to serve multiple fireworks product formats without dedicated changeover technicians.
VFD Speed Control for Paper Grade Flexibility
Variable-frequency drive (VFD) adjusts winding speed based on paper weight and cone wall thickness. This prevents tearing with thin papers and ensures density with heavy GSM stock — a feature absent in fixed-speed machines.
Dual-Voltage Global Compatibility
Factory-configured for both 380V and 220V at 50/60Hz. No external transformer required for most international installations. Reduces site preparation cost and lead time for export buyers.
// Industry Applications
Where Fireworks Paper Cones Are Used
Understanding the downstream application of the cone directly impacts the machine spec you need. Our team configures the right mandrel, wall thickness, and taper angle for each use case.
🎆
Aerial Shell Casing
🎇
Fountain Base
🌟
Roman Candle Insert
💥
Ground Effect Shells
🏮
Festival Crackers
🎉
Confetti Cone Casing
// Buyer's Reference Guide
How to Specify the Right Fireworks Cone Machine for Your Factory
Most buyers compare machines purely on price and speed. The specs below are what actually determine ROI and product quality in pyrotechnic production:
1. Cone Wall Thickness
Determined by number of winding layers × paper GSM. Pyrotechnic shells typically require 3–8mm wall. Confirm mandrel supports your required wall build-up before ordering.
2. Taper Angle Compatibility
Different fireworks formats use different cone angles. Confirm the machine's mandrel range covers your product family — typical angles range from 3°30' to 9°15'.
3. Glue Type & Application
Water-based glue requires a longer drying cycle; hot-melt glue cures instantly but adds equipment cost. Choose based on your drying oven capacity and output speed target.
4. Regulatory Compliance
In the EU and North America, fireworks component manufacturing equipment must meet specific safety codes. Our CE-certified machines include isolation interlocks and emergency stop circuits rated for pyrotechnic environments.
// Frequently Asked Questions
Common Questions About
Fireworks Cone Machines
An automatic fireworks paper cone making machine is industrial equipment that automatically winds, glues, dries, and finishes paper into hollow conical tubes used as structural casings in pyrotechnic products — including aerial shells, fountain fireworks, Roman candles, and ground-effect devices. The machine replaces labor-intensive hand winding and delivers consistent wall thickness, taper angle, and structural integrity required for safe fireworks performance.
Our standard automatic fireworks paper cone making machine produces 80–100 pieces per minute under normal operating conditions. Output is adjustable via the variable-frequency drive (VFD) control to accommodate different cone sizes, paper weights, and wall thickness requirements. In a standard 8-hour shift, a single machine can produce 38,400–48,000 cones.
The machine accepts kraft paper in the range of 140GSM to 350GSM. Lighter papers (140–200GSM) are typically used for thin-wall cones in small consumer fireworks. Heavier paper (250–350GSM) is used for multi-layer, high-pressure aerial shell casings. The mandrel winding speed is automatically adjusted for paper weight to prevent tearing or under-compression.
Yes. The mandrel and press-bar assembly can be changed to produce different cone diameters and taper angles. Standard changeover takes approximately 15–25 minutes. Common taper angles supported include 3°30', 4°20', 5°57', and 9°15'. Custom mandrels for non-standard product profiles can be manufactured on request.
Yes. Our automatic fireworks paper cone making machine is CE certified and designed to meet international safety and electrical standards for industrial machinery. The control panel includes emergency stop circuits, overload protection, and isolation interlocks appropriate for use in pyrotechnic component manufacturing environments.
A semi-automatic machine requires operators to manually load paper patterns and position them on the mandrel before each wind cycle — limiting speed to 25–35 cones/min and requiring 3–4 operators per machine. Our fully automatic machine handles paper feeding, winding, glue application, drying, and finishing without manual intervention, achieving 80–100 pcs/min with just 1–2 operators per shift. For production volumes above 20,000 cones/day, the automatic line delivers a significantly lower cost per cone.
Every machine comes with a 1-year full warranty, remote technical support via video call, English-language operation and maintenance manuals, and spare parts supply from our in-house stockroom. On-site installation and operator training is available for international buyers (travel and accommodation costs apply). Most common spare parts can be shipped within 48–72 hours.
// Ready to Order?
Get Factory-Direct Pricing
on Your Cone Machine
Tell us your target cone size, daily output volume, and paper grade — we'll configure the right production line and provide a detailed quotation within 24 hours.
