Dual Digital Counter
Simultaneously tracks label quantity and rolled length in meters — eliminating manual counting and enabling precise batch management for QC and logistics.
Previous
Next
BSC-R350 Automatic Label Rewinder Machine | Reel-to-Reel with Digital Counter & 450mm OD
Description
⚙ Industrial Grade · Factory Direct
BSC-R350
Automatic Label
Rewinder
Professional reel-to-reel label rewinding machine with dual digital counter, stepless speed regulation, and bidirectional operation — engineered for high-volume production environments.
450mm Max Roll Diameter
30m/min Max Rewinding Speed
2-way Bidirectional Operation
1″+3″ Multi Core Compatible
Factory Direct Pricing
CE & RoHS Compliant
1-Year Warranty
Worldwide Shipping
In Stock
Technical Specifications
Precision Engineering, Measurable Performance
Every parameter of the BSC-R350 is engineered to reduce waste, increase throughput, and integrate seamlessly with existing labeling lines.
Model BSC-R350 Reel-to-Reel Label Rewinder
Max Outer Diameter (OD) 450 mm Supports high-volume label rolls
Rewinding Speed 0 – 30 m/min Stepless speed regulation via dial
Label Width Range 30 – 150 mm Wide compatibility with standard label rolls
Core Size Compatibility 1″ / 1.5″ / 3″ Easy no-tool core change
Rewinding Direction Bidirectional Forward & reverse, selectable
Counter Type Dual Digital Label quantity + roll length (meters)
Drive System Electric Motor Auto-sync with connected printers
Power Supply AC 110V / 220V Auto-switching, global compatible
Net Weight 39.5 kg Gross weight: 46 kg
Material Compatibility Paper / Film / Foil Thermal, direct thermal, adhesive labels
Construction Steel Frame Heavy-duty, vibration-damped base

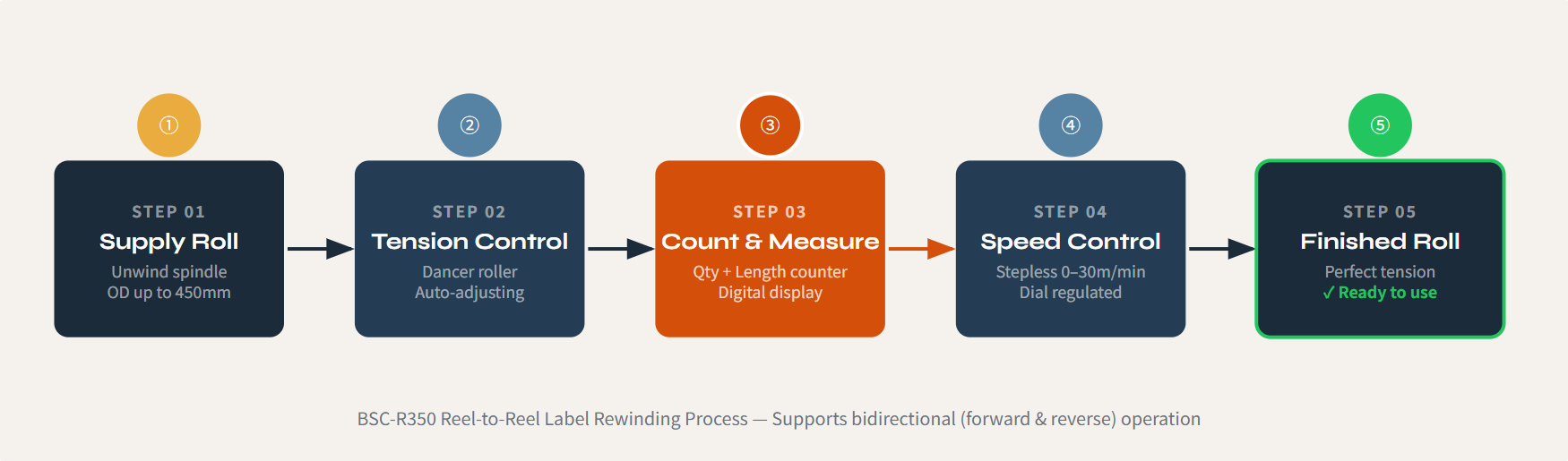

Process Flow
How the BSC-R350 Rewinding Process Works
A clear, linear web path with intelligent tension management ensures zero-wrinkle, perfectly wound label rolls every time.
Why BSC-R350
6 Reasons Engineers Choose the BSC-R350
Purpose-built for production environments where label accuracy, uptime, and ease of operation are non-negotiable.
Bidirectional Rewinding
Switch between forward and reverse rewinding modes to match any label orientation requirement — critical for pharmaceutical and electronics packaging lines.
Stepless Speed Control
Continuously variable dial speed from near-zero to 30 m/min adapts to fragile substrates (thin thermal paper, metallic foil) or high-throughput production equally well.
Universal Core Compatibility
Tool-free changeover between 1″, 1.5″, and 3″ cores means zero reconfiguration downtime when switching between label roll formats or printer models.
Auto-Sync with Printers
Electrically synchronized motor automatically matches print speed, preventing label web tension faults, liner tears, or registration errors downstream.
Heavy-Duty Steel Frame
Robust all-steel chassis weighing 39.5 kg net absorbs vibration from adjacent machinery, maintaining consistent roll geometry even during prolonged 24/7 production runs.
Industry Applications
Built for Demanding Labeling Environments
The BSC-R350 operates reliably across six major industries where label accuracy and roll consistency directly impact product compliance and brand integrity.
Pharmaceutical
Food & Beverage
Electronics
Cosmetics
Logistics & Retail
General Manufacturing
Competitive Analysis
BSC-R350 vs. Generic Label Rewinders
See how the BSC-R350 outperforms standard entry-level rewinders across the criteria that matter most to production managers.
| Feature | BSC-R350 | Generic Entry-Level | Manual Rewinders |
|---|---|---|---|
| Max Roll Diameter | 450 mm | 200–300 mm | 150–200 mm |
| Rewinding Speed | 0–30 m/min | Fixed / Limited | Manual only |
| Digital Label Counter | ✓ Qty + Length | ⚬ Qty only | ✗ |
| Bidirectional Operation | ✓ Forward & Reverse | ✗ | ✗ |
| Auto-Sync with Printer | ✓ | ⚬ Some models | ✗ |
| Multiple Core Sizes | 1″ / 1.5″ / 3″ | 1″ or 3″ only | Fixed |
| Tension Control | ✓ Auto dancer roller | ⚬ Basic only | ✗ |
| Construction | Full steel frame | Plastic / mixed | Plastic |
| Warranty | 1 Year | 3–6 months | None |
⚬ Partial support | ✓ Full support | ✗ Not available. Competitor data based on market research of comparable price-tier products.
Practical Applications
Real-World Use Cases
The BSC-R350 fits naturally into established production workflows across industries.
01
Pharmaceutical Label Rerewinding for Compliance Batching
Rewind printed serialization labels into exact-count batches (e.g., 500 or 1,000 labels per roll) for downstream GS1 compliance or secondary packaging machines. The dual counter eliminates human error in batch documentation.
02
Thermal Printer Output Management
Directly connect to Zebra, Honeywell, SATO, or TSC thermal printers to auto-rewind labels as they print, preventing label pile-up, maintaining liner tension, and enabling unattended overnight print runs.
03
Label Roll Splitting & Rebatching
Take large master rolls of barcode or product labels and rewind into smaller rolls with exact label counts — ideal for kitting operations, contract label printers, or multi-line production facilities.
04
Label Orientation Reversal
Use the bidirectional function to flip label winding orientation (inside-out or face-in/face-out) to match specific labeling machine requirements — eliminating the need to reorder labels from the printer.
Frequently Asked Questions
BSC-R350 Label Rewinder — Common Questions
Answers to the most common technical and purchasing questions from engineers and procurement teams.
What is the maximum label roll diameter the BSC-R350 can handle? ▾
The BSC-R350 supports a maximum outer diameter (OD) of 450 mm. This accommodates large production-scale label rolls, reducing the frequency of roll changes and improving line efficiency. Most standard label rolls (100mm – 350mm OD) are well within this range.
What core sizes does the BSC-R350 support, and how easy is it to change? ▾
The BSC-R350 supports 1 inch (25–26mm), 1.5 inch (38–40mm), and 3 inch (76mm) core sizes. Core adapters are designed for tool-free changeover, meaning operators can switch between core sizes in under one minute without specialized training or tools.
Can the BSC-R350 be used with thermal transfer and direct thermal label printers? ▾
Yes. The BSC-R350 is designed to operate alongside both thermal transfer and direct thermal label printers. Its auto-sync motor matches the printer's feed rate, preventing web tension problems. Compatible with major printer brands including Zebra, Honeywell, SATO, TSC, and Godex.
Does the BSC-R350 have a preset counter for batch production? ▾
The BSC-R350 features a dual digital counter that simultaneously tracks label quantity and rolled length in meters. This is critical for batch traceability in pharmaceutical and food manufacturing. The counter can be reset between batches for accurate production records.
What label materials is the BSC-R350 compatible with? ▾
The BSC-R350 handles a wide range of substrates: thermal paper, direct thermal paper, pressure-sensitive adhesive labels, polyester (PET) labels, polypropylene (PP) film labels, metallic foil labels, and barcode label stock. The adjustable tension control accommodates both delicate thin films and heavier adhesive stocks.
What is the power requirement and is it suitable for international use? ▾
The BSC-R350 operates on AC 110V or 220V, 50/60Hz, making it compatible with electrical standards across North America, Europe, Asia, and the Middle East. An appropriate country-specific power cord or plug adapter may be required.
Ready to Optimize Your Label Line?
Request a quote, download the full BSC-R350 specification sheet, or speak with a labeling equipment specialist today.
Factory direct · Fast global shipping · Technical support included
