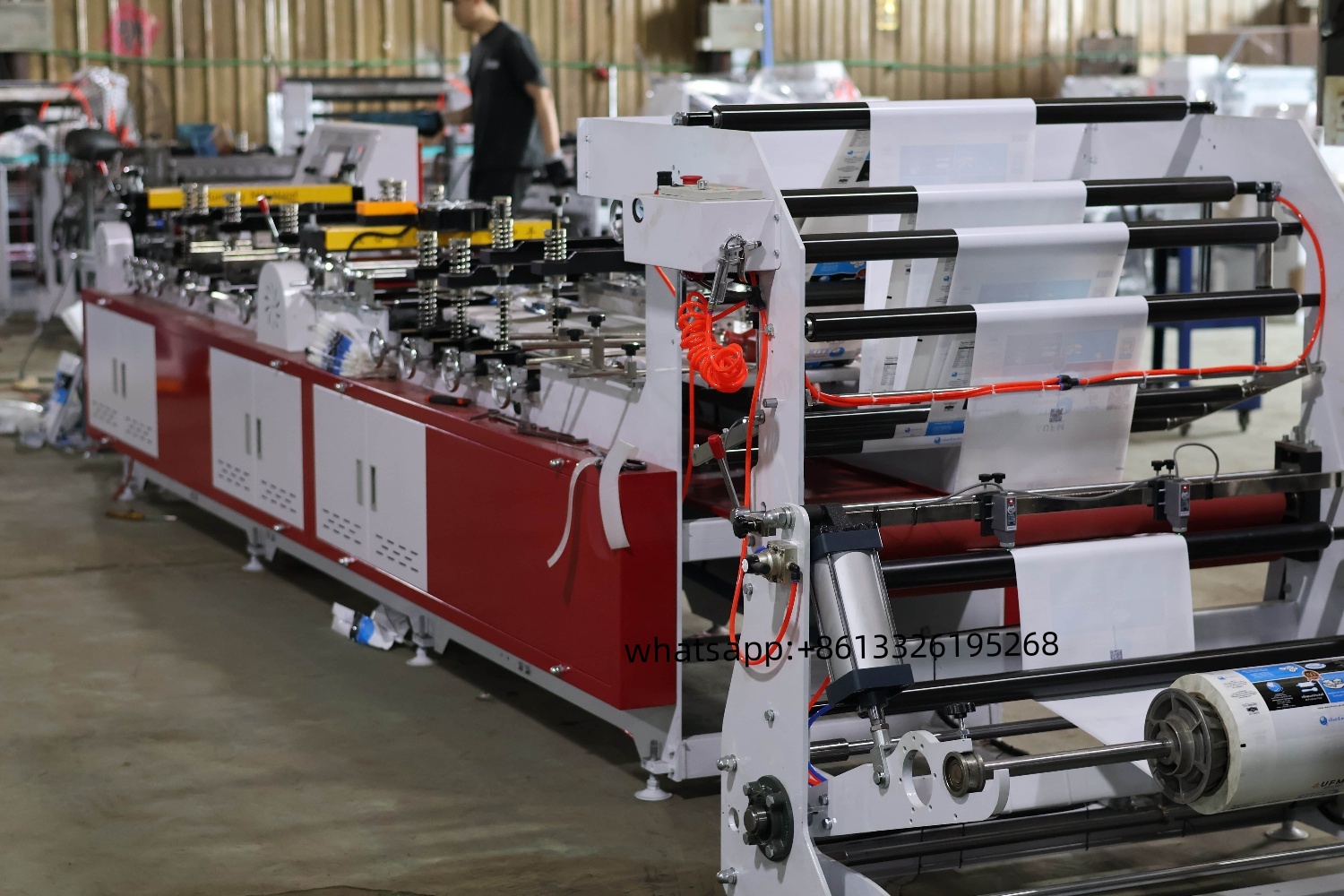

Lap Seal Center Seal Pouch Making Machine – Servo Driven High Speed Solution

Description

This Servo Driven High Speed Center Seal Pouch Making Machine is engineered for precision and performance. It produces Fin Seal and Lap Seal pouches, with or without side gussets, making it ideal for flexible packaging applications across food, pharma, and industrial sectors.

Driven by a servo-controlled indexing system and supported by reliable A.C. motor mechanisms, this machine delivers consistent sealing quality, high-speed operation, and reduced energy consumption. With no need for compressed air, it is a cost-effective and energy-efficient solution for modern pouch production lines.

Key Features and Technical Specifications:

✅ Mechanical Components:

• Unwinding Unit: Equipped with a magnetic powder brake and air shaft
   • Magnetic powder: 2.5KG (China brand)

• Frame: Robust steel plate structure for long-term stability

• Cross-Cutting Tool Holder: Durable casting structure for precise cutting

• Cross-Cutting Knife: Domestic standard blades for economical maintenance

• Drive Shaft: Rubber shaft with slotted surface for better grip

• Hot Knife Sealing:
   • Bottom Seal: Aluminum structure with 2 horizontal heaters + 1 cooler
   • Middle Seal: Vertical ironing knife + 1 vertical cooler + flat press

• Feeding Traction System: Motor-driven pulley powers the traction rubber shaft

✅ Electrical Components:

• Double Servo Motor Drive: 2 × 2KW high-precision motors

• Photoelectric Edge Tracking: Dual sensor alignment system (Zhejiang Julong)

• Control Panel: Independent PLC-based microcomputer system
   • Auto counting
   • Material shortage detection
   • Auto alarm & stop function

• Frequency Drive Traction: Speed adjustable (Shanghai brand)

• Touch Screen Interface: Intuitive and easy-to-use control panel

• Main Motor: 2.2KW (Shanghai)

✅ Performance Parameters:

• Max Film Width: 700mm

• Max Bag Width: 330mm

• Production Speed: Up to 120 bags/min

• Total Machine Weight: 1500kg

Why Choose Our Center Seal Pouch Maker?

• ✅ High-speed Lap Seal & Fin Seal pouch production

• ✅ Servo-driven precision with intelligent control

• ✅ No compressed air required – lower operating cost

• ✅ Ideal for center seal pouches in food & medical packaging

• ✅ Easy maintenance and long machine lifespan

Looking for a high-speed Lap Seal Center Seal Pouch Making Machine?
Contact us now to get a quote or request a demo.

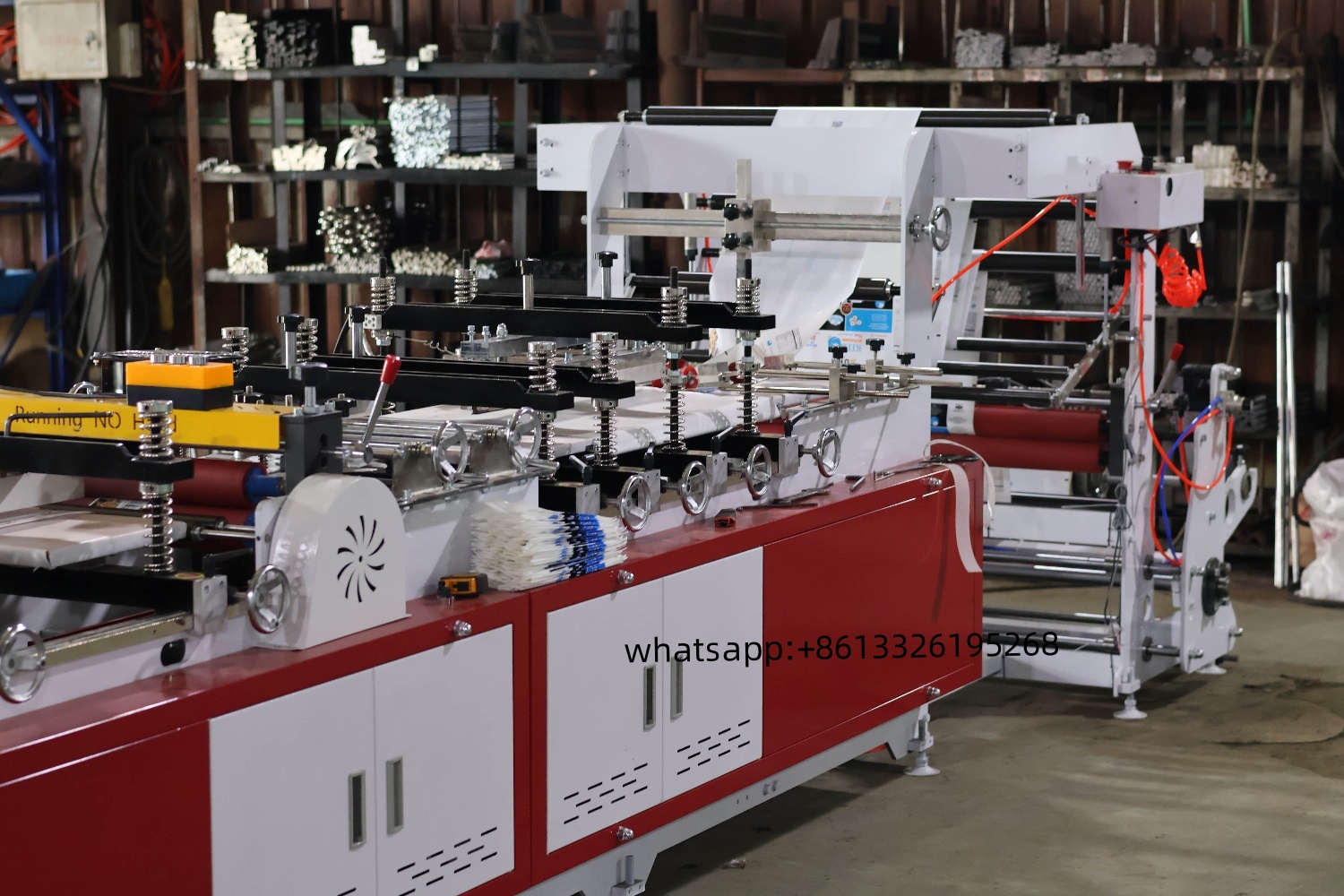

More machine pictures

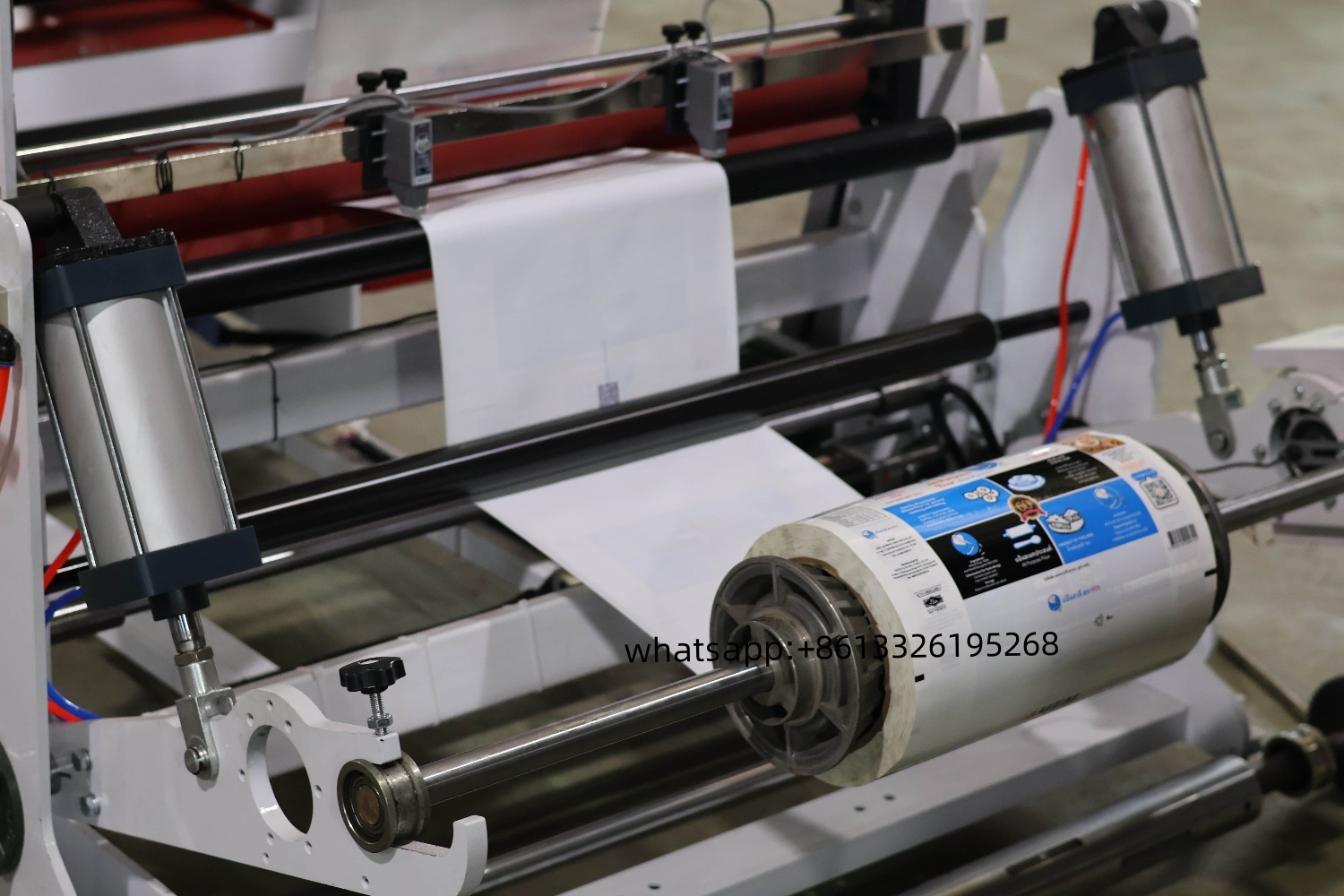

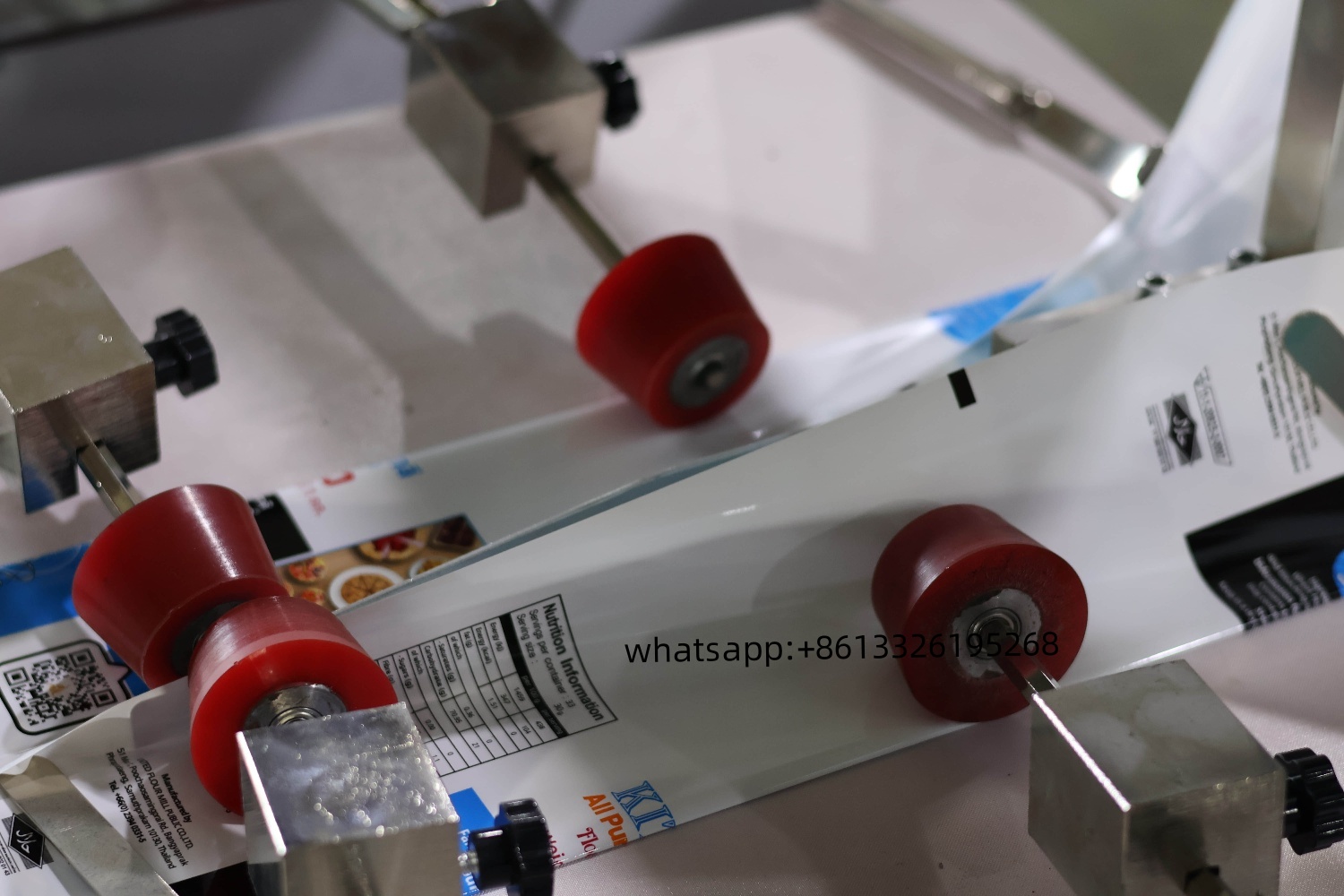

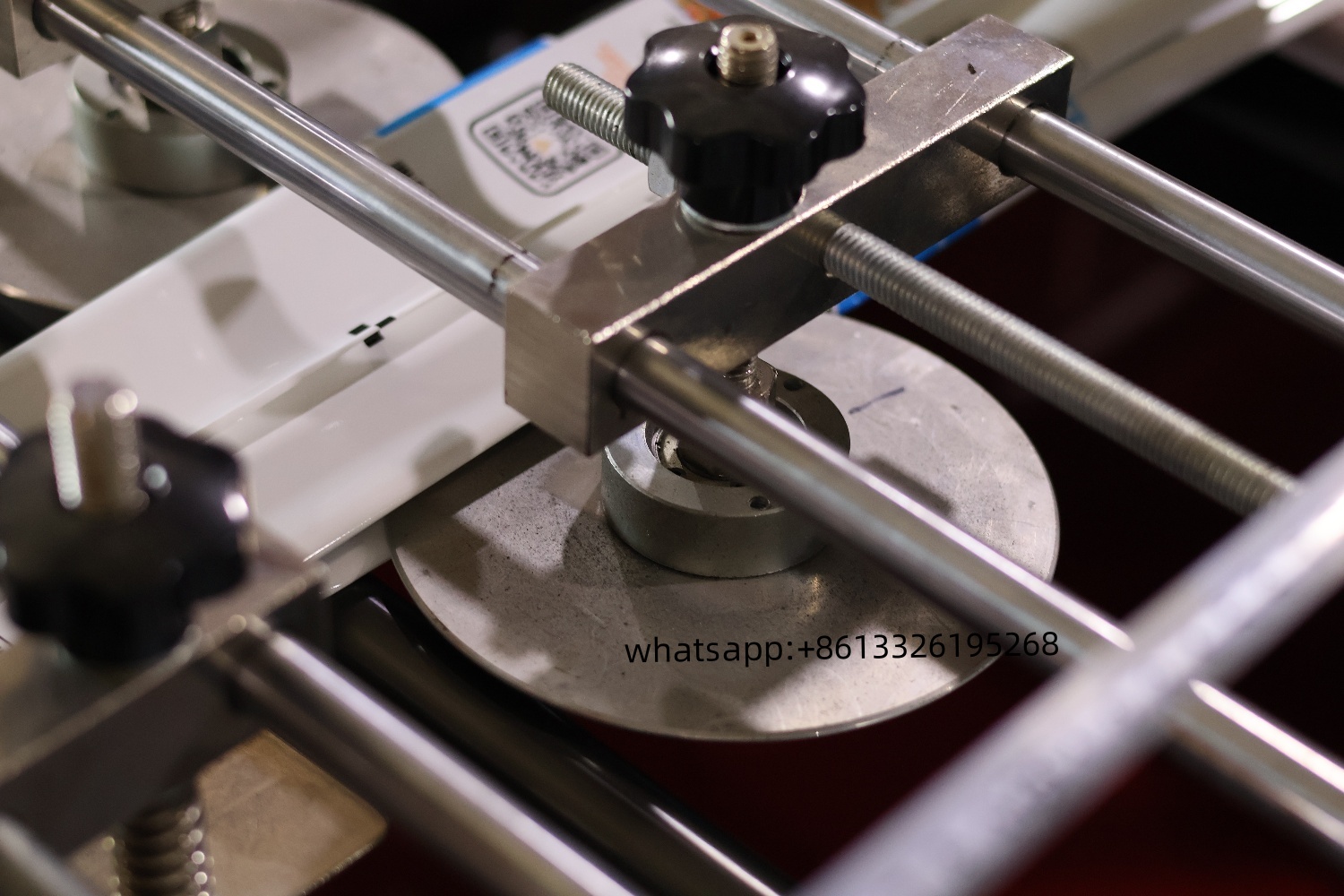

Unwinder with cylinder loading,with double photocell	Central folding

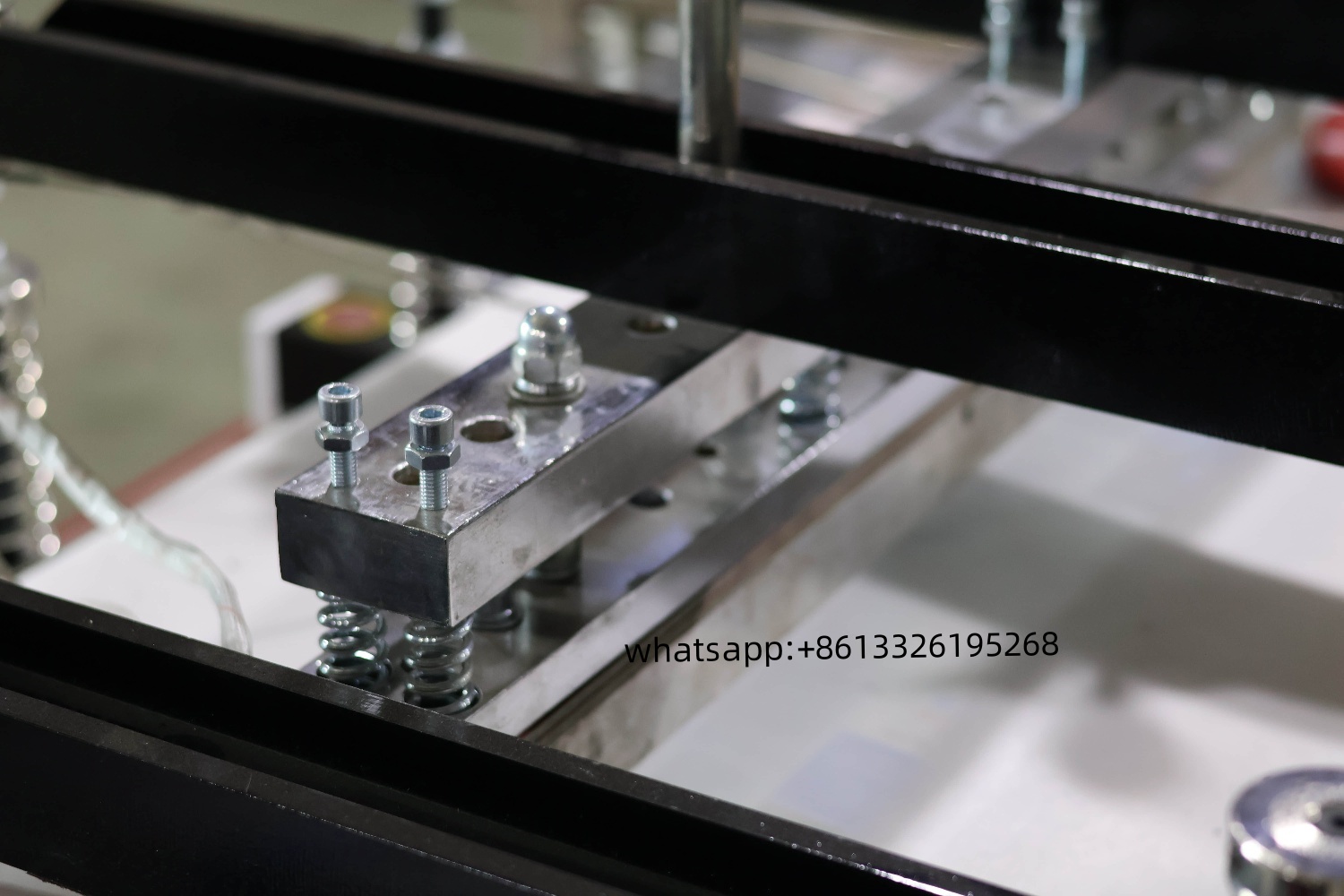

Bag forming

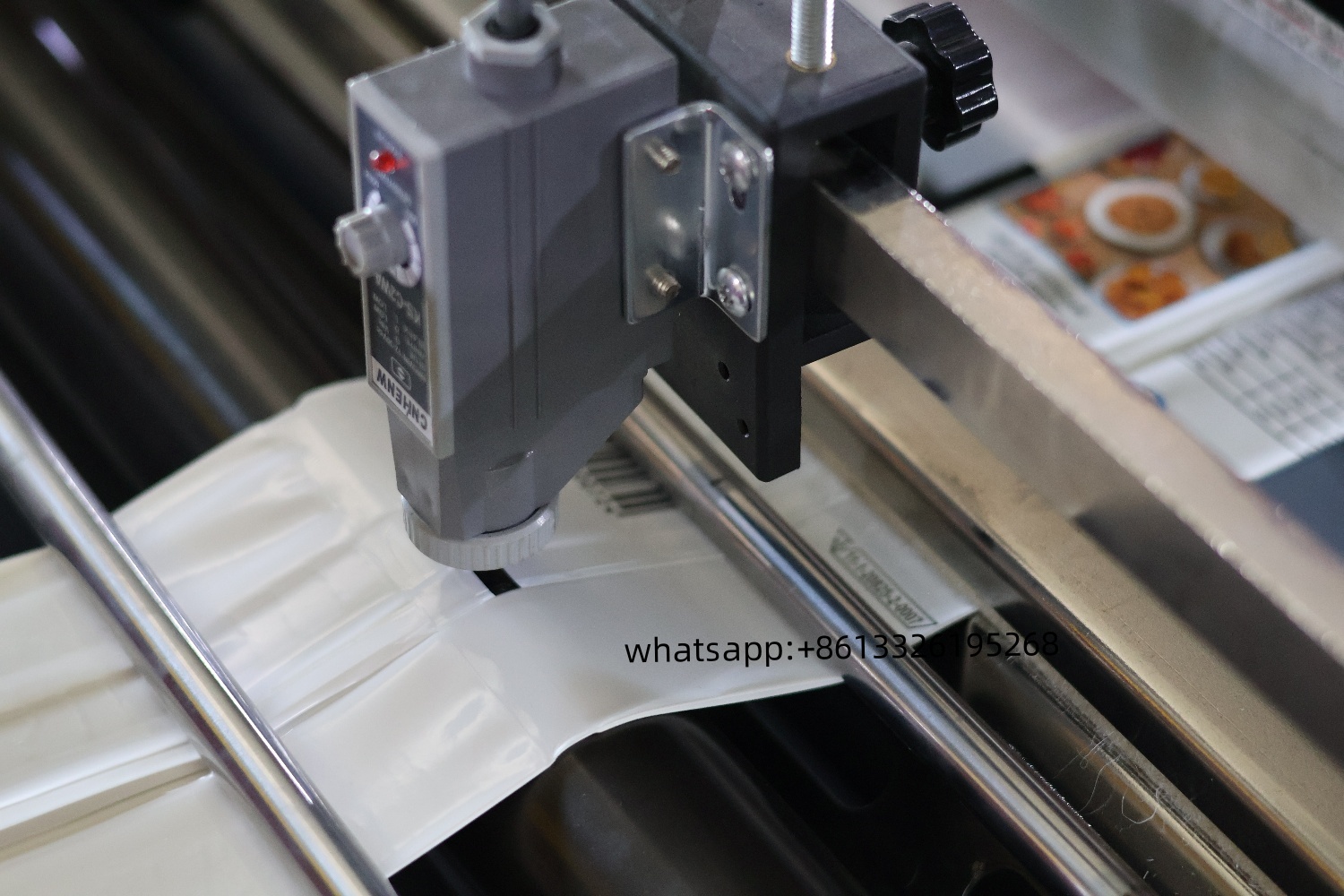

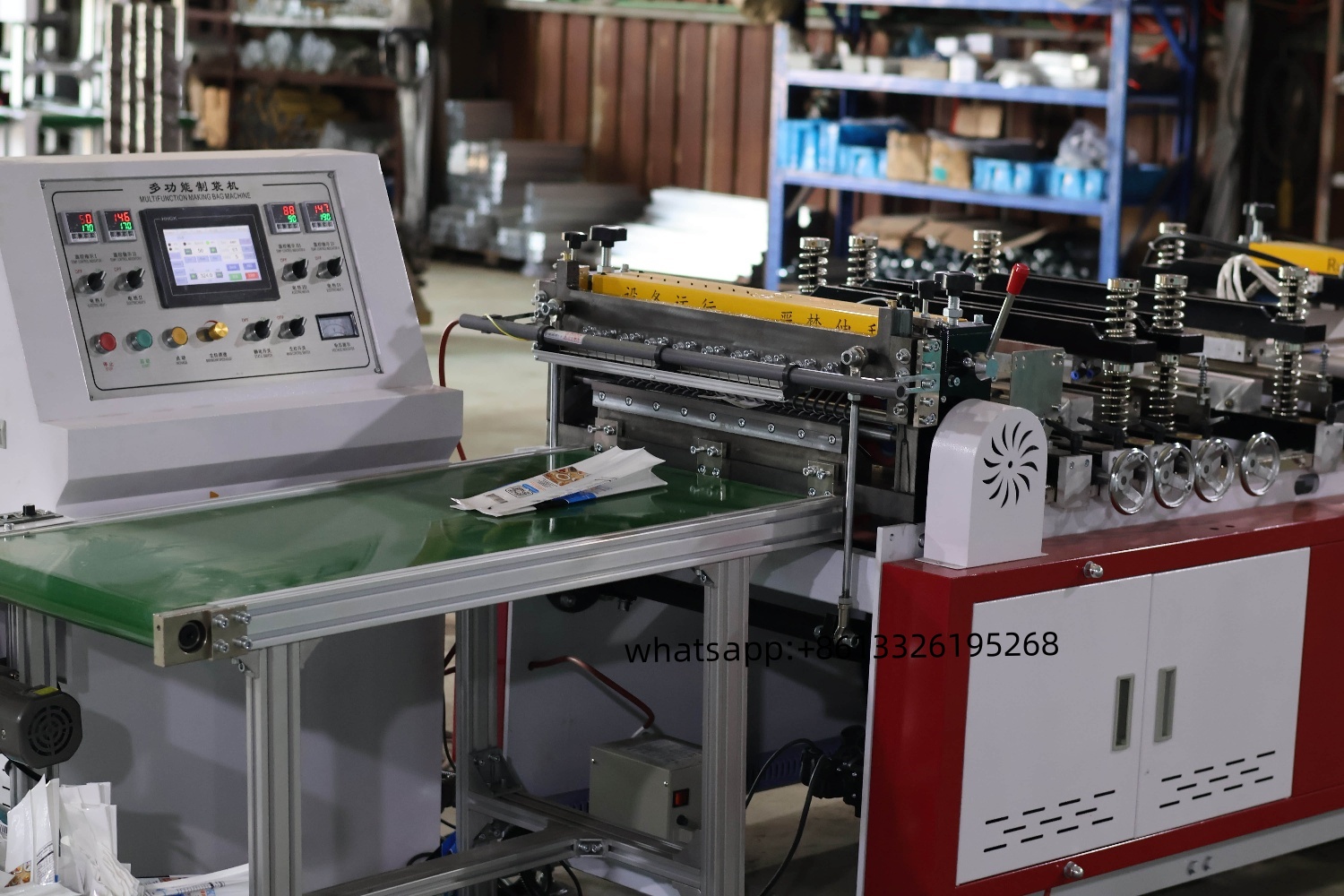

Computer control to set speed,batch	Photocell for tracking printed bag

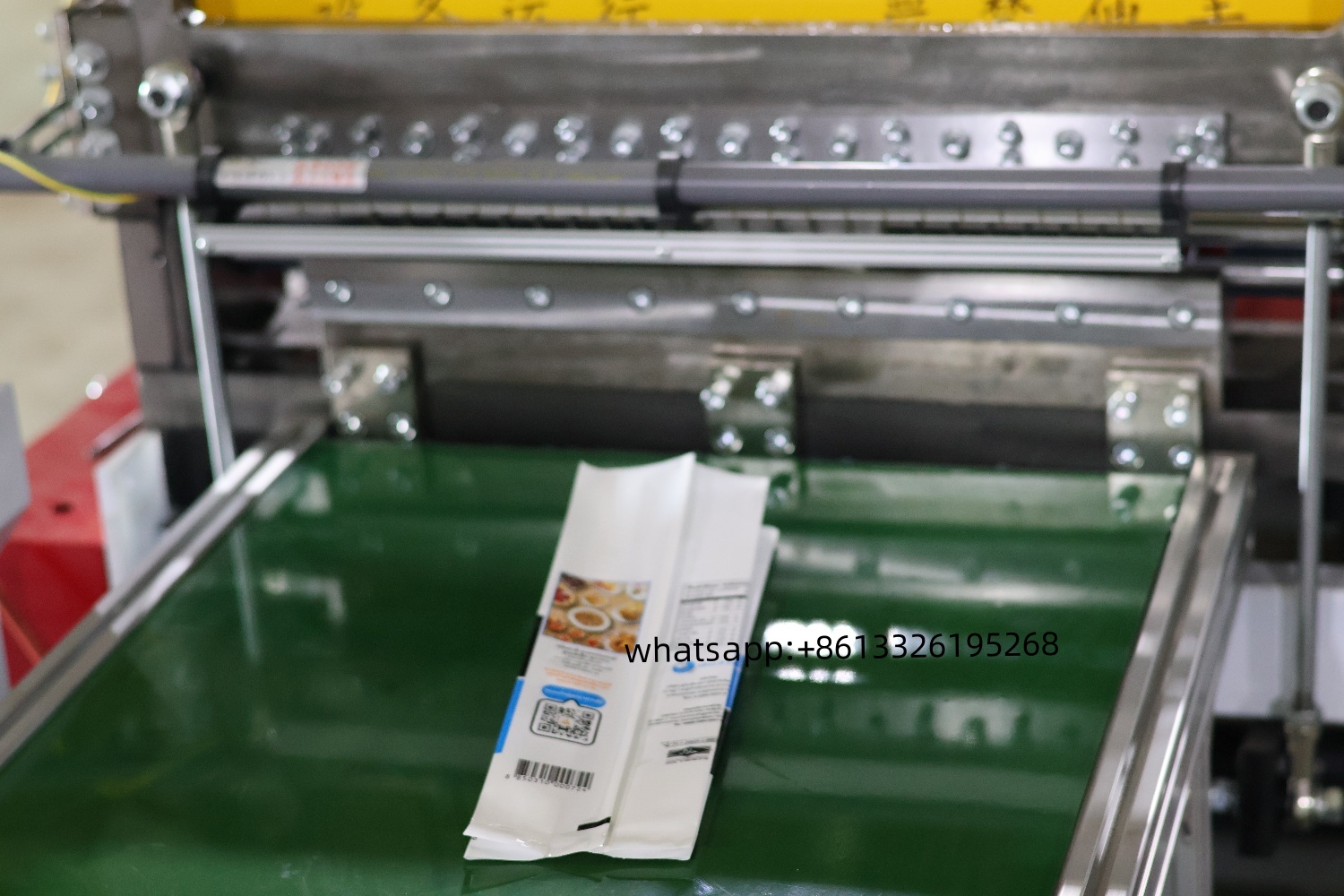

Bag comes out on conveyor belt

Bag Samples
