Description
XUANHAI MACHINE
Food Packaging Machinery · Carton Forming
Hamburger Carton
Forming Machine
— Automatic Burger Box Maker
PLC-controlled, servo-driven precision forming for high-speed fast food packaging lines. 50–200 burger boxes per minute. Single machine, multiple box sizes — just change the mold.
CE Certified ISO 9001 50–200 pcs/min 250–400 gsm Since 1988
Step-by-Step Process

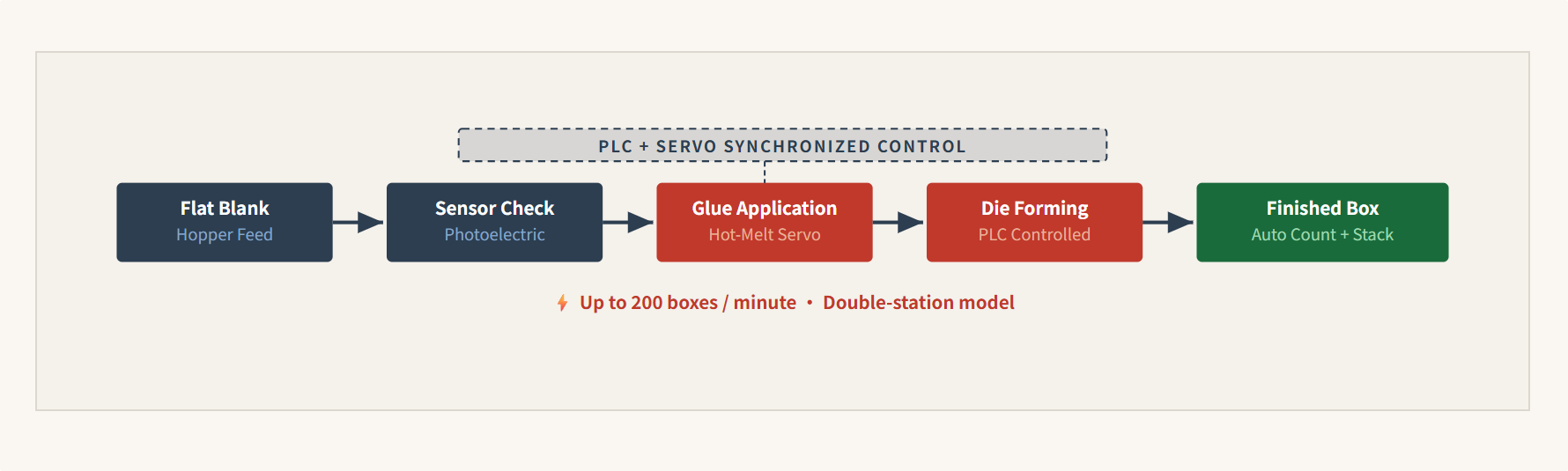

How the Hamburger Carton Forming Machine Works
From flat pre-printed paperboard blank to finished, glued burger box — the entire process is automated, synchronized by PLC and monitored by photoelectric sensors at each station.
Blank Feeding
Vacuum suction cups pick flat carton blanks from the hopper and transfer them to the conveyor with precise registration.
Photoelectric Detection
Inline sensors verify blank position and trigger corrective feedback before the blank enters the forming station.
Hot-Melt Gluing
Servo-timed glue nozzles apply hot-melt adhesive to fold tabs. Fiber positioning ensures ±0.5 mm glue placement accuracy.
Die Forming
The plunger pushes the blank through the forming die, folding all panels into the 3D hamburger box shape in one stroke.
Auto Counting & Stack
Finished boxes are automatically counted (paper tape insert or cylinder thimble method) and neatly stacked for collection.
Technical Data
Full Technical Specifications
Verified technical parameters for Xuanhai's hamburger carton forming machine lineup. Mold change enables one machine to cover multiple box sizes — dramatically reducing CapEx.
| Parameter | ZF-450-B (Semi-Auto) | ZF-800 (Full Auto) | ZF-800PLUS (High Speed) |
|---|---|---|---|
| Production Speed | 20–50 pcs/min | 50–120 pcs/min | 50–200 pcs/min |
| Automation Grade | Semi-automatic | Fully automatic | Fully automatic |
| Drive System | Belt drive | Belt drive | Chain drive (4 servo) |
| Control System | PLC + HMI | PLC + HMI | Microcomputer + PLC |
| Paper Feeding | Manual assist | Vacuum suction | Vacuum suction |
| Gluing System | Hot-melt glue | Hot-melt, auto | Hot-melt, servo-timed |
| Paper Thickness | 250–400 gsm | 250–400 gsm | 250–400 gsm |
| Counting Method | Manual | Auto count | Paper tape insert / cylinder thimble |
| Box Size Range | Mold-dependent | Mold-dependent | Mold-dependent |
| Products | Hamburger boxes, chip boxes, takeout containers, lunch boxes, clamshells | ||
| Certification | CE | CE | CE + ISO 9001 |
| Warranty | 1 Year | 1 Year | 1 Year |
| After-Sales | Online support | Online + on-site | Online + on-site |
* Exact dimensions and electrical specs (voltage, power draw) provided upon inquiry. Custom molds available for non-standard box sizes.
Engineering Advantages
Why Choose Xuanhai's Burger Box Forming Machine?
These aren't just spec checkboxes — each feature represents a deliberate engineering decision that reduces your total cost of ownership and maximizes uptime on the production floor.
4-Servo Independent Motor Control
Each forming station (paper feeding, molding, conveyor, counting) runs on its own servo motor.
This means ±0.5 mm positional accuracy, faster changeover, and zero mechanical coupling failures — a step beyond single-motor belt systems.
PLC + Touchscreen HMI Interface
Microcomputer-integrated PLC with AC frequency converter and full touchscreen control.
Operators set speed, glue volume, and box parameters digitally — no manual cams to adjust.
Error codes display in real time, cutting diagnostic time from hours to minutes.
Vacuum Suction Paper Feeding
Rather than friction-based rollers (which cause misfeeds at high speed), vacuum suction cups grip each blank from the stack cleanly.
Misfeeds drop below 0.1% even at 200 pcs/min — critical for maintaining a continuous fast-food packaging line.
Sealed Bearing Construction
All drive components use high-grade sealed bearings — standard in precision CNC equipment but still unusual in packaging machinery at this price tier.
Result: reduced vibration, longer bearing life, and consistent output quality over multi-shift operations.
Infrared Safety System
Perimeter infrared sensors trigger an immediate halt if a hand or object enters the forming zone.
Meets CE Machinery Directive safety requirements without compromising throughput speed — the safety gate re-arms in under 0.3 seconds.
Quick Mold Changeover
One machine handles burger boxes, chip cups, clamshell containers, and lunch boxes — just swap the mold.
Designed for changeover in under 30 minutes by a single operator,
making it financially viable to serve multiple QSR clients from one production line.
Market Intelligence
Xuanhai vs. Other Hamburger Box Forming Machines
Buyers often compare Xuanhai against Ruian Mingyuan, ALLRAISE, and generic Alibaba OEMs. Here's an honest, feature-for-feature breakdown to help you make the right decision.
| Feature / Criterion | Xuanhai ZF-800PLUS | Generic OEM (Alibaba) | ALLRAISE Full-Servo | Semi-Auto (Budget) |
|---|---|---|---|---|
| Max Speed | 200 pcs/min | 60–80 pcs/min | 200+ pcs/min | 30–50 pcs/min |
| Servo Motor Drive | ✓ 4 independent | ✗ Belt only | ✓ Full servo | ✗ No |
| PLC + Touchscreen HMI | ✓ Imported brand | ✗ Basic relay | ✓ | ✗ |
| Vacuum Suction Feeding | ✓ | ✗ Friction roller | ✓ | ✗ |
| Auto Counting Device | ✓ Non-destructive | Partial | ✓ | ✗ Manual |
| CE Certification | ✓ | Self-declared only | ✓ | Varies |
| Multi-size (mold change) | ✓ <30 min | Limited | ✓ | Partial |
| Manufacturer Since | 1988 (36 yrs) | Unknown | ~2010 | — |
| Price Tier | Mid-premium | Low | Premium | Low |
| Best For | Mid–large QSR lines, multi-format ops | Trial / low volume | Enterprise 24/7 lines | Seasonal / startup |
Use Cases
Products This Machine Can Form
One machine, multiple outputs — change the mold to switch product types in under 30 minutes.
Hamburger Box
Clamshell & tuck-top burger boxes
Chip / Fry Box
Taper-form containers for fries & chips
Takeout Container
Hinged-lid food delivery boxes
Clamshell Box
Salad / snack clamshell packaging
Business Case Tool
Estimate Your Daily Output
Use the calculator to estimate how many burger boxes your line can produce per shift — and what that means for your operation's throughput capacity.
90%
Estimated Daily Output
—
Frequently Asked Questions
Everything You Need to Know Before Buying
What is the production speed of the Xuanhai hamburger carton forming machine? +
The double-station ZF-800PLUS model reaches 50–200 pieces per minute, automatically counted via a non-destructive paper tape insert or cylinder thimble device. The standard ZF-800 produces 50–120 pcs/min. Actual throughput depends on box size, paper thickness, and glue set time.
What paper weight (gsm) is compatible with this burger box making machine? +
The machine handles kraft paper and PE-coated paperboard in the 250–400 gsm range, which covers virtually all food-grade hamburger box blanks on the market. Please specify your exact substrate when requesting a quote so we can confirm glue nozzle and mold compatibility.
Can one machine produce different box sizes without purchasing additional machines? +
Yes — this is one of the key commercial advantages of the ZF series. By changing the mold, a single machine produces hamburger boxes, chip boxes, clamshell containers, and lunch boxes in various dimensions. Changeover takes a trained operator under 30 minutes. Custom molds are available for non-standard sizes.
What certifications does this carton forming machine carry? +
Xuanhai hamburger carton forming machines are CE certified (EU Machinery Directive) and manufactured under ISO 9001 quality management standards. CE certification is verified — not self-declared — making these machines suitable for direct import into the EU, UK, and other regulated markets.
What is the difference between belt drive and chain drive on these machines? +
Belt drives are common in lower-cost machines and work well at moderate speeds, but belts stretch, slip, and wear under sustained high-speed and high-load operation, increasing after-sales maintenance costs. The ZF-800PLUS uses chain drive, which maintains consistent tension and timing even at 200 pcs/min continuous operation — making it the right choice for production lines running two or three shifts.
What after-sales support does Xuanhai provide? +
Xuanhai provides a 1-year warranty and offers both online technical support and on-site service. With over 30 dedicated after-sales professionals and an engineering team of 20+ specialists since 1988, we support customers across 50+ countries. Spare parts (including imported-brand electrical components) are stocked for rapid dispatch.
Is this machine suitable for a startup fast-food packaging business? +
The ZF-450-B semi-automatic model is well-suited for startups and seasonal demand operations — it allows manual blank feeding but automates the folding and gluing steps, significantly reducing labor while keeping upfront investment lower. For operations running 10+ hours per day, the fully automatic ZF-800 or ZF-800PLUS will deliver better ROI within the first 12–18 months.
Ready to Upgrade Your Burger Box Production Line?
Talk to our packaging machinery engineers. Get a customized quote with mold specifications, delivery timeline, and ROI estimate — within 24 hours.
Request a Quote
