Long Arm Glove Making Machine — Veterinary & Industrial Grade
Description
Plastic Bag Making Machine Series

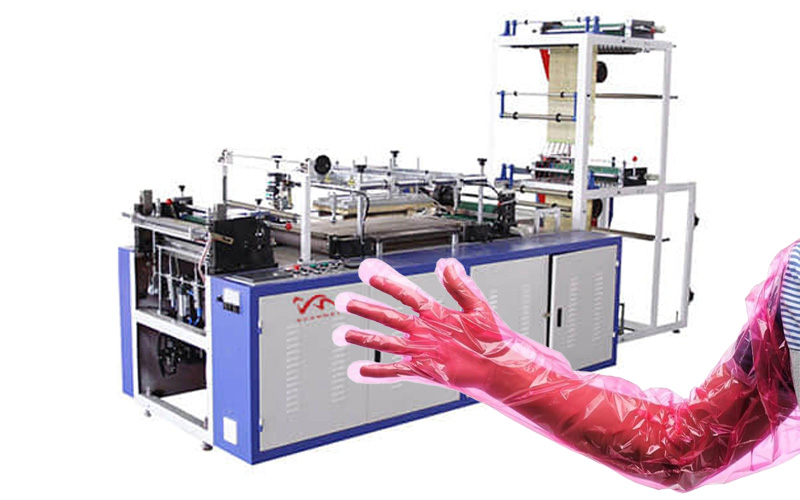

Long Arm Glove Making Machine
— Veterinary & Industrial Grade
Fully automatic PE / CPE / EVA long-sleeve disposable glove production line. Arm length up to 1000 mm · 60–120 pcs/min · CE certified · Factory direct since 1988.
✔ PE / CPE / EVA Compatible ✔ Up to 1000 mm Arm Length ✔ Servo Motor Precision ✔ CE Certified ✔ 1-Year Warranty
Product Overview
What Is a Long Arm Glove Making Machine?

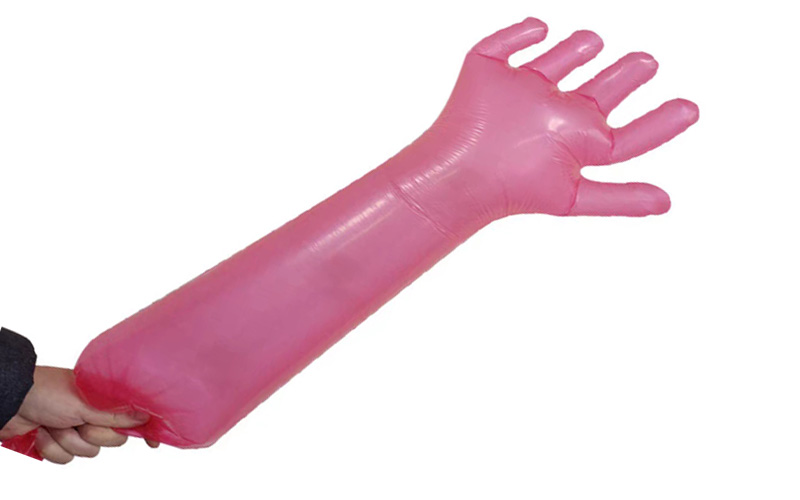

A specialized automatic plastic glove production system engineered to manufacture extra-long sleeve gloves — reaching from the hand all the way up the forearm or shoulder — used in veterinary, agricultural, chemical, and food-processing sectors.
Unlike standard disposable PE hand gloves, long-arm sleeve gloves require a fundamentally different forming die geometry, film tension calibration, and sealing path length. XUANHAI's XH-ARM series arm glove making machine is purpose-engineered for this geometry, producing gloves with arm coverage from 400 mm up to 1000 mm — far exceeding the capability of conventional short-glove equipment.

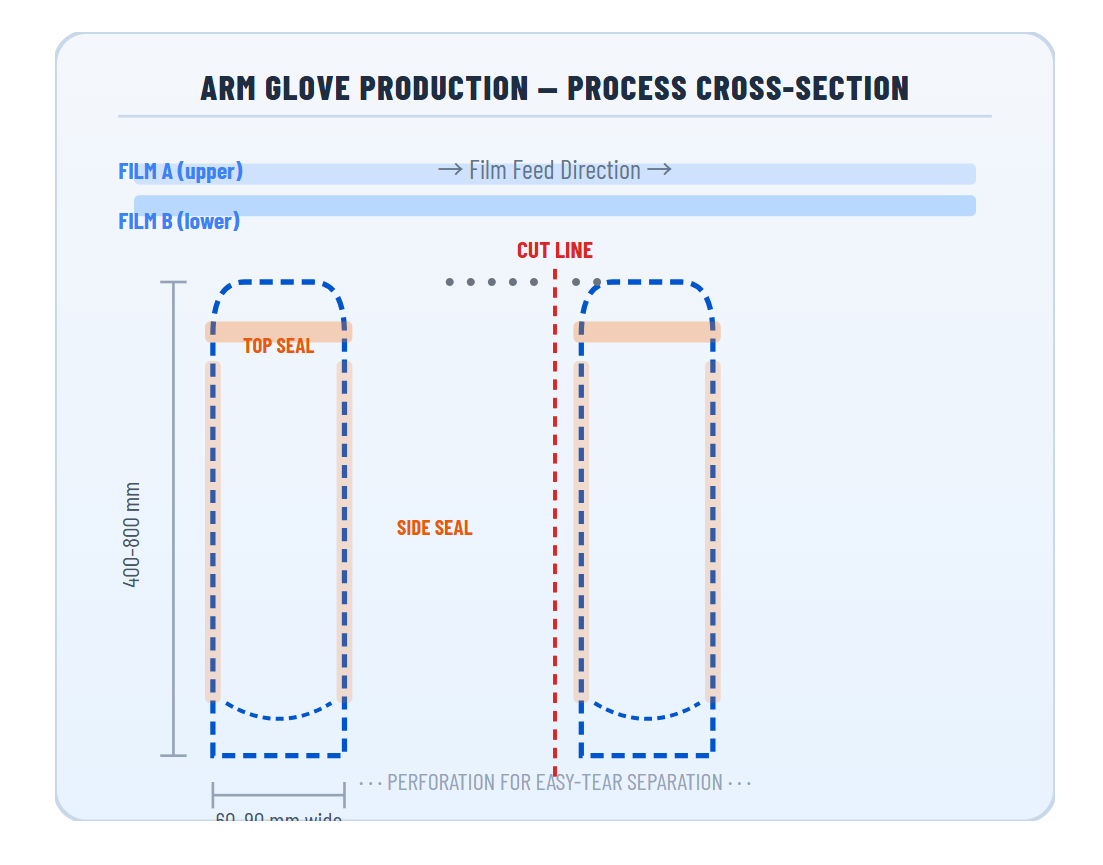

The machine operates as a continuous heat-seal-and-cut production line: dual-layer PE, CPE, or EVA film rolls are unwound, guided over precision molds, ultrasonically or thermally sealed along the glove contour, perforated, cut, and stacked — all in a single automated pass with no manual intervention.
Key differentiator: XUANHAI's proprietary long-mold alignment system maintains ±0.3 mm seam consistency across arm lengths up to 800 mm, eliminating the seam drift common in competitor machines that were originally designed for short gloves and later retrofitted for arm-length production.
The integrated servo motor drive system controls film feed with high repeatability, while a PLC touchscreen interface (available in English, Chinese, Spanish) allows operators to switch between glove length presets in under 2 minutes — critical for manufacturers serving multiple market segments from one production line.
Market Applications
Who Uses Long-Arm Disposable Gloves?
Understanding the end market is essential for configuring the right machine. Long-arm sleeve gloves serve demanding professional environments where hand-only gloves provide insufficient protection.
Veterinary Medicine
Rectal palpation, pregnancy examination, artificial insemination of cattle, horses, and swine. Arm-length coverage is mandatory for hygienic animal husbandry practice.
Food Processing
Whole-arm contamination prevention in meat packing, seafood processing, and bulk food handling — compliance with HACCP and food-safety regulations.
Chemical & Industrial
Protection from corrosive liquids, solvents, and industrial chemicals during mixing, filling, and maintenance operations in manufacturing plants.
Beauty & Hair Dye
Long-sleeve coverage protects the forearm from hair dye chemicals, bleach, and chemical treatments used in professional salons.
Agriculture & Pesticide
Spraying pesticides, herbicides, and fertilizers — long-arm gloves prevent absorption of agrochemicals through the skin during field operations.
Paint & Coatings
Automotive refinishing, industrial painting, and maintenance coating operations where solvent-based paints contact the forearm.
Manufacturing Process

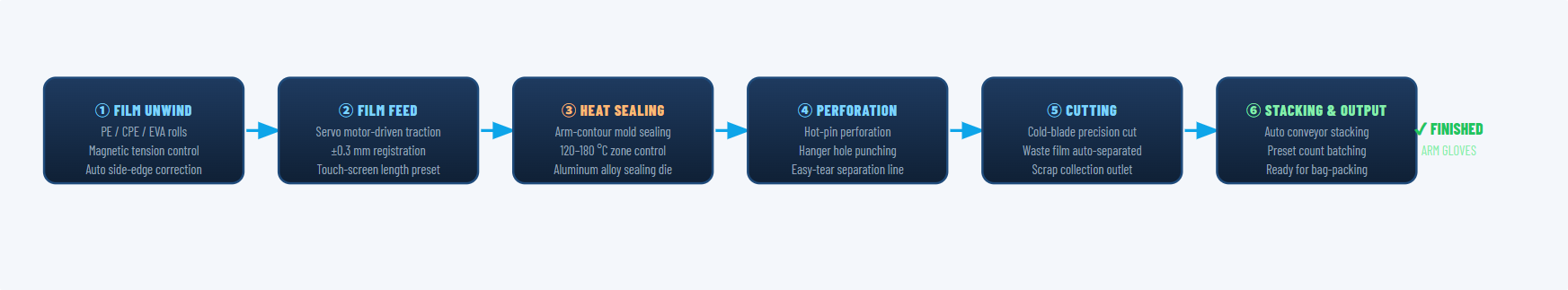

How the Arm Glove Machine Works — Step by Step
A transparent production flow helps procurement engineers and factory managers evaluate machine integration requirements before purchase.
Technical Data
Machine Specifications — XH-ARM Series
All specifications below reflect the standard production configuration. Custom mold dimensions, dual-lane options, and extended arm-length configurations are available on request.
| Parameter | Specification | Notes |
|---|---|---|
| Model | XH-ARM Series (customizable) | Single-lane standard; dual-lane optional |
| Compatible Materials | PE (LDPE / HDPE), CPE, EVA | Biodegradable film on request |
| Film Thickness | 0.012 – 0.035 mm | Optimized for CPE at 0.018–0.025 mm |
| Max Unwind Roll Diameter | Ø 600 mm | Air-expansion shaft, pneumatic brake |
| Arm Length (Glove) | 400 – 1000 mm | Custom molds available beyond 800 mm |
| Glove Width | 50 – 120 mm (at wrist) | Die-changeable in < 15 min |
| Production Speed | 60 – 120 pcs/min | Varies with glove length & film type |
| Sealing Temperature | 120 – 180 °C | PID auto-regulation, ±2 °C stability |
| Drive System | Servo motor + PLC touchscreen | Yaskawa / Panasonic servo standard |
| Power Supply | 3-phase, 380V / 50Hz | 220V / 60Hz available on order |
| Total Power | 5.5 – 7.5 kW | Actual consumption ~60% of rated |
| Machine Dimensions | approx. 3800 × 1100 × 1900 mm | Varies by configuration |
| Machine Weight | approx. 1200 – 1500 kg | — |
| Certification | CE | Documentation provided for import customs |
| Warranty | 1 year | Free key spare parts included |
* Specifications subject to variation depending on final configuration. Contact XUANHAI for a formal quotation and engineering sheet.
Competitive Analysis
XUANHAI vs. Generic Arm Glove Machines — Feature Comparison
Many buyers discover critical limitations only after receiving their machine. This comparison is based on documented customer feedback and publicly available competitor product sheets.
| Feature | XUANHAI XH-ARM | Typical Generic Machine | Why It Matters |
|---|---|---|---|
| Max arm glove length | ✔ Up to 1000 mm | △ Often ≤ 600 mm | Veterinary insemination gloves require ≥ 700 mm |
| Seam registration accuracy | ✔ ±0.3 mm | △ ±1.0–2.0 mm (typical) | Poor registration causes weak seals and glove failure |
| Servo motor drive | ✔ Standard (Yaskawa/Panasonic) | ✗ Often stepper motor only | Servo = consistent speed, lower waste at film start/stop |
| CPE film compatibility | ✔ Fully tested | △ PE only in many models | CPE is standard for high-quality veterinary gloves |
| Mold change time | ✔ < 15 minutes | △ 30–60+ minutes | Fast changeover enables multi-product factory runs |
| PLC touchscreen (multilingual) | ✔ EN / ZH / ES | △ Chinese-only common | Critical for overseas operators without Chinese engineers |
| CE certification | ✔ Yes | ✗ Often absent | Required for EU / North American import compliance |
| After-sales technical support | ✔ Lifetime (video + on-site) | △ Limited / paid service | Reduces downtime cost significantly |
| Biodegradable film option | ✔ Available on order | ✗ Rarely supported | Growing regulatory demand for eco-compliant gloves in EU |
Engineering Detail
7 Engineering Advantages of the XH-ARM Machine
Behind every specification lies a design decision. Here is what XUANHAI's engineering team optimized — and why it directly impacts your production economics.
Proprietary Long-Mold Alignment
XUANHAI's extended mold guide rail maintains lateral film position with ±0.3 mm precision across the full 800 mm arm length — a stability that standard short-glove machines physically cannot achieve at arm scale.
PID Temperature Zoning
Three independently controlled heating zones (entry / mid-arm / wrist) allow different temperatures for different sections of the sealing die, solving the common problem of under-sealing at the wrist curve while over-heating the straight arm seam.
Real-Time Production Counter
The PLC touchscreen displays cumulative piece count, current cycle speed, and batch-preset progress. Operators can set auto-stop at a target count for packaging convenience — no manual tallying required.
Automatic Scrap Separation
Waste film (the inter-glove skeleton after cutting) is continuously pulled away and coiled at the scrap outlet. Finished gloves and waste never mix on the output conveyor — eliminating manual sorting and enabling direct packaging.
Aluminum Alloy Sealing Die
High-conductivity 6061-T6 aluminum alloy molds provide faster heat transfer and more uniform sealing than steel alternatives, reducing cycle time and extending die service life beyond 50 million seal cycles under normal operation.
Single-Operator Production
Fully automatic from film roll loading to finished glove stacking. One operator can supervise the complete production cycle including roll changes, dramatically lowering the labor cost per 1,000 gloves compared to semi-automatic alternatives.
Biodegradable Film Ready
The sealing parameter range (120–180 °C with PID fine-tuning) accommodates emerging biodegradable PE film formulations that typically require tighter temperature windows than conventional HDPE — positioning buyers ahead of EU Single-Use Plastics Directive compliance requirements.
Buyer's Business Case

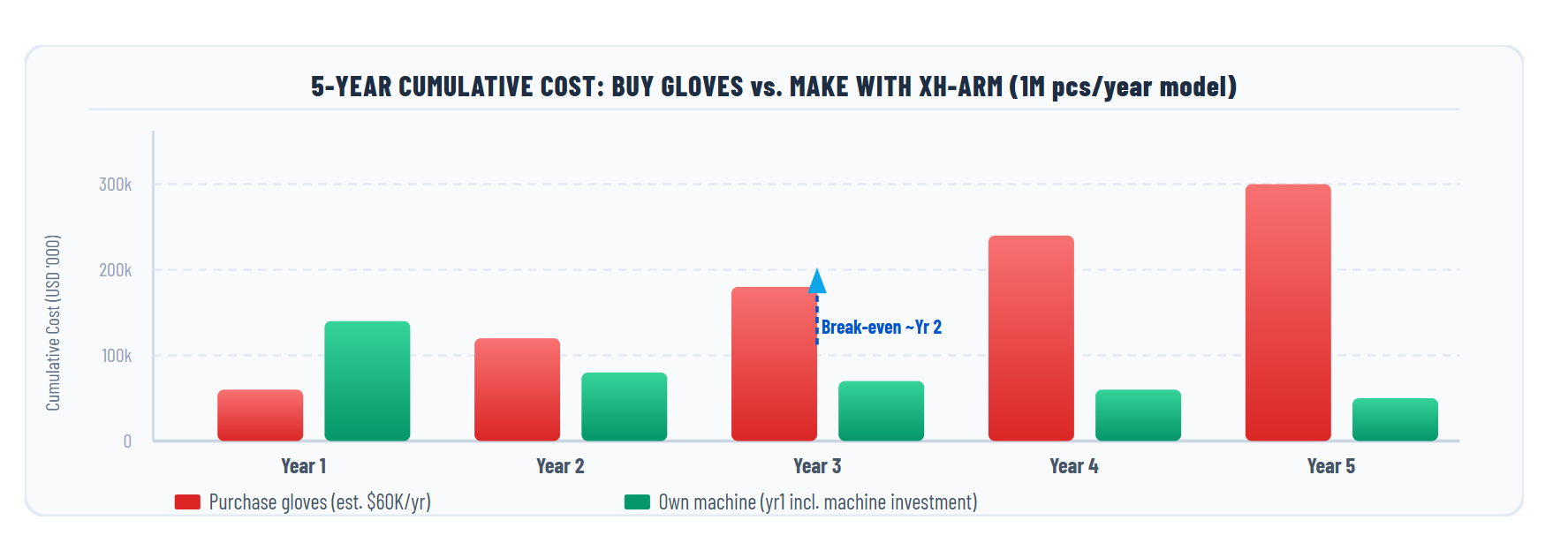

Production Economics: Why Buyers ROI in Under 12 Months
A conservative production model shows how the XH-ARM machine compares to outsourced glove purchasing for a mid-size veterinary supply distributor.
Illustrative model assumptions: 1,000,000 pcs/year production volume · Purchase price $0.06/pc · In-house production cost $0.018/pc (film + electricity + labor amortized) · Machine investment $30,000–$50,000. Actual figures vary by market; request a customized ROI calculation from our sales team.
Frequently Asked Questions
Common Questions About Arm Glove Making Machines
- What is the difference between an arm glove machine and a standard PE glove machine? ▼A standard PE glove machine produces hand-length gloves (typically 200–350 mm). An arm glove machine uses an extended sealing die and a longer film path to produce gloves that cover the entire forearm or arm — from 400 mm up to 800 mm. The mold geometry, film tension system, and heating zone configuration are fundamentally different; a standard glove machine cannot be adapted to arm-length production without major redesign.
- What film materials are compatible with the XH-ARM machine? ▼The XH-ARM series is tested and optimized for PE (both LDPE and HDPE), CPE (cast polyethylene, the standard material for veterinary gloves), and EVA (ethylene-vinyl acetate, for softer applications). Film thickness range is 0.012–0.035 mm. Biodegradable PE formulations are supported with parameter adjustment — contact us with your film specification for a compatibility assessment.
- How long does installation take, and do you provide training? ▼Most customers commission the machine within 1–3 days via remote video guidance (WhatsApp / WeChat / Zoom). We provide a comprehensive video tutorial library covering installation, parameter setup, die change, and common troubleshooting. On-site commissioning by our engineers is available for an additional fee and is recommended for first-time glove machine operators. All machines ship with a full manual in English and Chinese.
- Can one machine produce both regular hand gloves and long arm gloves? ▼Yes — the XH-ARM is designed for fast die changeover (<15 minutes). By swapping the forming mold and adjusting PLC length parameters, the same machine can produce hand gloves (200–350 mm), elbow gloves (400–600 mm), and full-arm gloves (600–800 mm). This flexibility is a key reason why mid-size glove manufacturers prefer the XH-ARM over single-purpose machines.
- What are the shipping and lead times from your factory in Ruian? ▼Standard lead time is 25–35 days from receipt of down payment. The machine ships FOB Ningbo or Shanghai by sea freight in a standard 20' container (single machine) or 40' container (with accessories and spare parts). We provide a complete set of export documents including commercial invoice, packing list, COO, and CE certificate for customs clearance.
- What certifications does the machine carry? Is it suitable for EU or US markets? ▼The XH-ARM series carries CE certification (Machinery Directive 2006/42/EC), which is recognized for import and use in the European Union and accepted by most other markets. For US FDA-regulated glove production, the machine itself does not require FDA clearance — only the gloves produced may require FDA registration depending on the intended use (food-contact vs. medical-grade). We can provide CE documentation for your customs broker upon request.
