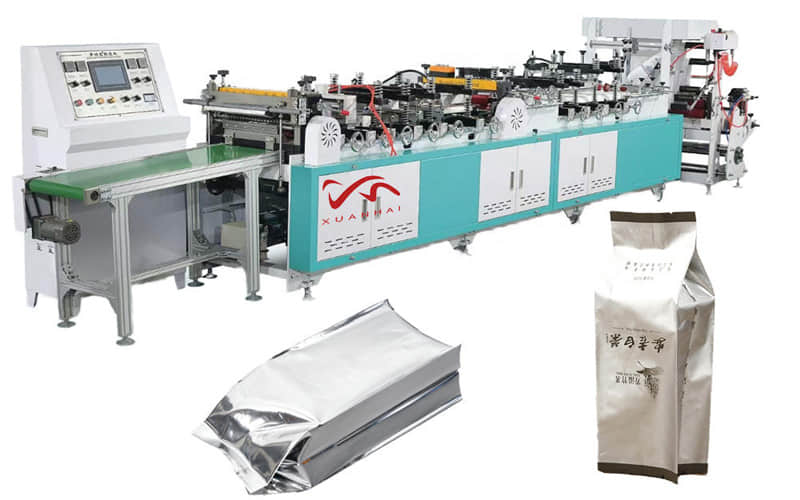

# MJ-350A Laminated Bags Making Machine: The Ultimate High-Speed Center Seal Pouch Manufacturing Solution
## Introduction
In the rapidly evolving flexible packaging industry, the demand for high-speed, precision-engineered bag-making machines has never been greater. The **MJ-350A laminated bags making machine** stands at the forefront of this technology, offering manufacturers a fully automatic, servo-driven solution for producing center seal laminated film bags with exceptional efficiency and reliability.
Manufactured by Ruian Xuanhai Machine Manufacturer, a company with over 35 years of industry expertise and CE certification across 30+ export markets, the MJ-350A represents the gold standard in center seal pouch production. This comprehensive guide explores every aspect of this remarkable machine — from its technical specifications and key features to its diverse applications and why it outperforms competing solutions in the laminated bags market.
---
## What Is a Laminated Bags Making Machine?
A laminated bags making machine is a precision-engineered system designed to convert rolls of flexible film — including aluminum foil laminates, BOPP, PET, nylon, and other heat-sealable composites — into finished, retail-ready pouches. Unlike form-fill-seal (FFS) machines that package products directly, the MJ-350A produces **open-top bags** ready for downstream filling lines, making it ideal for bag converters, flexible packaging plants, and contract packagers.
The MJ-350A is a **roll-fed, form-seal-cut machine**: it draws raw film from the unwind reel, forms it into the target bag shape, applies precision heat seals, and cuts individual pouches — all in one continuous, automated pass.
---
## MJ-350A Technical Specifications
| Specification | Detail |
|---|---|
| **Model** | MJ-350A |
| **Bag Type** | Center Seal / Middle Seal / Pillow Pouch |
| **Max. Bag Width** | 350 mm |
| **Bag Length Range** | 50–300 mm (standard); up to 500 mm with skip-seal function |
| **Production Speed** | 80–120 bags/min (standard); up to 200 bags/min for BOPP 50μm film |
| **Film Thickness** | 0.04–0.15 mm |
| **Applicable Materials** | PET/PE, BOPP/PE, NY/PE, Aluminum Foil, Paper Laminates, CPP, OPP |
| **Sealing Type** | Center Seal + Optional Bottom Seal |
| **Temperature Control** | Intelligent PID Control (±1°C precision) |
| **Drive System** | Dual Servo Motor Drive (2 × 2kW) |
| **Total Power** | 7.5 kW |
| **Power Supply** | 380V / 50Hz / 3 Phase |
| **Machine Dimensions** | 4200 × 1300 × 1800 mm |
| **Net Weight** | 1500 kg |
---
## Key Features of the MJ-350A Laminated Bags Making Machine
### 1. Dual Servo Drive System
The MJ-350A is equipped with **two independent 2kW servo motors** that work in perfect synchrony: one governs film feeding while the other controls the sealing cycle. This dual-servo configuration eliminates the speed-versus-accuracy trade-off common in single-servo or stepper-motor machines.
For thin films like 50-micron BOPP — which are highly sensitive to heat and tension — the closed-loop servo system maintains film tension to **±0.1N precision**, keeping defect rates below 0.5% even at speeds up to 180 bags/min. In contrast, standard stepper-motor machines often experience micro-stretching that leads to wavy seals and rejection rates above 3–5%.
### 2. PID Temperature Control with ±1°C Precision
Temperature stability is critical when working with laminated films. The MJ-350A's **PID (Proportional-Integral-Derivative) control loop** maintains sealing temperature within **±1°C** even at maximum production speeds. This precision prevents:
- **Cold seals** that compromise bag integrity
- **Burn-through** that destroys thin laminates
- **Film distortion** on sensitive multilayer materials
The optimal sealing jaw temperature range for the MJ-350A is 120–160°C, depending on the specific film composition.
### 3. Intelligent Microcomputer Control System
The machine features an advanced **PLC (Programmable Logic Controller) system** with a user-friendly HMI (Human-Machine Interface) touchscreen. This enables:
- Accurate data input and seamless parameter adjustment
- Auto-counting with batch alarm functionality
- Automatic stop on material shortage
- Variable frequency drive for speed optimization
### 4. Photoelectric Tracking System
High-precision photoelectric sensors ensure **accurate sealing and cutting positions** with minimal waste. The system provides:
- Zero-drift print registration for color-printed films
- Edge correction for misaligned rolls
### 5. Multi-Station Heat Sealing
With **four sealing stations**, the MJ-350A delivers consistent sealing strength across different laminated and composite materials. The bottom seal process uses dual heat stations (heat + cooling) to press and cool the seal before cross-cutting.
### 6. Skip-Seal Function for Long-Format Bags
Unlike basic machines locked to one pouch per cycle, the MJ-350A's **skip-seal function** enables production of long-format pouches — for example, a 270mm bag from a 30mm feed pitch — making it ideal for oversized contents.
### 7. Durable Construction
Built with a **heavy-duty steel frame** and premium components, the MJ-350A ensures long-term stability and vibration-free performance even at continuous high-speed operation.
---
## Production Process: 5 Precision Stages
Understanding the workflow helps evaluate how the MJ-350A fits into a production line:
| Stage | Description |
|---|---|
| **1. Unwinding** | Laminated film unrolls via magnetic powder brake tension control with dual photocell edge correction |
| **2. Folding** | Film is folded centrally into back-seal, fin-seal, or lap-seal format without mechanical retooling |
| **3. Longitudinal Sealing** | PID-controlled heated blade seals the center seam while servo maintains print registration |
| **4. Bottom Seal & Cut** | Dual heat stations press and cool the bottom seal before cross-cut blade separates each pouch |
| **5. Discharge** | Finished pouches exit via conveyor with auto-counting, batch alarm, and low-material auto-stop |
---
## Film Compatibility Guide
The MJ-350A is engineered specifically for heat-sealable laminates:
| Material | Performance | Best For |
|---|---|---|
| **PET/PE Laminate** | Best Performance — reliable at max speed | Most popular food packaging structure |
| **BOPP/PE Laminate** | Best Performance — high clarity, excellent stiffness | Transparent-window pouches |
| **Aluminum Foil Laminate** | Excellent — maximum moisture/oxygen/light barrier | Premium barrier packaging |
| **NY (Nylon)/PE Laminate** | Compatible — high puncture resistance | Sharp-edged industrial contents |
| **Kraft Paper/PE Laminate** | Compatible — eco-positioning, premium shelf appeal | Specialty coffee, organic goods |
| **CPP/BOPP** | Compatible — cost-effective, glossy | Promotional, trial-size packaging |
**Optimal COF (Coefficient of Friction)** for the MJ-350A is 0.15–0.30 kinetic. Film with COF above 0.35 will cause stacking issues on the output belt.
---
## Applications of the MJ-350A Laminated Bags Making Machine
The MJ-350A serves a wide range of industries:
### Food Packaging
- Coffee pouches and roasted bean bags
- Snack bags (chips, nuts, popcorn, puffed snacks)
- Candy and confectionery wrappers
- Bakery bags
- Dry food packaging
### Medical & Pharmaceutical Packaging
- Sterilization pouches for medical instruments
- Tablet and capsule sachets
- Medical-grade pouches with easy-tear paper strips
### Industrial Flexible Packaging
- Aluminum foil laminated bags
- Coated paper packaging
- Multi-layer composite material bags
### Consumer Products
- Toothbrush packaging
- Cosmetic and facial mask pouches
- Daily-use product sachets
---
## Why Choose the MJ-350A Over Competing Machines?
### Single-Servo vs. Dual-Servo
| Feature | Single-Servo Machine | MJ-350A Dual-Servo |
|---|---|---|
| Film feeding and sealing synchronization | Compromised at high speed | Perfectly synchronized |
| Speed vs. accuracy | Trade-off required | Both achieved simultaneously |
| Defect rate on thin films | 3–5%+ | Below 0.5% |
| Tension control | Inconsistent | ±0.1N precision |
### Stepper-Motor vs. Servo-Driven
Standard stepper-motor machines suffer from inconsistent film speed that causes micro-stretching, leading to wavy seals, film distortion, and high rejection rates. The MJ-350A's **closed-loop servo system** eliminates these issues entirely.
### Temperature Control
Basic machines experience temperature fluctuations that compromise seal quality. The MJ-350A's **PID control** maintains **±1°C stability** even at 120 bags/min — a critical advantage when working with sensitive laminates like aluminum foil.
---
## CE Certification and Quality Assurance
The MJ-350A is **CE certified**, ensuring compliance with European safety, health, and environmental protection standards. This certification is essential for manufacturers exporting to European markets and demonstrates the machine's industrial-grade reliability.
With a client repurchase rate of **nearly 100%** and a workforce of over 200 engineers, Xuanhai has established itself as a trusted partner in the global flexible packaging industry.
---
## Frequently Asked Questions (FAQ)
### Q: What is the maximum production speed of the MJ-350A?
The MJ-350A produces 80–120 bags per minute in standard configuration.
### Q: What materials can the MJ-350A process?
The machine processes PET/PE, BOPP/PE, NY/PE, aluminum foil, paper laminates, CPP, and OPP films.
### Q: What is the maximum bag width?
We have 350mm mode,500mm model or more.
### Q: Is the MJ-350A suitable for thin BOPP film?
Yes. The closed-loop servo system maintains tension to ±0.1N, keeping defect rates below 0.5% even at 180 bags/min on 50-micron BOPP.
### Q: Does the machine support customized bag features?
Yes. The MJ-350A supports euro hole punching, tear notch, zipper bag attachment, and punching mold options.
### Q: What is the power requirement?
The machine requires **220V / 50/60Hz / 1 Phase** power supply with total power consumption of 7.5 kW.
---
## Conclusion
The **MJ-350A laminated bags making machine** represents a significant advancement in center seal pouch production technology. Its dual-servo drive system, precision PID temperature control, and intelligent PLC automation deliver unmatched speed, accuracy, and reliability for manufacturers of flexible packaging.
Whether producing coffee pouches, snack bags, medical sterilization pouches, or industrial laminated packaging, the MJ-350A offers the performance and versatility that modern packaging operations demand. With CE certification, factory-direct pricing from Ruian Xuanhai, and a proven track record across 30+ countries, this machine is the ideal investment for bag converters and packaging manufacturers seeking to scale production while maintaining the highest quality standards.
For manufacturers looking to **increase production efficiency**, **reduce defect rates**, and **expand into new packaging markets**, the MJ-350A delivers a compelling return on investment through superior engineering and proven performance.
---
