Plastic Food Storage Bag Making Machine
Description
Ruian Xuanhai Machine Co., Ltd. — Est. 1988
Plastic Food Storage
Bag Making Machine
Fully automatic production of zipper bags, sandwich bags, freezer bags, and resealable PE/LDPE food storage pouches. Servo-driven. PLC-controlled. CE certified. Factory-direct pricing — 30% below comparable imports.
CE Certified 80–120 Bags / Min PE · LDPE · LLDPE · CPP Food-Grade Compatible 2-Year Warranty
80–120 Bags / Min
±0.5mm Seal Tolerance
PLC Control System
35+ Countries Served
1988 Founded
CE Certification
Product Overview
What This Machine Does
The Xuanhai Plastic Food Storage Bag Making Machine is a fully automatic production system engineered specifically for the high-volume manufacture of food-grade resealable bags — including ziplock bags, slider-closure freezer bags, sandwich bags, and flat PE pouches.
Unlike generic bag-making machines adapted for food use, this line was purpose-designed around food-packaging requirements: consistent seal integrity, support for transparent and printed films, cleanable contact surfaces, and compatibility with FDA/EU food-contact grade PE and LDPE materials.
From a single roll of flat film, the machine automatically performs folding, zipper-profile welding (or mechanical slider attachment), edge trimming, photo-eye-guided cutting, and stacking — all in a single continuous pass at 80 to 120 bags per minute.
The entire process is managed by a PLC control system with touchscreen HMI, servo-motor film feed, and closed-loop temperature regulation — giving operators full visibility and repeatable results batch after batch.

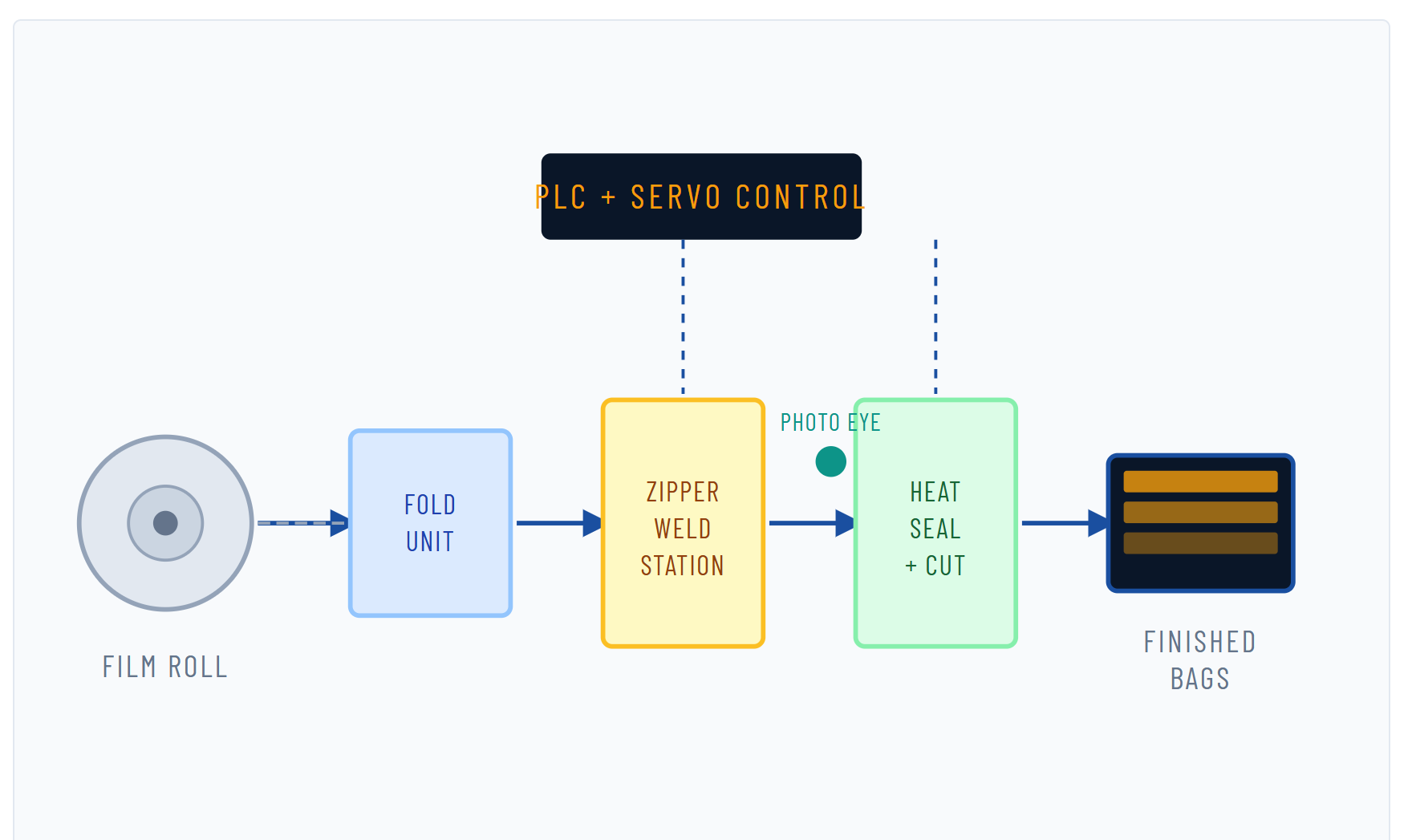

Production flow: film unwind → fold → zipper weld → heat seal & cut → output
How It Works

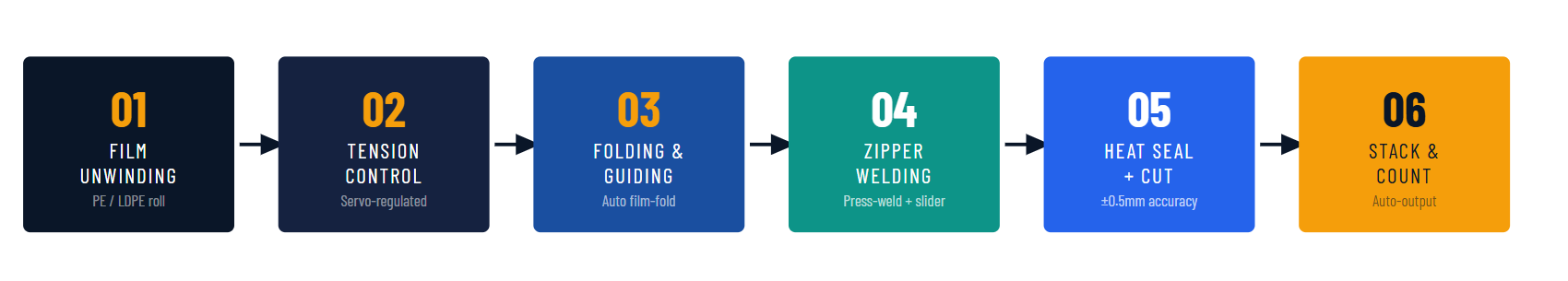

6-Stage Automated Production Process
Production Capabilities
Bag Types This Machine Produces
Zipper (Zip-Lock) Bags
Resealable press-to-close zipper bags for snacks, dried fruits, nuts, and general food storage. Sizes from sandwich to gallon.
Slider-Closure Bags
Premium freezer and storage bags with attached sliding closure mechanism. Ideal for brand-name consumer retail products.
Sandwich / Fold-Top Bags
Simple fold-close PE bags for sandwiches, produce, and loose snacks. High-volume, cost-efficient production.
Freezer Bags
Heavy-gauge LDPE bags rated for sub-zero temperatures. Double-seal zones prevent freezer burn.
3-Side Seal Flat Pouches
Three-side sealed flat pouches for vacuum-packing, spice sachets, condiment packets, and pre-portioned food items.
Gusset Storage Bags
Side-gusseted bags with expanded capacity for bulky foods, cereals, and pet treats requiring extra volume.
Engineering Data
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Production Speed | 80 – 120 bags/min | Depends on bag size and film gauge |
| Compatible Materials | PE, LDPE, LLDPE, CPP, OPP, composite laminate | Food-grade grades supported |
| Bag Width Range | 100 – 400 mm | Adjustable without tool change |
| Bag Length Range | 100 – 600 mm | Servo-controlled for ±0.5mm accuracy |
| Film Thickness | 0.03 – 0.15 mm | Suitable for standard to heavy-duty storage bags |
| Drive System | Servo motor (closed-loop) | Stable feed at all speeds |
| Control System | PLC + 7" touchscreen HMI | Recipe storage for quick changeover |
| Temperature Control | ±1 °C closed-loop regulation | Prevents film deformation and weak seals |
| Photo-Eye Tracking | High-sensitivity color mark sensor | Auto-compensates for print registration |
| Power Supply | 220V / 380V, 50/60 Hz (customizable) | Available for US, EU, AU markets |
| Certification | CE | Meets EU Machinery Directive |
| Warranty | 2 years + lifetime technical support | On-site installation available |
* All specifications are nominal. Custom configurations (voltage, bag size range, additional stations) are available on request. Contact our engineering team for a tailored datasheet.
Engineering Advantages
Why This Machine Outperforms Generic Alternatives
Dedicated Food-Bag Architecture
The zipper-feed and welding stations are engineered exclusively for PE zipper profiles used in food storage — not adapted from general pouch lines. This means fewer jams, cleaner zipper alignment, and tighter consumer-grade tolerances.
Servo-Motor Film Feed
Closed-loop servo drive delivers consistent film tension at all production speeds, eliminating the stretch marks, seal misalignment, and wasted material common with older clutch-brake systems.
Recipe-Based HMI Controls
Store up to 99 product recipes on the 7-inch touchscreen controller. Switching between sandwich bag sizes and freezer bag configurations takes under two minutes — no re-calibration required.
Remote Installation Support
Our engineers provide video-call guided installation at no extra charge, with optional on-site commissioning available globally. 90% of customers are operational within 48 hours of machine arrival.
Low Material Waste Design
Precision servo feed and photo-eye registration reduce film off-cuts to under 3mm per bag end. For a 24/7 production line, this translates to thousands of dollars in material savings per year.
Overcurrent & Jam Protection
High-sensitivity overcurrent detection automatically cuts power to the sealing bars if a jam is detected, preventing mold damage and eliminating costly downtime from film wrap incidents.
Competitive Analysis
Xuanhai vs. Generic Market Alternatives
| Feature | Xuanhai Food Storage Bag Machine | Generic / Low-Cost Alternatives |
|---|---|---|
| Drive System | ✓ Servo-motor (closed-loop) | — Stepper or clutch-brake motor |
| Zipper Station | ✓ Dedicated food-bag zipper weld unit | — Generic add-on module (poor alignment) |
| Temperature Regulation | ✓ ±1°C closed-loop PID control | — Open-loop ±5–8°C drift |
| HMI / Recipes | ✓ 7" touchscreen, 99 recipes stored | — Basic digital display, manual setup |
| Certification | ✓ CE certified | — Often uncertified or self-declared |
| After-Sales Support | ✓ 2-year warranty + lifetime support | — 12 months, limited spare parts |
| On-Site Installation | ✓ Available globally | — Rare or extra-cost |
| Changeover Time | ✓ <2 min via recipe recall | — 30–60 minutes manual reset |
Industry Use Cases
Who Buys This Machine
This machine serves manufacturers across the food packaging supply chain — from private-label household brands to institutional food-service distributors.
Consumer Goods Brands — private-label zipper storage bags
Supermarket Chains — bulk sandwich & produce bags
Food-Service Distributors — freezer & vacuum-storage bags
Packaging Converters — contract production for food brands
E-commerce Sellers — branded resealable retail bags
Meal-Prep & Diet Companies — portion-control storage pouches
Common Questions
Frequently Asked Questions
What types of food storage bags can this machine produce?
The machine produces zipper (zip-lock) bags, slider-closure bags, sandwich bags, fold-top bags, freezer bags, and flat 3-side seal pouches. All from PE, LDPE, or LLDPE film. Custom sizes — including gallon, quart, pint, and snack — are supported via the PLC recipe system.
What film materials are compatible?
How fast can the machine produce bags?
Is the machine suitable for printed films?
What is the minimum order quantity and lead time?
What after-sales service and warranty do you offer?
Ready to Start Your Food Bag Production Line?
Get a factory-direct quote, custom spec sheet, or video demo from our engineering team. Response within 24 hours.
