Central Sealing Pouch Bag Making Machine For Lamination Food Packing Bags,Coffee Bag MJ-350-B
- T back sealing bag
- With Flower wheel seal
- Opitional with hole punchers
- With side gusset
- Can do any size bag you want
- Contact us whatsapp:+8613326195268
Description
Machine features：
1.Central Seal Pouch Bag Making Machine is economy design for centre sealing and bottom sealing plastic pouch bag.It can make paper bags with laminated film and plastic middle and bottom sealing bag with or without side gusset.
2.The machine is with computer to set the length,speed,batch.
3.Can make printed or non printed bag,with gusset.
4.Optional: hole punchers
Technical parameters
Model | MJ-350-B | MJ-500-B |
Bag Sealing Width | 40-350mm | 40-500mm |
Bag Sealng Length | 40-500mm | 40-500mm |
Speed | 240pcs / minute | 240pcs / minute |
Diameter | 600mm | 600mm |
Gusset Width | 0-60mm | 0-60mm |
Paper Weight | 30-100gsm | 30-100gsm |
Film Thickness | 10-50micron | 10-50micron |
Air Pressure | 4Mpa | 4Mpa |
Size(W*L*H) | 6000*1450*1800mm | 6000*1600*1800mm |
Heating Power | 12kw | 15kw |
More machine pictures
 |
|
|
|

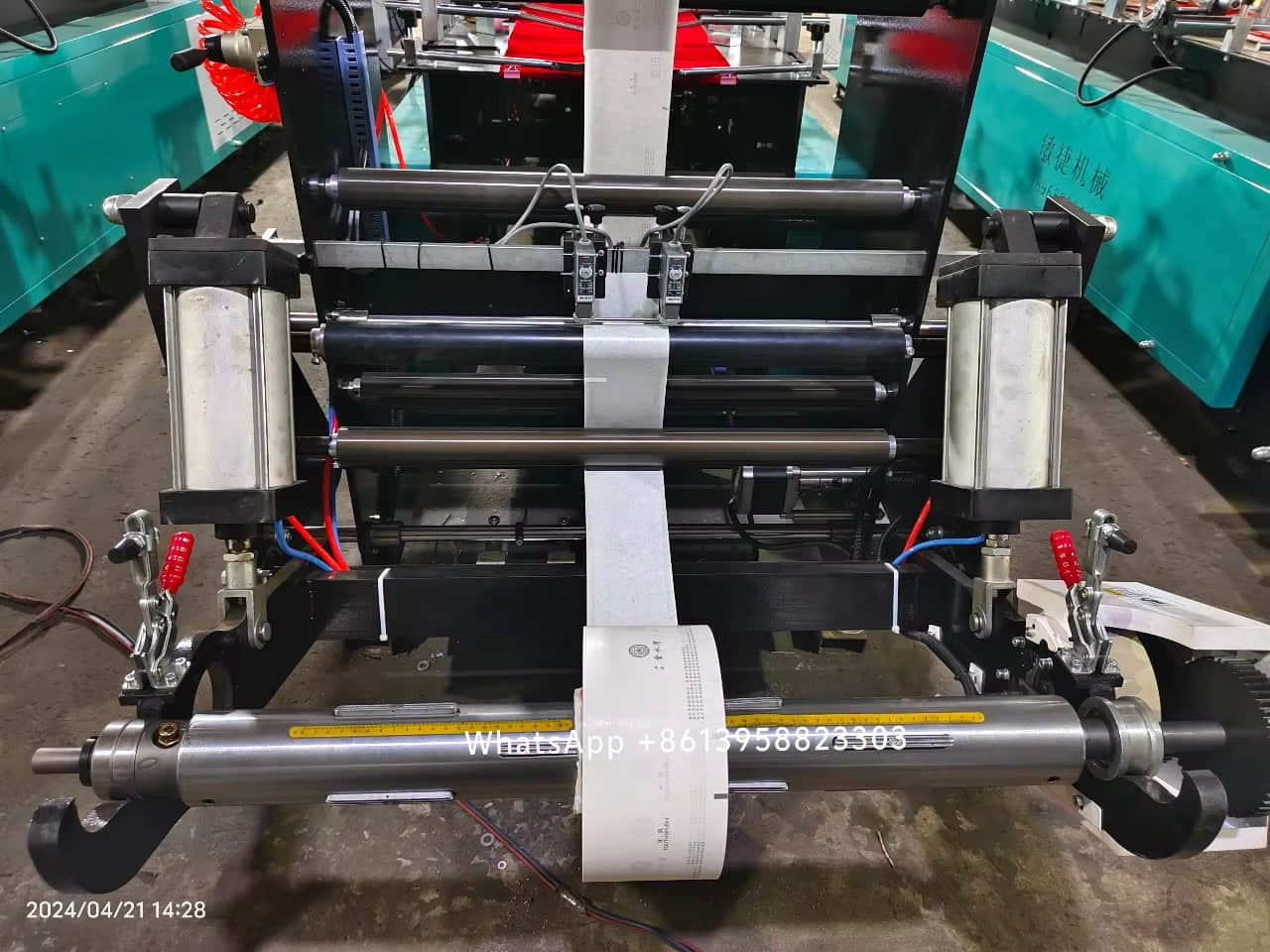

AIR CYLINDER TO EASY UPLOAD THE ROLL MATERIAL | Double photocells to control the material |
|
|
Use different size mould to make different width bag | |
 |  |
Central sealing knife to seal the bag central part | High power blower ,fast cooling |
 |  |
All rollers are Oxidation treatment to ensure produce high quality bag | Photocell to do printed bag |
 |  |
Puncher to make holes and easy tear off for bag | Add slitting device to make double pcs one side open bag |
|
|
Gusset device to make gusset type bag | Gusset bag type sample |
 |  |

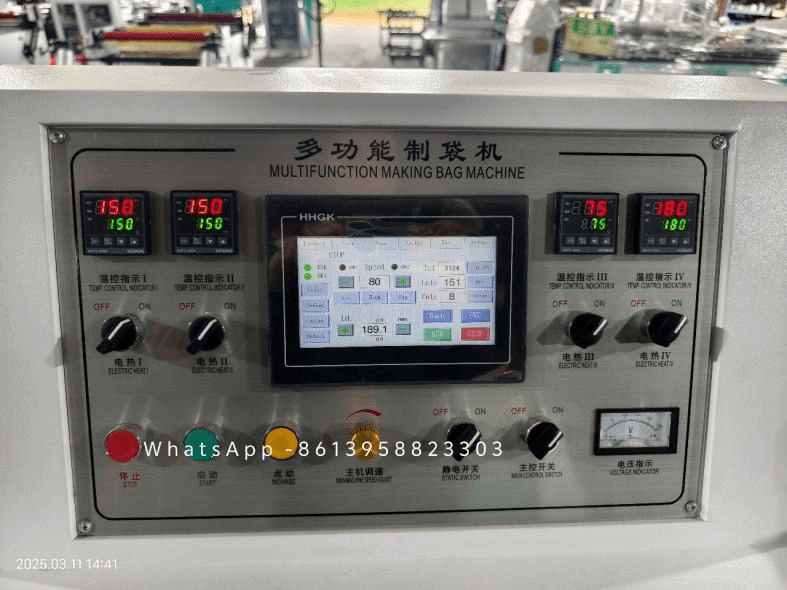

Computer control,easy operation, Set bag length,batch,running speed | High quality electrical parts for long life |
|
|

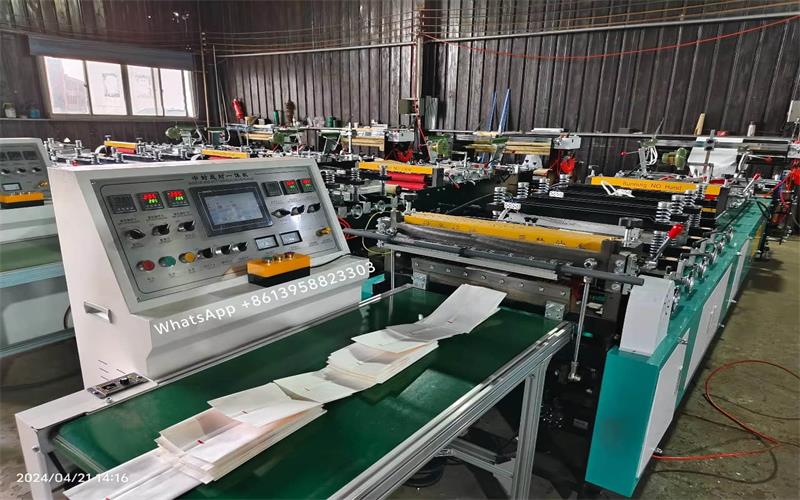

Conveyor belt for easy bag collection | |
Bag Samples
