Automatic Square Medical Cotton Cosmetic Pads Machine Makeup Remover Cutting Forming Machine

Description

Machine Description

The square cosmetic cotton pad cutting machine utilizes a PLC control system and a servo motor for precise, fixed-length material feeding. Parameters can be easily adjusted via a touchscreen interface. The machine features an automated system for staggered counting, integrated photoelectric and pneumatic controls, and a safety guard equipped with a photoelectric sensor that triggers a shutdown if opened. Additionally, it includes automatic stop functionality in the event of material breakage, continuous photoelectric monitoring, and an automatic waste removal system. Designed for simplicity, the machine is easy to set up and operate, requiring only one worker.

Machine Features

1. Machine cutting speed: 60 cycles/minute; production output: 1,600–1,700 pieces/minute.

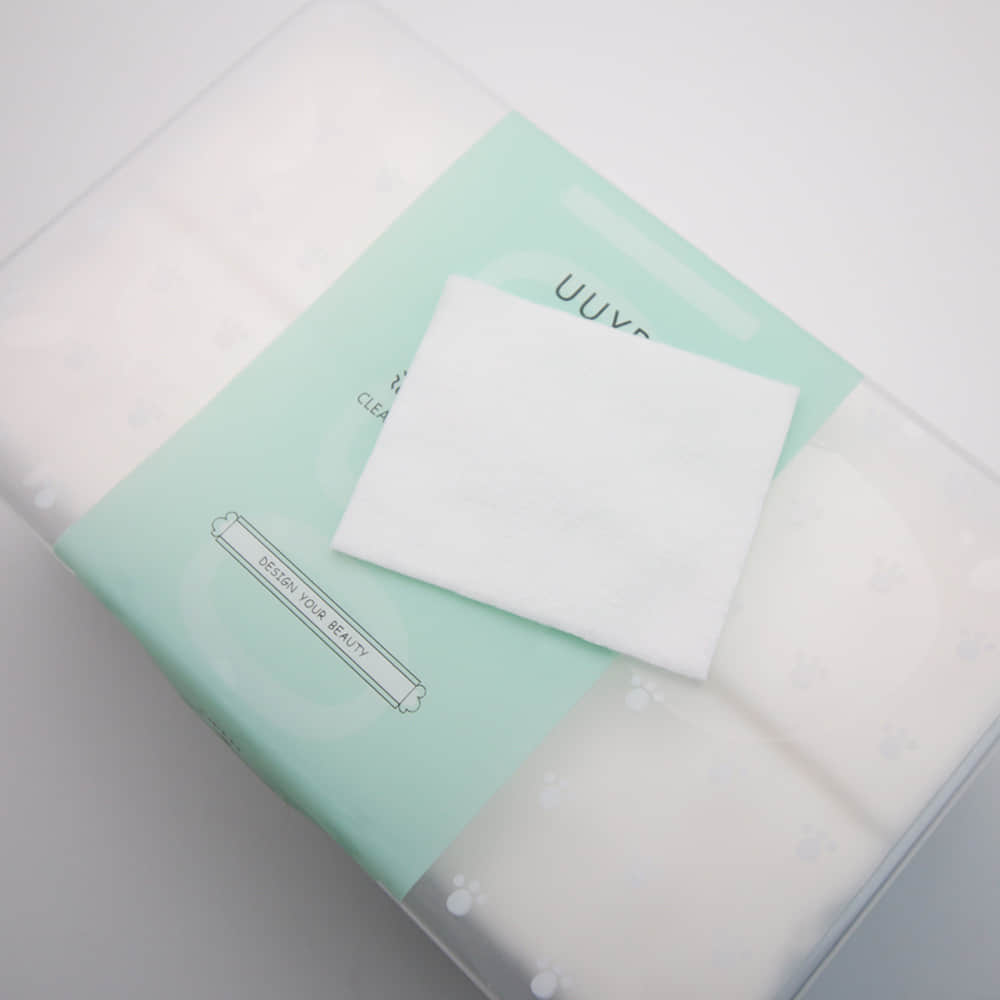

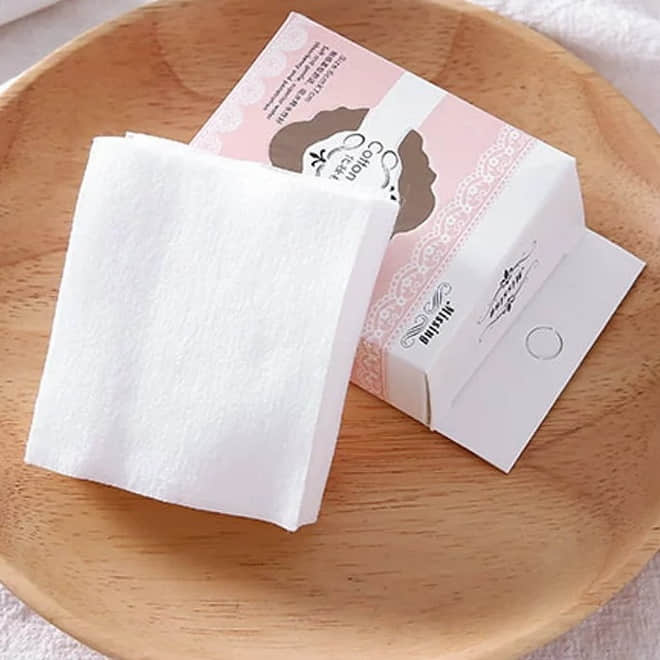

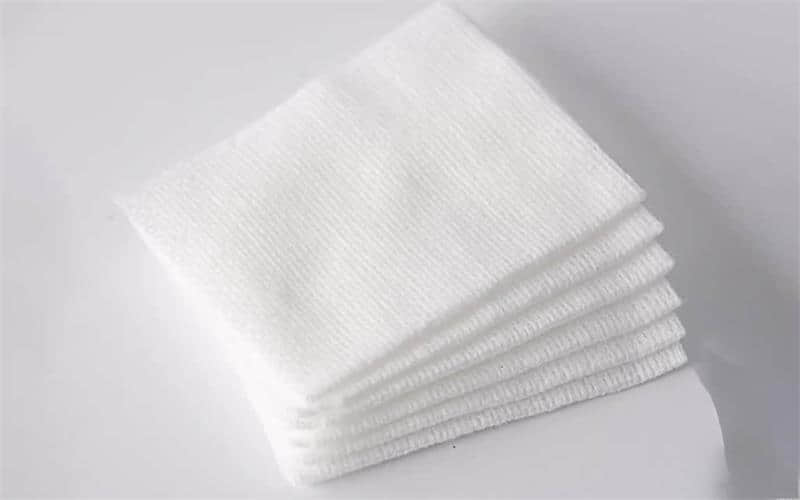

2. Product dimensions: 30 × 30 mm cotton pads.

3. Equipped with an unwinding system capable of handling either a single layer or three layers (non-woven fabric on the top and bottom with a cotton layer sandwiched in between, laminated in-line).

4. Features heated rollers for pressing.

5. High-speed tungsten steel (SKH-56 grade) cutting blades for enhanced wear resistance.

6. Touchscreen interface supports both Chinese and English for ease of operation.

7. Packaging station includes fixtures to assist with manual insertion into paper boxes.

8. Power rating: 8 kW; voltage: 380 V.

9. Machine dimensions: 4 m (length) × 2.3 m (width) × 1.8 m (height).

10. Compatible with cotton rolls having a width of 870 mm, a diameter of 0.8–1.0 m, and a weight of 900 kg.

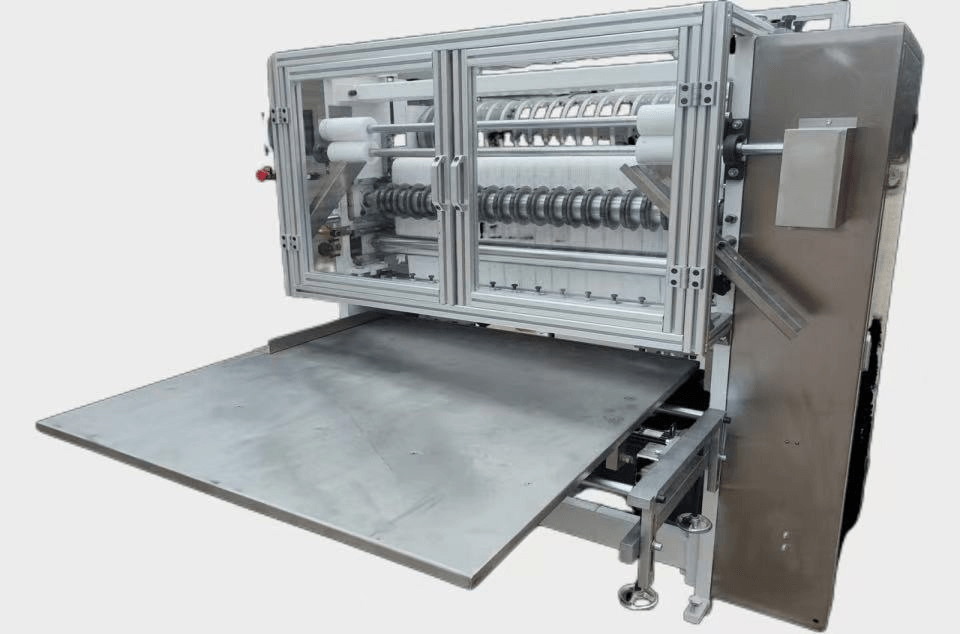

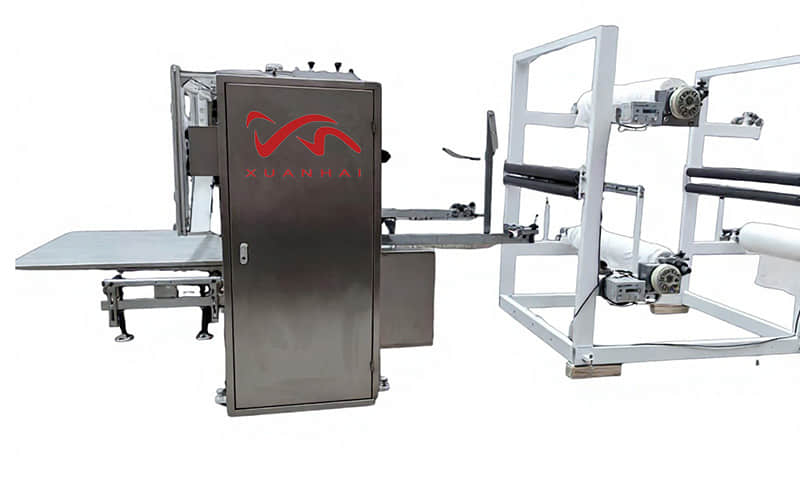

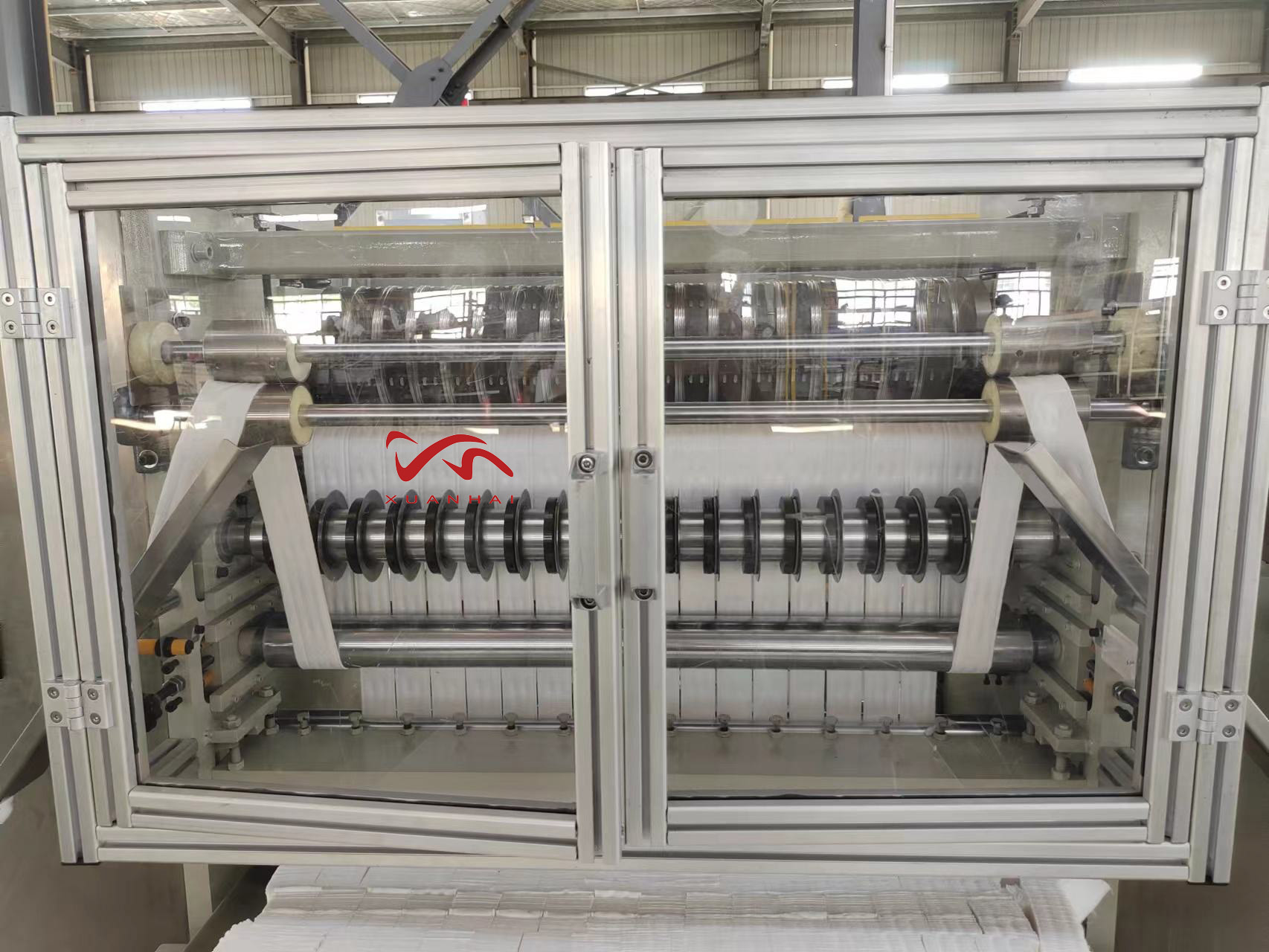

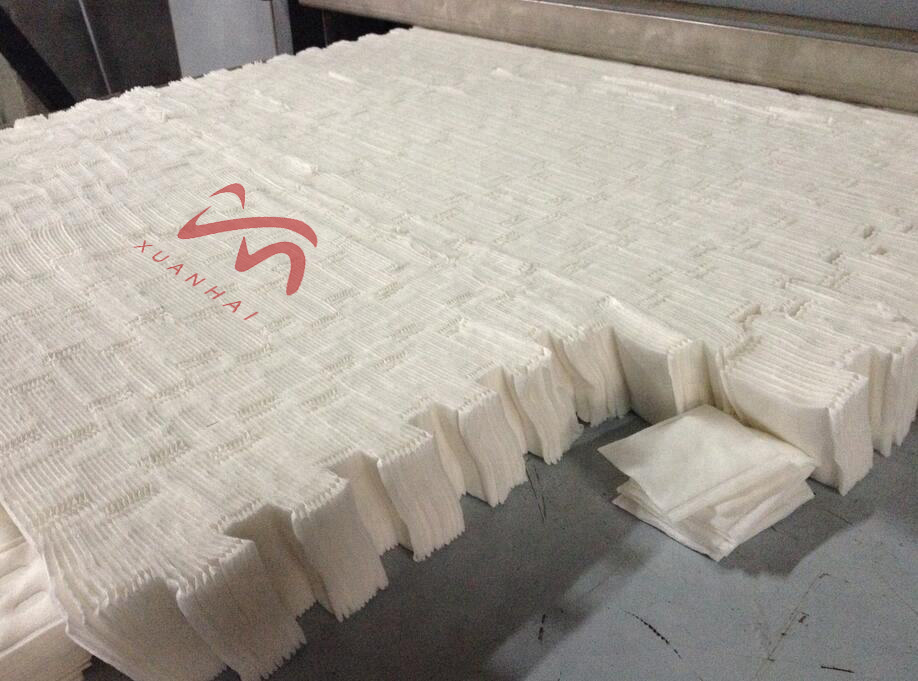

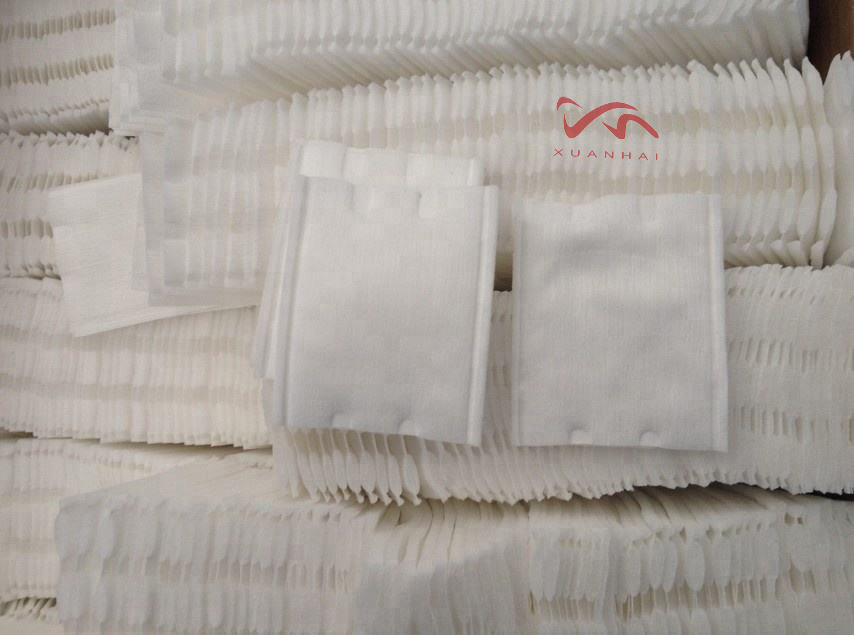

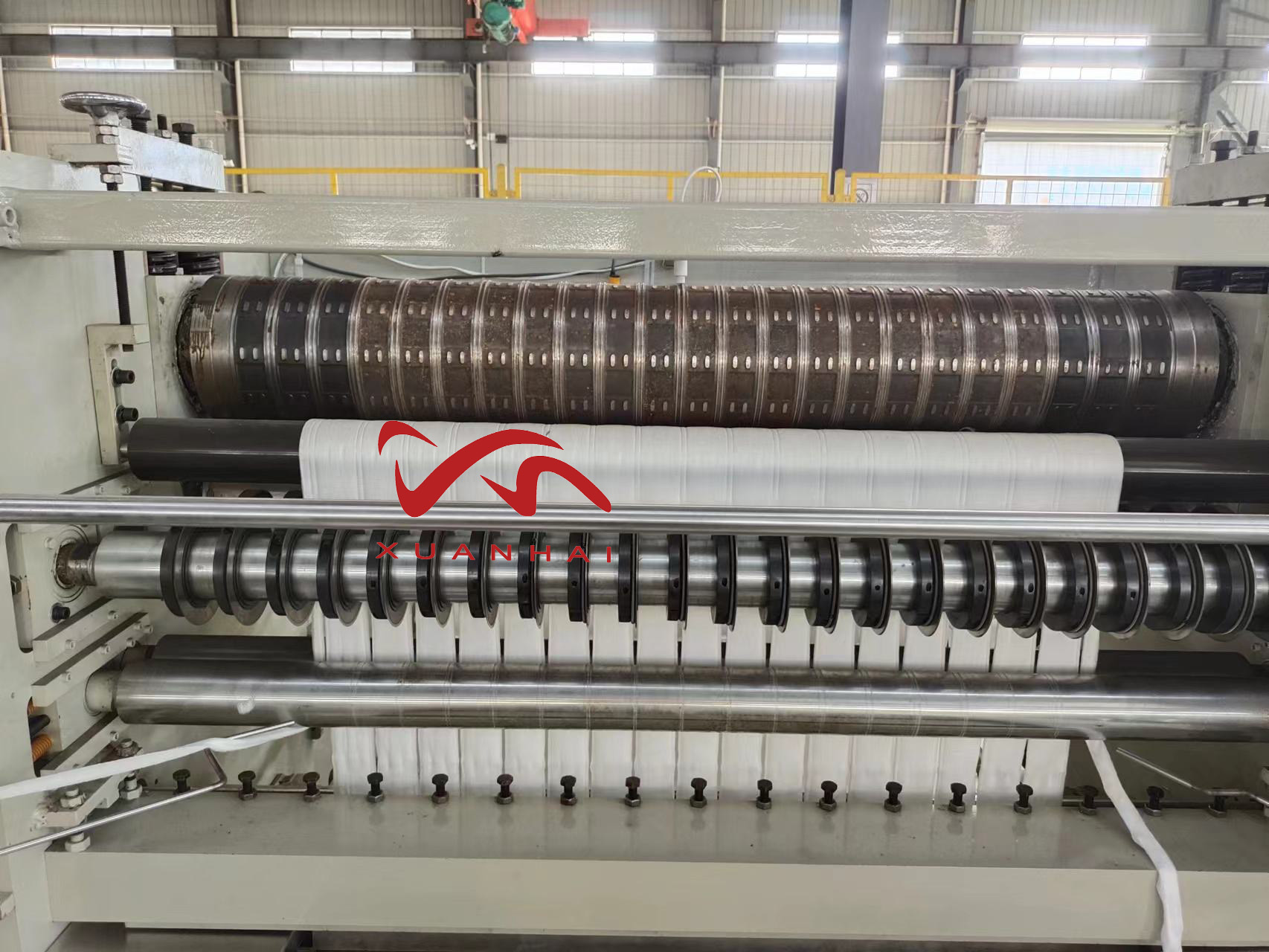

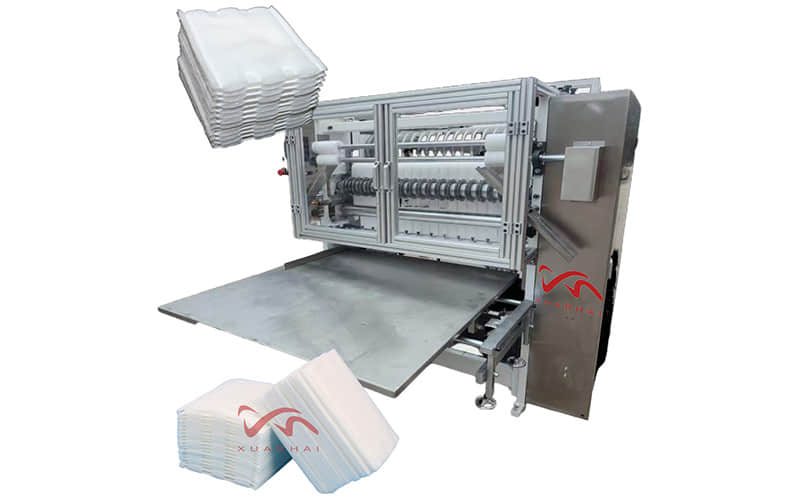

Machine images
