Automatic Coffee Filter Paper Bag Making Machine Conical Coffee Filter Paper
Description
In Stock · Ships in 30–45 Days

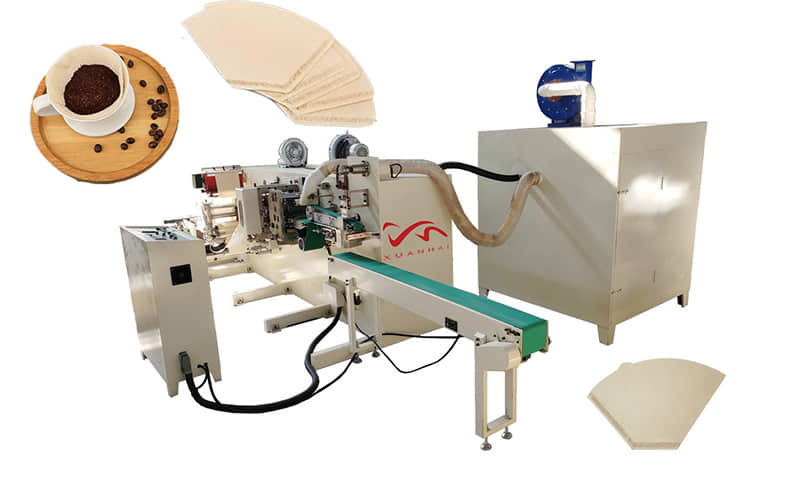

Automatic Coffee Filter
Paper Making Machine
High-speed rotary die cutting production line for cone, V60, flat-bottom, and basket coffee filters — PLC-controlled, CE certified, and built for 24/7 industrial output.
600 pcs/min Max Output
50–90 GSM Paper Range
4+ Filter Styles
CE Certified
Machine Parameters at a Glance
All specifications below are for our standard full-automatic series. Custom configurations — including multi-lane, servo-upgraded, and inline packaging variants — are available on request.
Production Speed 200 – 600 pcs/min Model-dependent; servo version achieves 600 pcs/min
Compatible Paper GSM 50 – 90 gsm Bleached, unbleached, compostable substrates
Cutting Method Rotary Die Cut Steel-to-steel precision; minimal burring
Control System PLC + HMI Touch Real-time fault diagnostics, recipe storage
Power Supply 380V / 50Hz Custom voltage available (220V, 60Hz)
Drive System Servo Motor Constant tension unwinding; synchronous belt
Mold Change Time < 30 min Quick-release modular mold system
Waste Removal Auto Roll-Up Continuous — no production stoppage

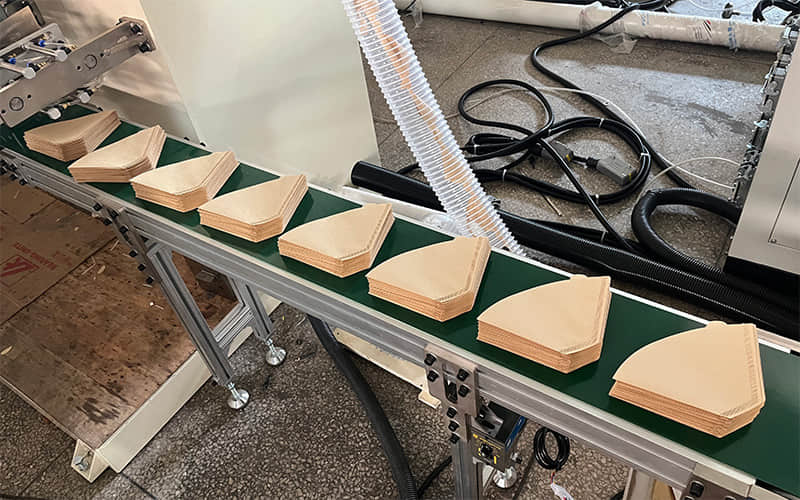

Output Counted & Stacked Conveyor belt exit; stackable batches
Certification CE Certified EU Machinery Directive compliant
Lead Time 30 – 45 Days Standard; 50–60 days for custom builds
Warranty 12 Months Main frame; free spare parts in year 1
Coffee Filter Styles This Machine Produces
One machine platform, multiple filter geometries. Switch between styles by swapping the die mold module — no rewiring, no major reconfiguration.
🍦

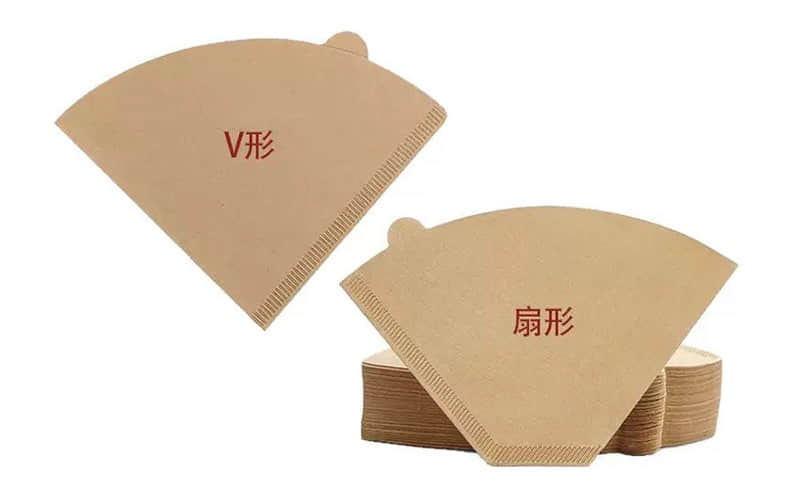

Cone Coffee Filter
Classic conical shape for drip brewers. Available in #2, #4, #6 sizes. The most widely produced filter globally.
Most Popular🔻
V60 Pour-Over Filter
Ribbed cone design for Hario V60, Chemex, and specialty pour-over brewing. Growing demand in specialty coffee markets.
Specialty Coffee🟫
Flat-Bottom Filter
Flat base with folded sides for basket-style brewers and Kalita Wave. Stable during brew; consistent extraction.
Home & Commercial🧺
Basket Filter
Wide-base filters for drip coffee machines. High-volume production suitable for private-label and supermarket supply.
High Volume☕
Drip Coffee Filter Bag
Hang-on-cup single-serve drip bags. Growing segment in Asian and European markets. Inline heat-seal option available.
Fast Growing🌿
Compostable Filter
Runs on PLA-coated, bamboo, or FSC-certified paper. Meets EU Single-Use Plastics regulations. Eco-label ready.
SustainableAutomated Production Flow — Step by Step
The entire process runs continuously from raw paper roll to counted, stacked finished filters — requiring minimal operator intervention.
1
Servo-Controlled
Roll Unwinding
Roll Unwinding
2
Tension &
Web Guiding
Web Guiding
3
C-Type or
Cone Folding
Cone Folding
4
Steel-to-Steel
Edge Pressing
Edge Pressing
5
Rotary Die
Cutting
Cutting
6
Auto Waste
Removal
Removal
7
Counting &
Stacking
Stacking
8
Conveyor
Belt Exit
Belt Exit
8 Key Advantages Over Standard Market Options
These are engineering and operational differentiators — not marketing language — that directly affect your unit cost, uptime, and product quality.
Higher Speed Without Sacrificing Quality
Rotary die cutting with servo-driven feed maintains ±0.3 mm cut tolerance at full 600 pcs/min. Comparable machines at this speed typically drift to ±1 mm+.
Rapid Mold Changeover
Proprietary quick-release mold cassettes enable shape switching in under 30 minutes — reducing downtime between production runs for different SKUs.
Eco-Substrate Compatible
Validated to run compostable, bamboo-fiber, and ultra-thin FSC papers (50 gsm) without tearing — enabling sustainable product lines without separate equipment.
PLC Recipe Storage
Store up to 50 production recipes on the HMI. One-touch recall for each filter size/paper combination eliminates operator setup error.
Low Noise Operation
Enclosed drive modules and vibration-dampened frame keep operating noise below 75 dB — meeting EU workplace standards without acoustic shielding.
Food-Grade Hygiene Design
Separated conveying and drive sections prevent cross-contamination. Stainless contact surfaces meet FDA 21 CFR and EU food equipment standards.
Remote Diagnostics Ready
Optional IoT module enables remote fault diagnosis via ethernet. Our engineers can troubleshoot PLC programs in real time without an on-site visit.
Inline Packaging Integration
Output conveyor is designed to connect directly to downstream counting, bagging, or box-loading systems — enabling a fully automated production line.
Paper Substrate Guide for Coffee Filter Manufacturing
Selecting the right raw material determines filter taste neutrality, flow rate, and sustainability credentials. Our machine runs all of the following substrates.
Bleached (White) Filter Paper
55–70 gsm · Wood pulp · High whiteness
StandardUnbleached (Natural) Filter Paper
55–70 gsm · No chlorine · Earthy tone
Premium AppealOxygen-Bleached Paper
55–75 gsm · ECF/TCF process · EU compliant
Eco-FriendlyBamboo Fiber Paper
50–65 gsm · FSC certified · Fast-renewable
SustainablePLA-Coated Compostable
60–80 gsm · EN13432 certified · Heat-sealable
CompostableWet-Strength Paper
65–90 gsm · High-humidity stable · Long brew time
Commercial GradeHow We Compare: Full-Auto vs. Semi-Auto vs. Manual Die Cutting
Understanding the true cost of ownership means comparing beyond sticker price. This table covers the factors that determine your real ROI.
| Feature / Factor | Our Full-Auto Series | Typical Semi-Auto | Manual Die Cutting |
|---|---|---|---|
| Max Output | 200–600 pcs/min | 80–150 pcs/min | 15–40 pcs/min |
| Operators Required | 1 per line | 2–3 per line | 4–6 per line |
| Cutting Precision | ±0.3 mm | ±0.8 mm | ±2+ mm |
| Mold Changeover | <30 min | 60–90 min | N/A (fixed) |
| Compostable Paper Support | Yes (validated) | Limited | Manual handling risk |
| PLC Recipe Storage | Up to 50 recipes | None | None |
| Remote Diagnostics | Optional IoT module | Not available | Not available |
| CE Certification | Standard | Some models | Rarely |
| Inline Packaging Compatible | Yes | Requires adapter | No |
| Waste Paper Removal | Auto continuous | Manual stop/clear | Manual |
Answers to Common Buyer Questions
Questions we receive from buyers evaluating coffee filter paper making machines — answered directly, without filler.
Both use the same base platform, but with different mold tooling. A cone filter uses a symmetrical circular mold with a single-seam fold; a V60 mold adds radial ribbing to the die pattern. On our machine, switching between these two shapes requires only a mold swap — no mechanical reconfiguration.
Yes — we have validated runs on PLA-coated compostable paper (EN13432), bamboo fiber rolls, and ultra-thin 50 gsm FSC-certified substrates. The servo tension control is critical for thin eco-papers that would tear on machines with less precise unwinding.
The warranty covers the main machine frame, electronic control components, and servo motors. We provide free replacement of vulnerable spare parts (belts, sensors, cutters) during year one. Molds are excluded due to normal wear. After the warranty period, spare parts and remote technical support remain available at cost.
Yes. We support OEM buyers with custom mold design for proprietary filter shapes, custom embossing patterns, and private labeling on machine panels. Standard mold development takes 15–25 days. We can also supply the full material chain — raw paper rolls from partner mills — if requested.
Standard terms are T/T with 30% deposit and 70% balance before shipment. We also accept L/C at sight. Shipping terms available include FOB, CFR, and CIF. We typically ship from major Chinese ports (Qingdao, Shanghai, Ningbo) and can coordinate with nominated forwarders.
The machine arrives pre-assembled. On-site installation is typically 1–2 days. We provide a full operation manual, a video tutorial series, and recommend the buyer send 1–2 technicians to our factory for 3–5 days of hands-on training before shipment. Remote video support is available post-installation.
Yes. The conveyor belt output is engineered to interface with automatic counting machines, bag-filling units, and box-loading systems. We can supply a matched packaging line or provide interface specifications for integration with third-party equipment.
