Manual Paper Tray Forming Machine Coffee Filter Paper Foldless Basque Round Baking Cake Cup
Description

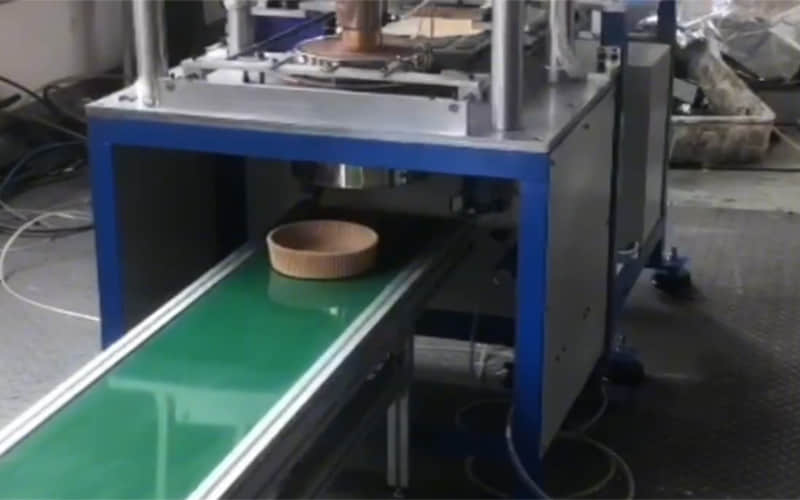

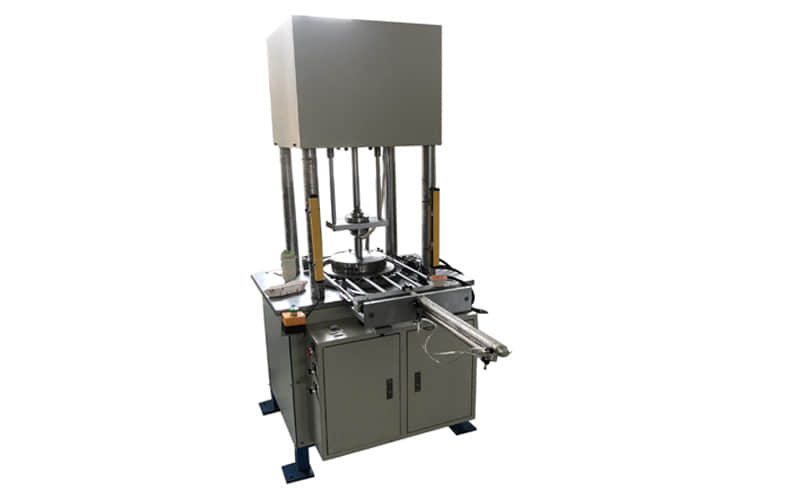

This Paper Tray Forming Machine is used to make large muffin cups. Our customers also use it to make coffee filters. This semi-automatic machine requires manual feeding. This innovative device, independently developed using Italian technology, boasts a simple structure, easy operation, high production efficiency, and reliable performance, making it a top-tier machine both domestically and internationally.
Main Technical Data
Paper size | Φ50--Φ500 mm (open paper) (mold exchangeable) |
Raw material | 15---300gsm Anti-oil paper(Greaseproof paper), aluminium foil paper or other |
Produce Speed | 30--40 beat/minute, 30--35 pcs/beat ,it is decided by paper thickness,So it is around 900-1400pcs/minute |
Total power | 220V 50Hz ,3 kw or 380V 50HZ, 3kw |
weight | 500 KG |
Overall size | 1580×1480×1600 mm |
Air supply | Air pressure 0.6MPa ,air out-put : 0.3 m3/minute |
Need to buy An air compression | |

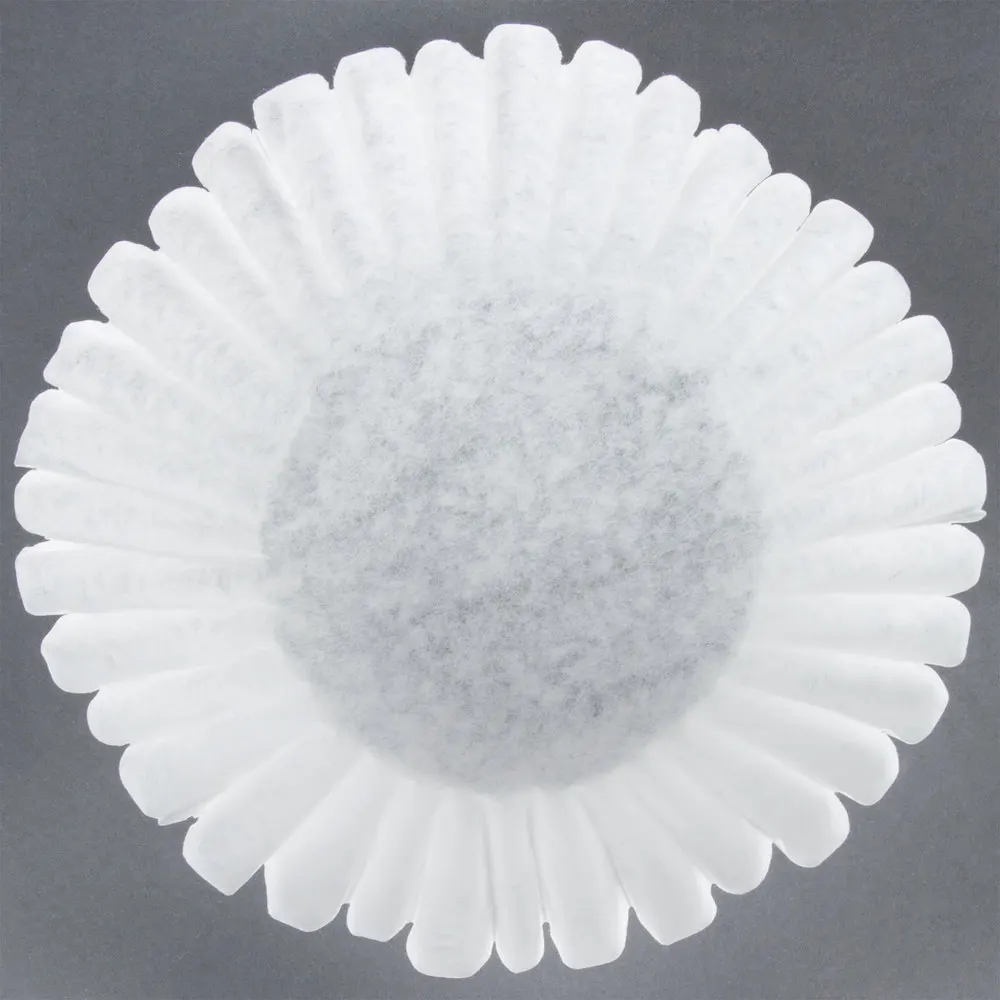

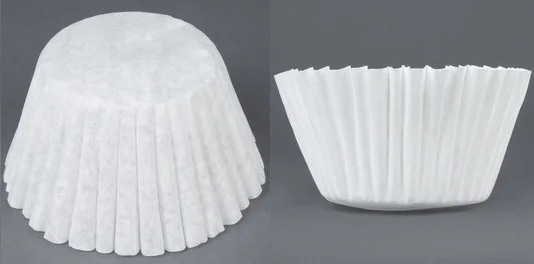

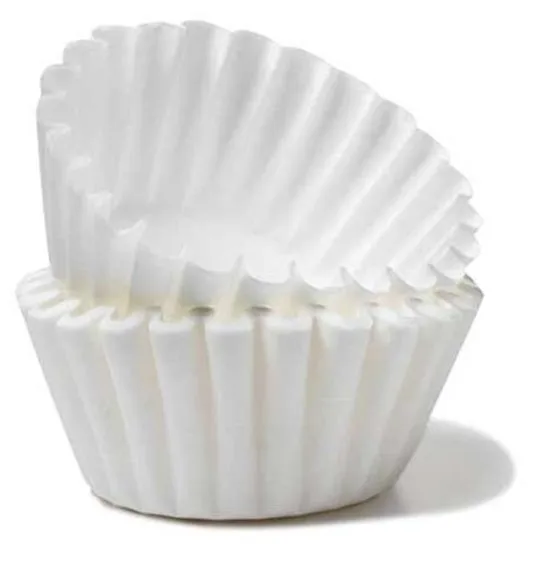

Paper Coffee Filter

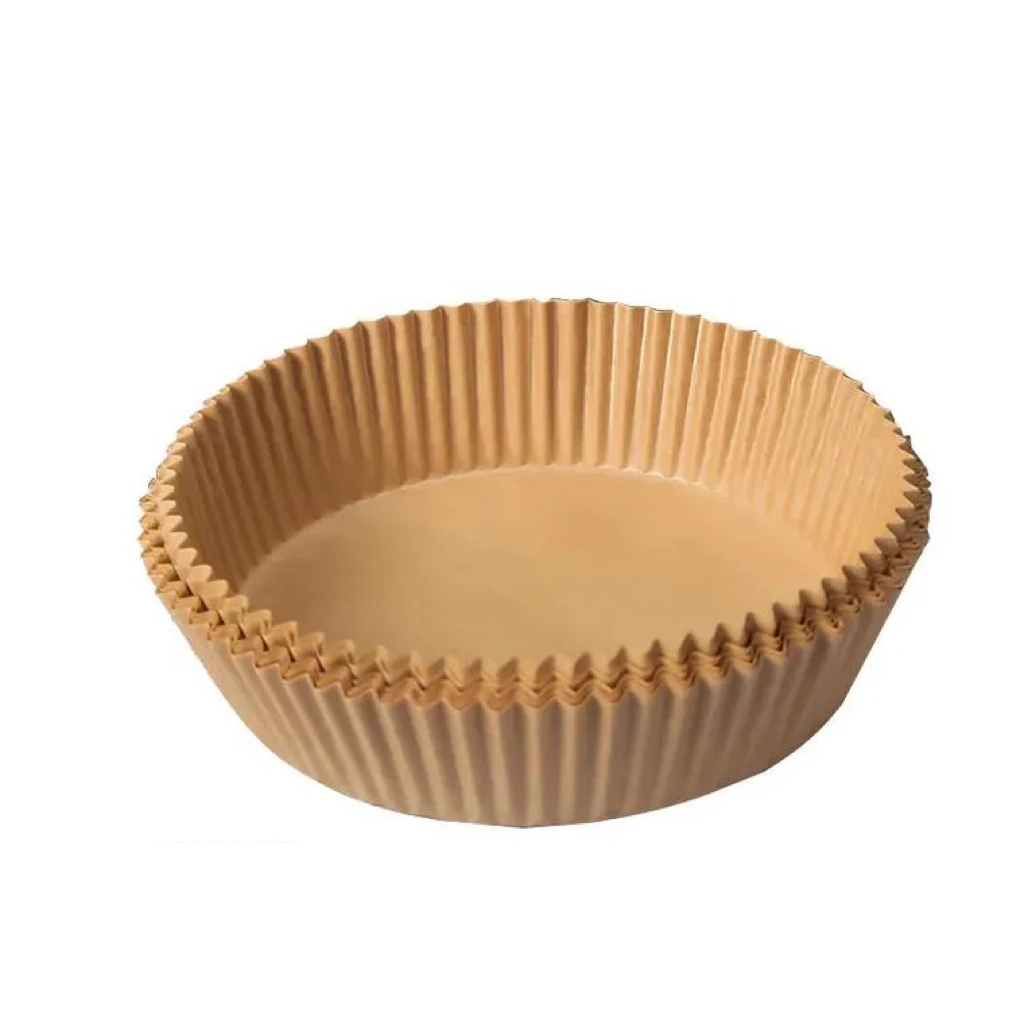

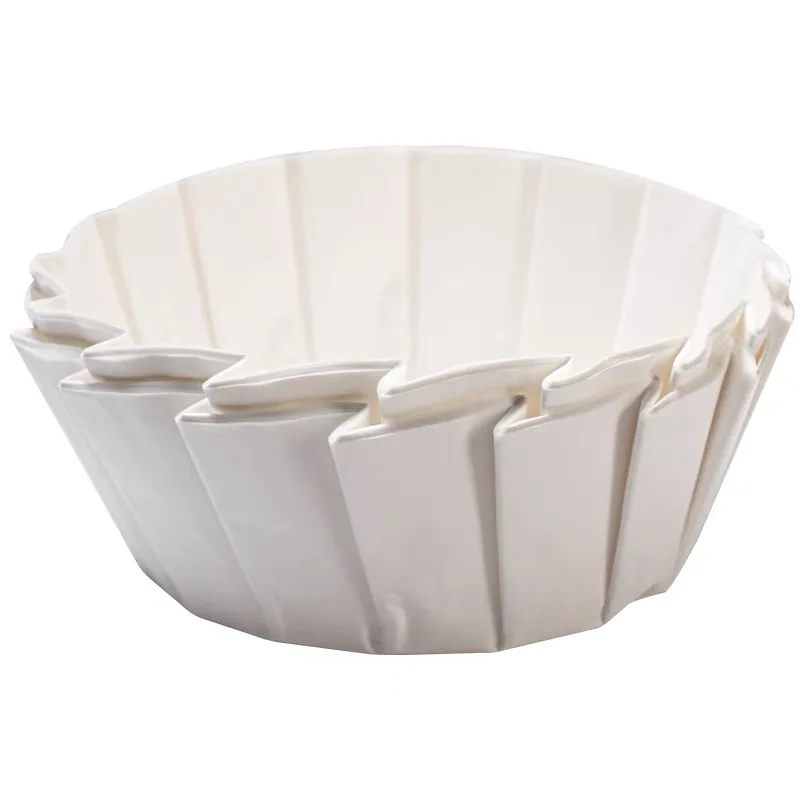

Basque Cake Cups
