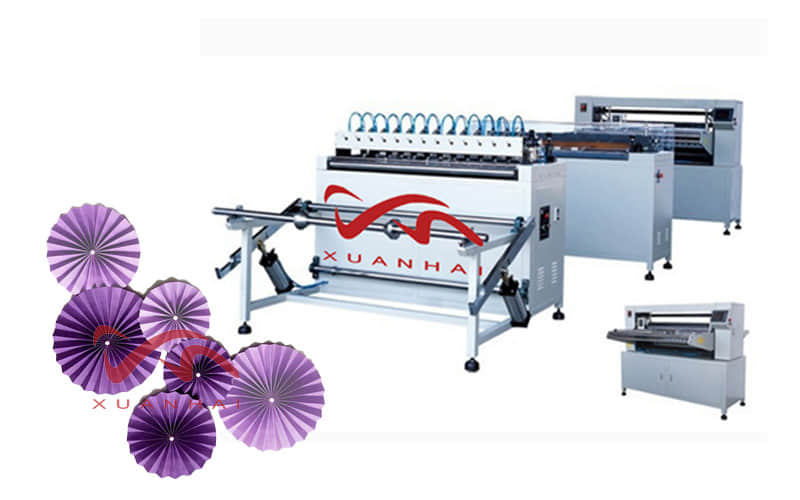

Fully Automatic Slitting and Paper Fan Folding Machine Production Line Z Fold Fan Fold
Description
Main Components of a Paper-Folding Machine Production Line
1. Paper-folding machine
2. Slitting machine
3. Automatic counter
4. Filter paper folding machine (equipped with a preheating/setting plate on the main unit)

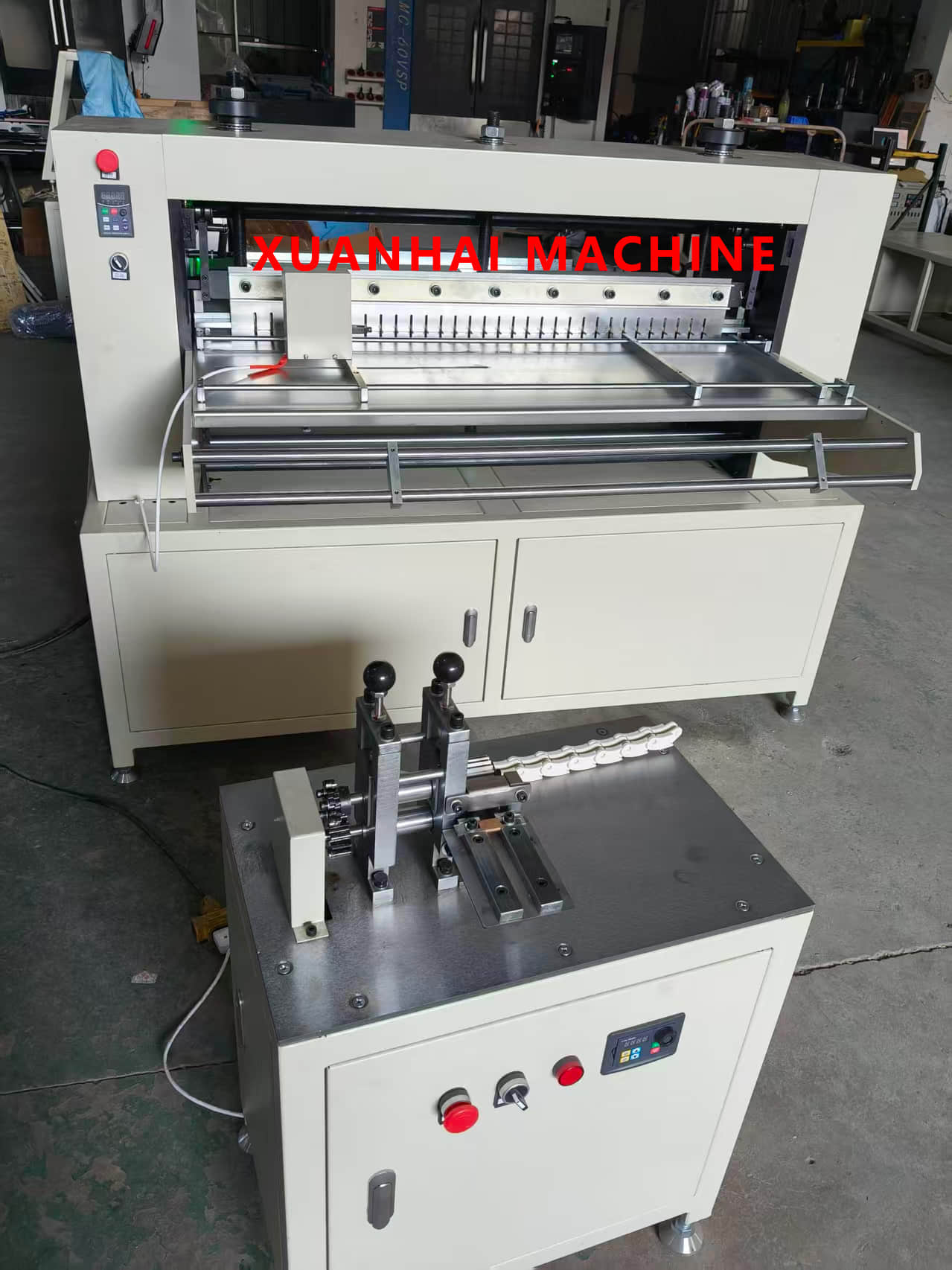

Slitting Machine | |
| Dimensions | 1600*1400*1100mm（L*W*H） |
| Maximum cutting width | 1000mm |
| Power supply voltage | 220V/50hz |
| Motor power | 0.75 kw |
| Machine weight | 350 kg |
Paper Folding Machine | |
| Model | 1000-II |
| Maximum Product Width | 1000mm |
| Adjustable Folding Height Range | 8-38mm |
| Folding Speed | 0-120 folds/min(infinitely adjustable) |
| Power Supply | 220V/380V-50hz |
| Motor Power | 1.5 kw |
| Preheating Power | 7.2kw |
| Temperature Control Range | Ambient temperature to 200℃ |
| Operating Air Pressure | 0.6mpa |
| Machine Weight | 750kg |
| Dimensions | 1700*1600*1400mm（L*W*H） |
