2 Color Non Woven Film Plastic Bag Paper Bag Flexographic Printers YT Series
- 2 colors
- 600mm model,800mm model,1000mm model or more
- 50m/min Speed
- can connect with film blowing machine inline
Description
Description

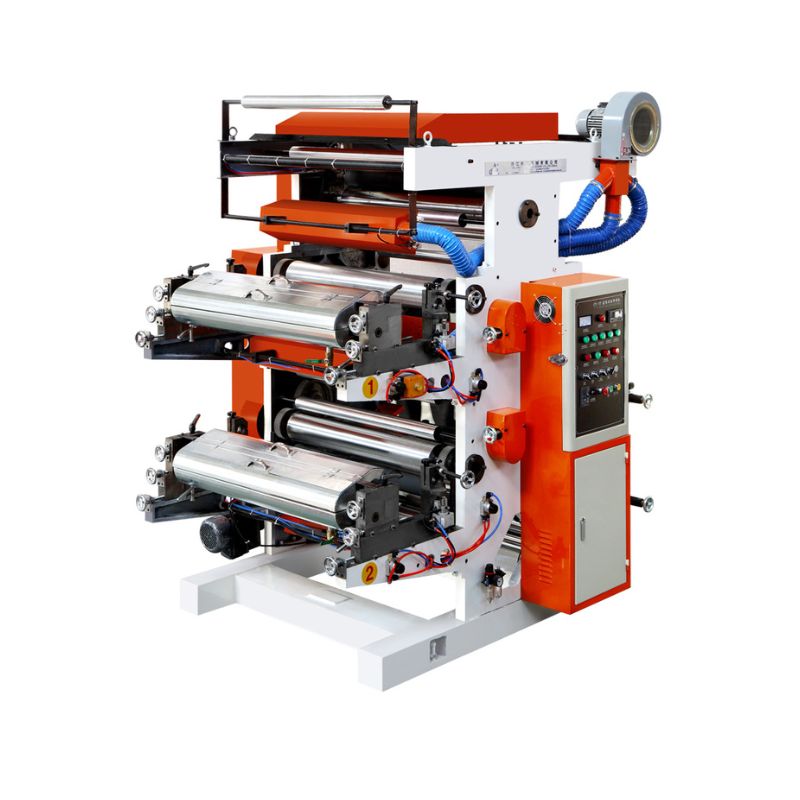

2-Color Flexo Printing Machine – High-Quality & Cost-Effective Printing Solution
The 2-color flexo printing machine, also known as an aniline press, utilizes a photosensitive resin plate for high-precision printing. Designed for eco-friendly ink usage, this machine significantly reduces plate-making costs, making it an ideal choice for high-volume and diverse production needs. It is highly versatile and suitable for printing on HDPE, LDPE film, paper bag,plastic bag by rolling material, meeting the demands of modern flexographic printing applications.
Key Features of the 2-Color Flexo Printing Machine:
✅ User-Friendly Operation – Easy start-up with precise color registration for high-quality prints.
✅ Automatic Meter Counter – Set the printing quantity as required; the machine automatically stops at the preset count or when material runs out.
✅ Efficient Ink System – The knurled cylinder ensures even ink distribution, while the plate cylinder lifts and lowers manually, automatically stirring the ink when raised.
✅ Advanced Drying System – High-speed drying technology synchronizes with the printing process and stops automatically when the machine halts.
✅ Precision Registration – 360° continuous adjustable longitudinal register guarantees accurate printing alignment.
✅ Variable Speed Control – Imported frequency motor control adapts to different printing speeds for optimal efficiency.
✅ Convenient Operation – Inching/stopping buttons on the plate roller base and material rack allow easy adjustments during plate installation.
Why Choose Our Flexographic Printing Machine?
Our flexo printing press is engineered for cost-effective, high-speed, and high-quality printing, making it a perfect solution for flexible packaging, label printing, and paper product industries. With low operational costs, easy maintenance, and eco-friendly ink compatibility, this machine ensures maximum productivity and profitability.
Technical parameters
Model | YT-2600 | YT-2800 | YT-21000 |
Max. width of printing material（mm） | 600mm | 800mm | 1000mm |
Max. printing width（mm） | 560mm | 760mm | 960mm |
Length range of printed product（mm） | 200-1100mm | 200-1100mm | 200-1100mm |
Max. diameter of roll material（mm） | ф450mm | ф450mm | ф450mm |
Printing speed（m/min） | 5-50m/min | 5-50m/min | 5-50m/min |
Thickness plate（mm） | 2.38mm | 2.38mm | 2.38mm |
Total power（kw） | 8kw | 10kw | 13kw |
Weight（kg） | 2000kg | 2500kg | 3000kg |
Overall dimensions（L*W*H）（mm） | 1900X1800X2300mm | 1900X2000X2300mm | 1900X2200X2400mm |
For more details or a free consultation, contact us today! 🚀
