Automatic Spout Inserter Sealing Machine | Stand-Up Pouch Spout Welding Machine

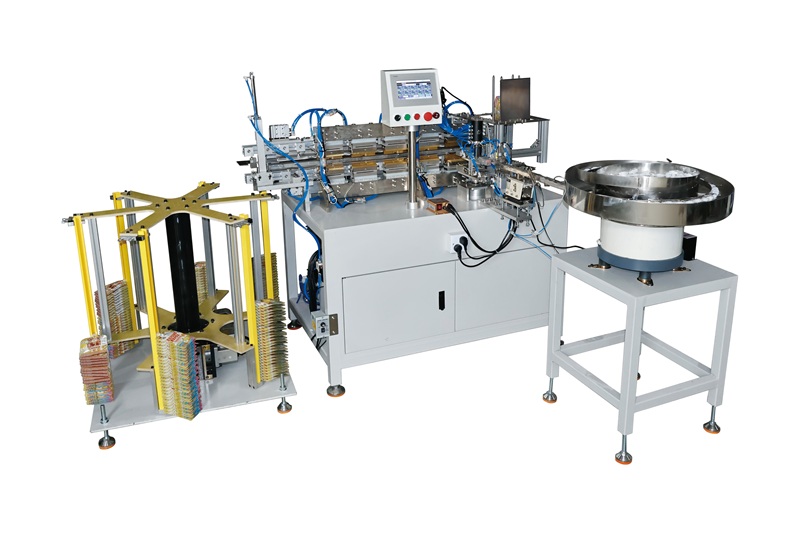

- Fully Automatic With Stacker
- Seal side spouts and central spouts
Description
Ruian Xuanhai Machine Professional Pouch Bag Making Machine Manufacturer
🏭 China Manufacturer 🔧 Custom Spout Size ⚡ In Stock

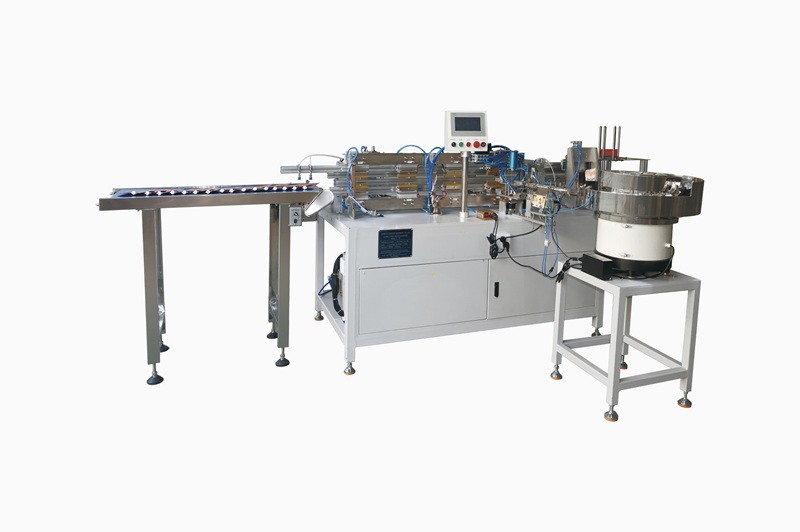

Automatic Spout Inserter Sealing Machine — Stand-Up Pouch Spout Welding
High-speed automatic spout inserting and heat-sealing machine for stand-up doypack pouches. Handles juice, coconut cream, detergent, cosmetics and food packaging — up to 32 pcs/min with precise, leak-proof spout alignment every cycle.
Key Specs at a Glance
Speed: 26–32 pcs/min
Bag Length: 100–400mm
Bag Width: 70–300mm
Spout Size: 8–22mm
Voltage: 380V
Weight: 400kg
📩 Request a Free Quote
Fast response within 24 hours · Factory direct pricing
Product Description — Automatic Spout Inserter Sealing Machine
Also known as: automatic spout pouch welding machine · nozzle bag inserting machine · doypack spout capping machine · stand-up pouch spout sealer
The Automatic Spout Inserter Sealing Machine is an industrial-grade solution for high-volume production of stand-up pouches with spout nozzles. Designed for manufacturers who need to scale beyond manual operation, this machine automatically inserts and heat-seals spouts onto pre-formed doypack pouches at speeds of 26–32 pieces per minute — delivering consistent, leak-proof seals with zero manual intervention per cycle.
Compatible Spout Types
This machine is engineered to work with virtually all standard spout and nozzle types used in flexible packaging today. Supported spout diameters include 8mm, 8.6mm, 10.6mm, 13mm, 16mm, and 22mm, with custom tooling available for non-standard profiles. Compatible cap and nozzle styles include:
Screw-cap spouts — the most common format for juice, dairy, and detergent pouches
Flip-top / sports cap spouts — widely used for functional beverages and baby food
Flat-cap nozzles — popular for cosmetic and personal care applications
Pull-out spouts — used for refill and concentrated product packaging
Wide-mouth spouts (22mm) — ideal for viscous liquids such as sauces, yogurt, and creams
Seal Side Spouts & Central Spouts — Both Supported
A key advantage of this machine is its ability to handle both seal-side spout pouches and centrally positioned spout pouches. Whether your pouch design places the spout at the top center (central spout doypack) or offset along the top seal edge (side-seal spout pouch), the machine can be configured accordingly — giving you full flexibility across different packaging formats and market requirements.
Compatible Pouch Types
The machine accommodates a wide range of flexible pouch formats commonly used across food, beverage, personal care, and household product industries:
Stand-up doypack pouches — the most popular format for retail spouted packaging
Flat-bottom pouches — ideal for premium retail presentation
Spouted pillow pouches — commonly used for refill and bulk liquid products
Shaped / contour pouches — used for premium juice and cosmetic brands
Retort pouches — for shelf-stable food and beverage applications (subject to material spec)
Compatible film materials include PE, PP, PET/PE laminates, NY/PE, aluminum foil composites, and other co-extruded structures with a film thickness of 0.1–0.15mm. Pouch capacity range supported: 100ml to 1,000ml, with bag lengths from 100–400mm and widths from 70–300mm.
Whether you are upgrading from a manual spout welding machine or building a new high-throughput packaging line, this automatic spout inserter delivers higher output, lower labor cost, and perfect spout alignment on every pouch — with minimal operator involvement.
Machine Video Demonstration
See the automatic spout inserter sealing machine in action
Key Features & Benefits
Why manufacturers choose this automatic spout pouch sealing machine
High-Speed Automation
26–32 pcs/min continuous output. Eliminates manual labor per cycle, dramatically increasing throughput for high-volume production lines.
Precise Spout Alignment
Automatic spout feeding and positioning system ensures perfect nozzle alignment and a consistent, leak-proof seal on every pouch.
Wide Size Compatibility
Handles pouches from 100–400mm long and 70–300mm wide. Supports 6 standard spout diameters from 8mm to 22mm.
Stainless Steel Construction
Food-grade stainless steel frame — durable, corrosion-resistant, and easy to clean. Compliant with food and beverage hygiene requirements.
Multi-Material Compatible
Works with plastic, laminated, and aluminum foil pouches across a wide range of film thicknesses (0.1–0.15mm).
Custom Spout Size Available
Machine tooling can be configured for your specific spout nozzle profile — flat caps, screw caps, sports caps, and more.
Seal Side & Central Spouts
Supports both side-seal spout pouches and centrally positioned spout doypacks — giving full flexibility across all major pouch formats.
All Major Pouch Types
Compatible with stand-up doypacks, flat-bottom pouches, pillow pouches, shaped pouches, and retort pouches from 100ml to 1,000ml.
Technical Specifications
Automatic Spout Inserter Sealing Machine — Full Parameter Table
| Product Name | Automatic Spout Insert Sealing Machine |
| Production Speed | 26–32 pcs/min (product-dependent) |
| Suitable Bag Length | 100–400mm |
| Suitable Bag Width | 70–300mm |
| Spout Diameter Supported | 8mm, 8.6mm, 10.6mm, 13mm, 16mm, 22mm |
| Pouch Film Thickness | 0.1mm – 0.15mm |
| Voltage | 380V |
| Machine Dimensions (L×W×H) | 3000 × 2000 × 1200mm |
| Machine Weight | 400kg |
| Frame Material | Stainless steel (food-grade) |
| Origin | Ruian, Zhejiang Province, China |
Machine Images
Detail views of the spout feeding system, sealing station, and control unit

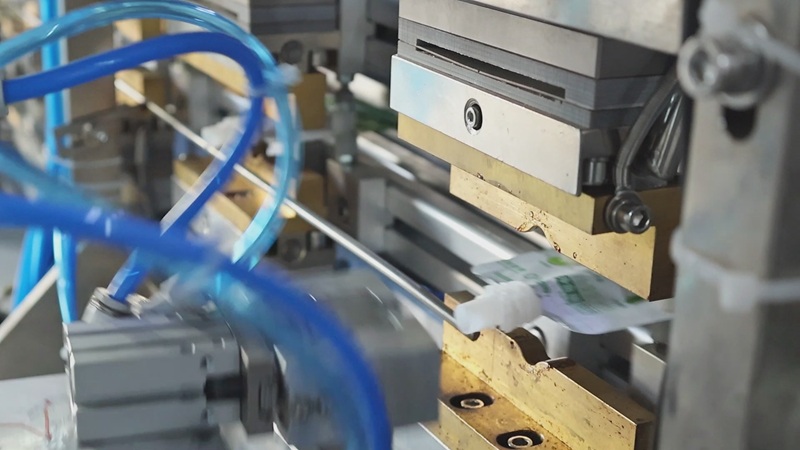

Spout feeding & insertion system

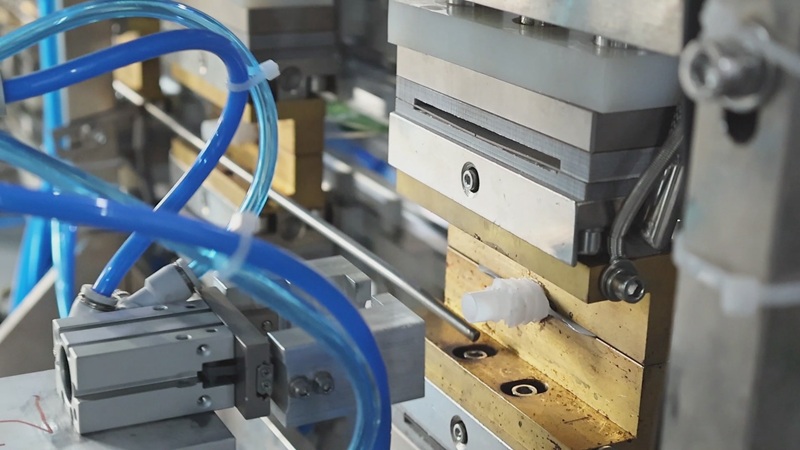

Heat sealing station
Control panel & drive system
Machine structure detail
Finished Product Display
Stand-up doypack pouches with welded spout nozzles produced by this machine
Finished spouted stand-up pouches
Food & beverage spout pouch samples
Application Industries
What products can be packaged with this automatic spout pouch sealing machine?
🥤
Juice & Beverages🥥
Coconut Cream & UHT Milk🍼
Baby Food & Purees🧴
Liquid Detergent💄
Cosmetics & Lotions🫙
Sauces & Condiments💧
Water & Sports Drinks♻️
Refill PackagingManual vs. Automatic — Which Machine Do You Need?
A side-by-side comparison to help you choose the right spout pouch sealing machine for your production volume
| Criteria | Manual Spout Sealing Machine | ✅ This Automatic Machine |
|---|---|---|
| Production Speed | 500–1,200 pcs/hr | 1,560–1,920 pcs/hr (26–32 pcs/min) |
| Operators Required | 1 operator per machine | 1 operator monitors multiple machines |
| Spout Insertion | Manual per cycle | Fully automatic |
| Seal Consistency | Operator-dependent | 100% consistent, machine-controlled |
| Best For | Labs, startups, small batches | Medium-to-high volume production lines |
| Daily Output (8hr shift) | 4,000–9,600 pcs | 12,480–15,360 pcs |
| Investment Level | Low | Medium — fast ROI at scale |
🧪
Daily output < 5,000 pcs
→ Manual spout sealing machine recommended. Low investment, ideal for R&D and small-batch production.
⚡
Daily output 5,000–20,000 pcs
→ This automatic machine is the ideal match. Maximizes throughput while minimizing labor cost.
🏭
Daily output > 20,000 pcs
→ Multi-head or fully integrated line solution recommended. Contact us for a custom proposal.
How the Automatic Spout Inserter Works
A step-by-step overview of the automatic spout insertion and sealing process
1
Pouch Feeding
Pre-formed stand-up pouches are loaded into the magazine and fed automatically into the machine one by one.
2
Pouch Opening
The top seal edge of the pouch is precisely opened at the spout insertion point, ready to receive the nozzle.
3
Spout Feeding
Spout nozzles are fed from a hopper via a vibratory bowl feeder and aligned automatically for consistent positioning.
4
Spout Insertion
The spout is precisely inserted into the pouch opening — centrally or at the seal side — at the correct depth and angle.
5
Heat Sealing
Heated sealing jaws clamp the pouch film around the spout base under controlled temperature and pressure, forming a leak-proof bond.
✓
Output & Counting
Finished sealed pouches are discharged, and the built-in counter logs production quantities automatically for shift reporting.
After-Sales Support & Service
What you get after the machine arrives — because support matters as much as the machine itself
🛡️
12-Month Warranty
All machines are covered by a 12-month warranty on mechanical and electrical components from the date of shipment.
🎥
Remote Video Installation
Our engineers provide full installation guidance and operator training via video call — at no additional cost.
🔩
Spare Parts Supply
Key wear parts and spare components are available for fast dispatch. A recommended spare parts kit can be included with your order.
📋
Full Documentation
Each machine ships with an English-language operation manual, electrical diagram, and parts list for easy in-house maintenance.
💬
Lifetime Technical Support
Our technical team is reachable via WhatsApp, WeChat, and email for troubleshooting and adjustment guidance beyond the warranty period.
🧪
Pre-Shipment Testing
Every machine is run-tested and inspected before shipment. Video evidence of the test run is provided to the buyer on request.
Quality Standards & Certifications
Built to international quality and safety standards for global export
🇪🇺
CE Certified
Meets European machinery safety and electromagnetic compatibility directives. Suitable for import into EU markets.
🏅
ISO 9001 Manufacturer
Produced under an ISO 9001-certified quality management system ensuring consistent design, manufacturing, and inspection standards.
🍽️
Food-Grade Construction
Stainless steel contact parts meet food-grade hygiene requirements, suitable for juice, dairy, and baby food packaging environments.
📦
Export Packaging Standard
Shipped in reinforced wooden crates with anti-rust treatment and moisture-proof lining, compliant with international sea-freight standards.
Packaging, Shipping & Lead Time
Everything you need to know before placing an import order
📦 Export Packaging
Packed in: Reinforced wooden crate
Gross weight: approx. 480kg
Crate dimensions: ~3200 × 2200 × 1400mm
Anti-rust & moisture-proof treatment included
Gross weight: approx. 480kg
Crate dimensions: ~3200 × 2200 × 1400mm
Anti-rust & moisture-proof treatment included
🚢 Shipping Method
Sea freight (recommended): FCL or LCL
Air freight: available for urgent orders
Container: fits in 20GP (1 unit) or 40GP (multiple units)
Trade terms: FOB Ningbo / Shanghai, CIF, or EXW
Air freight: available for urgent orders
Container: fits in 20GP (1 unit) or 40GP (multiple units)
Trade terms: FOB Ningbo / Shanghai, CIF, or EXW
🗓️ Lead Time
Standard: 20–35 working days
Custom mold / special spout: +7–10 days
Rush orders: contact us to confirm availability
Payment: T/T 30% deposit, 70% before shipment
Custom mold / special spout: +7–10 days
Rush orders: contact us to confirm availability
Payment: T/T 30% deposit, 70% before shipment
📄 Export Documents
Commercial invoice & packing list
Bill of lading (B/L)
Certificate of Origin (CO)
CE certificate (on request)
HS Code: 8422.30
Bill of lading (B/L)
Certificate of Origin (CO)
CE certificate (on request)
HS Code: 8422.30
Related Products You May Also Need
Complete your spout pouch packaging line with these complementary machines
🖐️
Manual Spout Pouch Insert Sealing Machine
500–1,200 pcs/hr · Ideal for labs, startups & small-batch production · Foot-switch operation · Custom mold available
View Product →
🏭
Full Plastic Bag Making Machine Range
Explore our complete catalogue of bag making and sealing machines for all flexible packaging formats and production scales.
View All Products →
🔗
Need a Complete Packaging Line?
We can design and supply a full turnkey spout pouch production line — from bag making to spout insertion, filling, and capping. Contact us for a custom solution.
Contact Us →
Frequently Asked Questions
Common questions about the automatic spout inserter sealing machine
What spout sizes does this machine support?
The machine supports six standard spout diameters: 8mm, 8.6mm, 10.6mm, 13mm, 16mm, and 22mm. Custom tooling can also be manufactured for non-standard spout profiles. Please provide your spout specifications when requesting a quote.
What is the difference between this automatic machine and the manual spout sealing machine?
The automatic machine feeds, inserts, and seals spouts without manual intervention per cycle, achieving 26–32 pcs/min. The manual machine requires an operator to insert each spout individually, outputting 500–1,200 pcs/hour. The automatic model is suited for medium-to-high volume production lines; the manual model is ideal for labs, startups, and small-batch runs.
What pouch materials are compatible?
The machine is compatible with plastic, laminated, and aluminum foil composite pouches, including PE, PP, PET/PE, NY/PE, and foil laminates. Film thickness should be in the range of 0.1–0.15mm for optimal sealing results.
Does the machine require three-phase power?
Yes, the machine operates on 380V three-phase power, which is standard for industrial equipment in most countries. Please confirm your local power supply specification when placing an order so we can advise on any required configuration.
What is the lead time and how is the machine shipped?
Standard lead time is approximately 20–35 working days after order confirmation. Due to its size (3000×2000×1200mm) and weight (400kg), the machine is shipped by sea freight in a wooden crate. We handle all export documentation and can ship worldwide on FOB or CIF terms.
