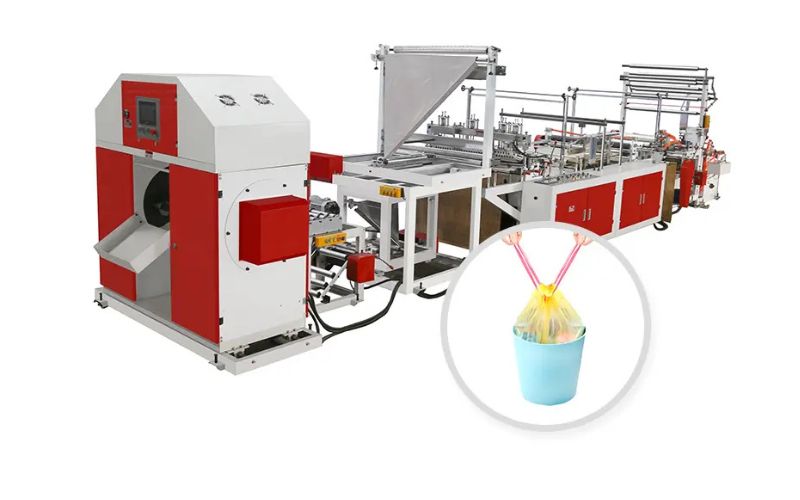

Automatic Poly Draw Garbage Bag On Roll Making Machine To Make Plastic Trash Bag For Rubbish

Description

Performance and characteristics:

This high-performance garbage bag making machine is designed for the efficient production of various drawstring garbage bags and continuous rolling trash bags. It is ideal for manufacturing flat-sealed drawstring trash bags, perforated roll rubbish bags, and continuous roll rope-threaded garbage bags.

Key Features:

✅ Specialized for Drawstring Garbage Bags – Perfect for rope-threaded trash bags, tie-string garbage bags, and self-closing waste bags.
✅ Continuous Rolling & Perforation Technology – Ensures smooth and efficient production of roll garbage bags with precise perforation for easy tearing.
✅ Versatile Material Compatibility – Supports LDPE, HDPE, biodegradable materials, and recycled plastic film for eco-friendly waste bag production.
✅ Automatic Threading & Sealing System – Advanced technology enables automated rope threading, sealing, and cutting, increasing efficiency.
✅ Adjustable Bag Sizes & Customization – Flexible settings for producing various sizes of drawstring trash bags to meet different market demands.
✅ Servo Motor & PLC Control – Ensures precise positioning, high-speed operation, and user-friendly controls for seamless production.

This fully automatic garbage bag making machine is the perfect solution for waste bag manufacturers, offering high-speed production, strong sealing, and precise threading to meet market demands for heavy-duty, leak-proof, and easy-to-use trash bags.

Performance and characteristics:

1. This machine is manufactured by our company using advanced technology both domestically and internationally.

2. Adopting computer control and servo motor structure model.

3. Equipped with photoelectric automatic tracking,white bag and color bag conversion functions, microcomputer fixed length, automatic counting, arrival alarm, and automatic temperature control.

4. Equipped with automatic breaking, punching (piercing), semi circular hole, rope threading, edge sealing,bottom sealing, point breaking, folding, continuous rolling and splitting mechanical devices.

5. Adopting a copper knife point tooth sealing structure, the sealing and point breaking are synchronized, and the bottom sealing is firm and beautiful.

6. This machine can process continuous rolling and threading garbage bags, with functions of continuous rolling flat pockets and flat pockets.

7. The entire machine adopts a one-stop production line with high automation, making it an ideal equipment for making

wearable garbage bags and an advanced equipment to replace imported similar products

Technical parameters

Max width of finished bag (left and right width of bag)	600mm
Maximum depth of finished bag (from bag mouth to bag bottom)	700mm
Effective cutting thickness	0.01mm-0.03mm
Working speed	50—130pcs/min
Cutting accuracy	±0.5mm
Total power	20KW
Machine weight	3000KG
Machine dimensions	12000mm×2400mm×1800mm
