High-Speed Disposable Glove Making Machine | LDPE/HDPE Plastic Gloves Manufacturing Equipment
Description
HDPE / LDPE / CPE Compatible · Model XH-PE500A
Automatic HDPE Disposable
Plastic Gloves Making Machine
Industrial-grade fully automatic glove production line engineered for food, medical, and personal care manufacturers — 160 pcs/min output, servo-motor precision, zero manual trimming.
CE Certified
Ships in 30 Days
1-Year Full Warranty
200+ Customers Worldwide
Lifetime Technical Support
Product Overview
What Is the HDPE Disposable Gloves Making Machine?
The HDPE disposable plastic gloves making machine (Model XH-PE500A) is a fully automated thermoplastic film converting system that produces disposable PE gloves from raw HDPE or LDPE roll stock in a single, continuous process — no manual trimming or sorting required.
Unlike conventional bag-making machines repurposed for gloves, the XH-PE500A incorporates a precision-profiled heat-seal die engineered specifically for hand anatomy. Combined with servo-controlled film feeding and integrated automatic waste stripping, it eliminates the three most common sources of quality defects: seam leakage, dimensional inconsistency, and cross-contamination from manual handling.
This makes the machine the preferred choice for food glove manufacturers supplying quick-service restaurants (QSRs), catering companies, supermarket chains, and medical consumable distributors who must meet strict hygiene standards.
How It Works

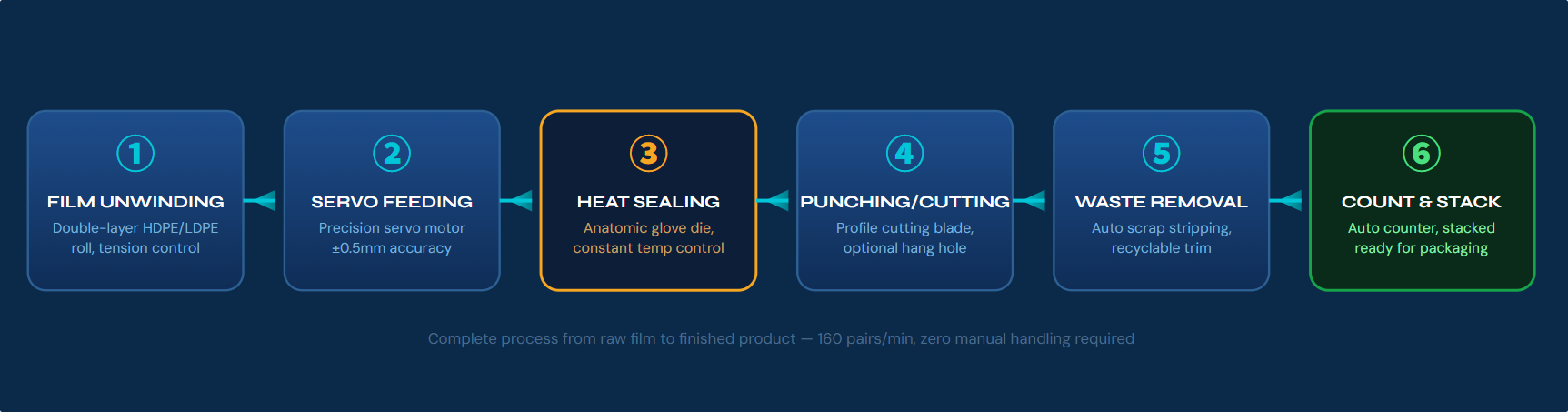

6-Step Automatic Glove Production Process
From raw HDPE film roll to finished, counted, and stacked gloves — fully automated in a single pass.
Technical Data
Machine Specifications — Model XH-PE500A
| Parameter | Value |
|---|---|
| Model | XH-PE500A |
| Max Unwind Roll Diameter | Ø 600 mm |
| Glove Width Range | 240 – 300 mm |
| Glove Length Range | 200 – 350 mm |
| Production Speed | Up to 160 pairs/min |
| Film Thickness | 0.008 – 0.020 mm |
| Motor Power | 4.8 kW |
| Machine Weight | 1,000 kg |
| Overall Dimensions (L×W×H) | 3000 × 1050 × 1850 mm |
| Control System | Microcomputer PLC, touchscreen HMI |
| Drive System | Servo motor + three-phase hybrid |
| Compatible Materials | HDPE, LDPE, CPE, Biodegradable PE |
| Certification | CE (electrical safety) |
Output Comparison: Manual vs. XH-PE500A
Engineering Advantages
6 Reasons Manufacturers Choose XH-PE500A
Each feature addresses a real production pain point — not a marketing checkbox.
Servo-Motor Precision Drive
Servo motor controls film advance with ±0.5mm positional accuracy, ensuring consistent glove dimensions across every production batch — critical for clients with strict dimensional tolerances.
Zero-Touch Waste Separation
Integrated automated scrap stripping system removes film matrix and delivers finished gloves directly to the stacking zone — no operator needed for waste handling, reducing contamination risk.
Touchscreen PLC Control
Full-colour HMI touchscreen lets operators set glove length, count batches, monitor temperature zones, and configure production presets — all without PLC programming knowledge.
Multi-Material Compatibility
A single machine processes HDPE, LDPE, CPE, and certified biodegradable PE film without hardware changes — simply adjust temperature and tension parameters on the HMI screen.
Quick-Change Die System
Heat-seal glove dies are tool-free swappable in under 15 minutes. Stock S/M/L/XL dies as standard; custom anatomical shapes for hair-dye, veterinary, or industrial long-arm gloves available on request.
Energy-Efficient Operation
At 4.8 kW total power draw, the XH-PE500A consumes up to 40% less electricity per thousand pairs than comparably-rated machines, thanks to servo-drive energy recovery and optimised heat-zone control.
Market Applications
Where Are These Gloves Used?
HDPE disposable gloves made on this production line serve seven primary markets globally.
Quick-Service Restaurants
Food Processing Plants
Beauty Salons & Hair Dye
Medical & Clinics
Supermarket & Retail
Hotels & Hospitality
Gardening & Farming
Industrial & Paint Work
Competitive Intelligence
XH-PE500A vs. Market Alternatives
A transparent comparison of the features that matter most to production managers sourcing a glove making machine.
| Feature | Xuanhai XH-PE500A | Typical Chinese OEM | Southeast Asian Supplier |
|---|---|---|---|
| Servo Motor Drive | ✔ Full servo | ✘ Stepper only | ✘ Stepper only |
| Auto Waste Separation | ✔ Fully automated | ⚠ Semi-auto option | ✘ Manual |
| Touchscreen HMI (PLC) | ✔ Standard | ⚠ Basic display | ✘ Push-button panel |
| Output (single lane) | ✔ 160 pairs/min | ⚠ 80–100 pairs/min | ⚠ 60–80 pairs/min |
| Multi-material (HDPE+LDPE+CPE) | ✔ All three | ⚠ HDPE+LDPE only | ✘ HDPE only |
| CE Certification | ✔ Included | ⚠ Optional surcharge | ✘ Not available |
| Warranty | ✔ 1 year + lifetime support | ⚠ 6 months parts only | ✘ 3 months |
| Custom Die Shapes | ✔ Any profile, 7-day lead | ⚠ Standard shapes only | ✘ Not offered |
Investment Calculator
Estimate Your Production ROI
Input your target parameters to see how quickly the XH-PE500A pays for itself. Based on real customer data from 40+ deployments.
Most customers operating single-shift (8hr/day) reach machine cost breakeven in 6–14 months, depending on local glove selling prices and labour costs saved.
📊 Estimated Annual Output & Revenue
Pairs per year—
Gross revenue (USD)—
Labour cost saved vs. manual (3 workers)—
Estimated payback period—
Frequently Asked Questions
Common Questions from Buyers
The XH-PE500A processes HDPE (High-Density Polyethylene), LDPE (Low-Density Polyethylene), CPE (Chlorinated Polyethylene), and certified biodegradable PE film in thicknesses from 0.008mm to 0.02mm. Material switching requires only temperature and tension adjustments via the HMI — no hardware changes needed.
The XH-PE500A produces up to 160 pairs per minute on a single lane. Multi-lane expansion configurations (dual or quad lane) push total output to 320–400+ pcs/min. Actual production rate depends on glove size, film thickness, and ambient temperature stability.
Yes. All XH-PE500A units ship with CE electrical safety certification. For FDA food-grade compliance of the output gloves, the raw film material must be sourced to FDA 21 CFR standards — Xuanhai can refer trusted certified film suppliers upon request.
Standard production lead time is 30 days from receipt of deposit. Machines are fully assembled and run-tested before shipment. Export packaging (fumigated wooden crate) and all shipping documents (commercial invoice, packing list, COO, CE declaration) are provided as standard.

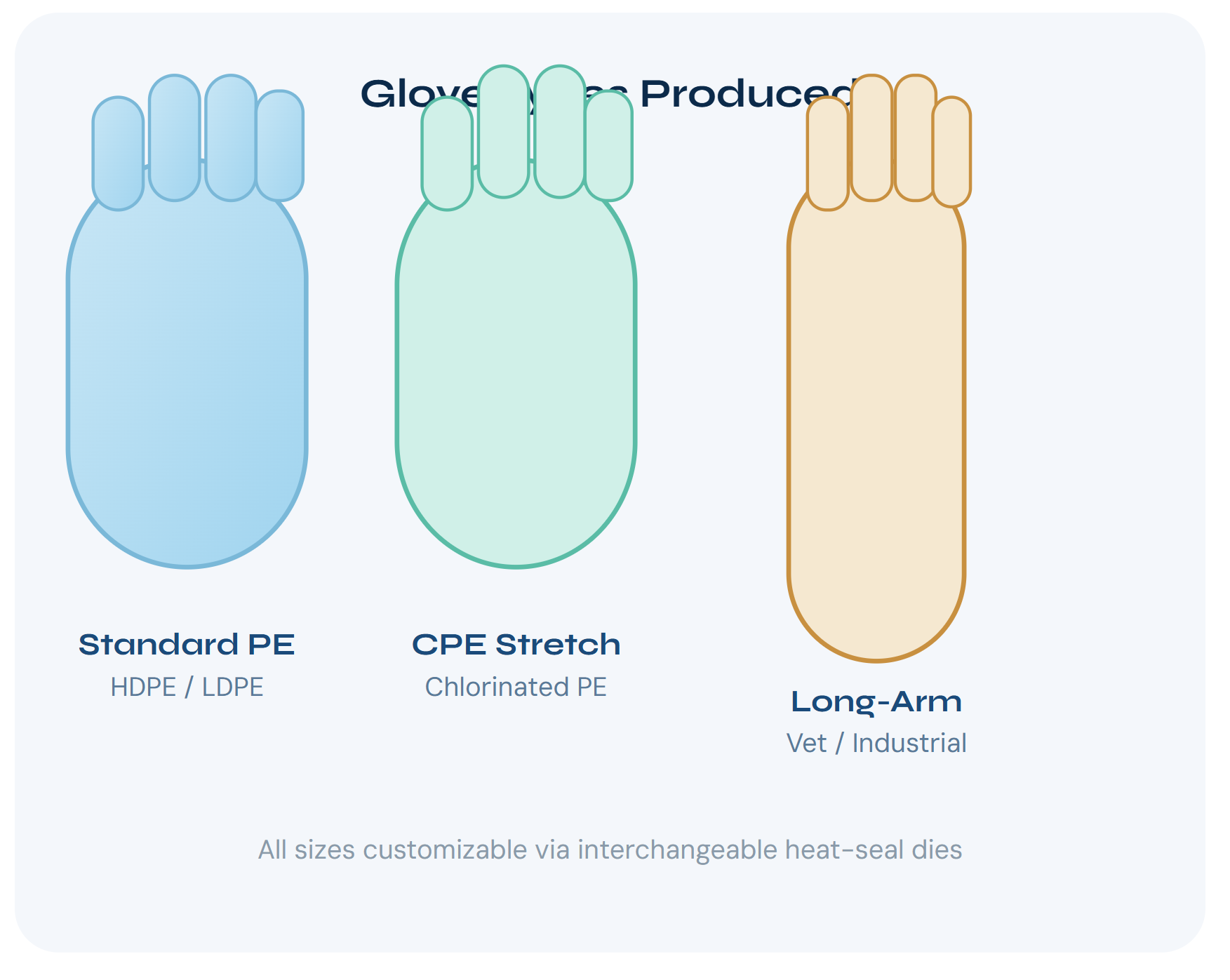

Yes. Glove size and shape are determined by interchangeable heat-seal dies. Standard S/M/L/XL dies are available. Custom anatomical shapes (e.g. hair-dye gloves, veterinary long-arm gloves, apron-shaped covers) can be manufactured from customer drawings with a 7–10 day die production lead time.
All machines include: 1-year comprehensive warranty with free spare parts; remote installation guidance and video tutorials; WhatsApp/WeChat direct engineer support; on-site installation available at buyer's cost. Spare parts (heating elements, blades, servo components) are stocked and dispatched within 48 hours.
One operator is sufficient for normal production — monitoring the touchscreen panel, loading film rolls, and removing finished stacks from the output conveyor. The integrated auto-waste separation system eliminates the additional 2–3 workers typically required on conventional machines for manual scrap removal.
