Description
The Foil curtain making machine is used to make the metallic tinsel foil fringe curtain for decoration. The equipment adopts advanced automatic control counting and automatically completes the process of feeding film to the finished product. It is simple and efficient, saves labor, and is suitable for PE, PP, PET, and BOPP materials.
Machine Advantages
1. The length of the rain wire is set and cut immediately, no need to adjust the idling, one step in place, saving time and film.
2. Man-machine interface, convenient and quick parameter setting.
3. Fault self-diagnosis function, fault display is clear at a glance.
4. High-sensitivity photoelectric eye color mark tracking, digital input sealing and cutting position, accurate sealing,and cutting.
5. Positioned stop function, no knife sticking, no wasting film.
6. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
Sample usageThe produced metal foil tassel rain curtain is durable and environmentally friendly, suitable for one-time use in home decoration, weddings, hotels, parties, restaurants, etc., used as partitions, curtains, and wall decorations.
Technical parameters
Model No. | YL-1000 |
Speed | 12m/min (for 2m curtain is 360pcs/h) |
Maximum width | 1000mm/1200mm |
Conveyor size | 3000*1300*650mm |
Main Machine size | 2420*1865*1081mm |
Machine weight | 600kg |
Feeding device | Manual feeding of pneumatic shaft |
Control device | PLC+servo control, automatic cutting |
Counting function | Automatic counting |
Reclaiming method | Manual collection |

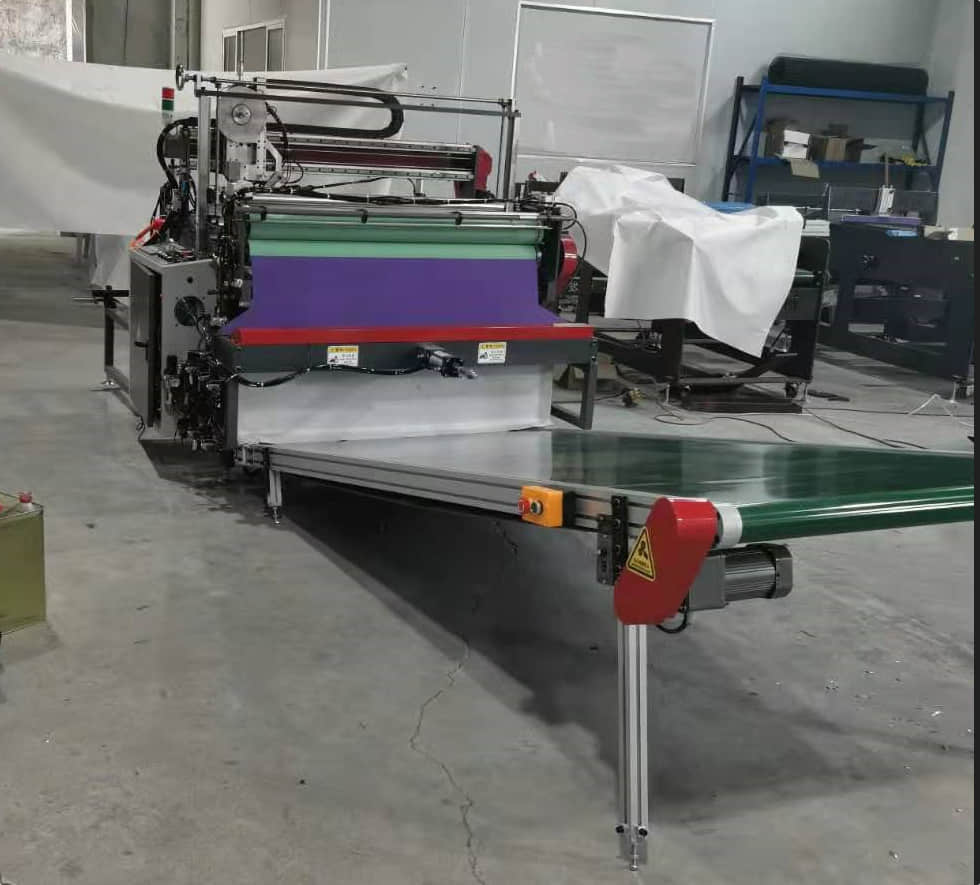

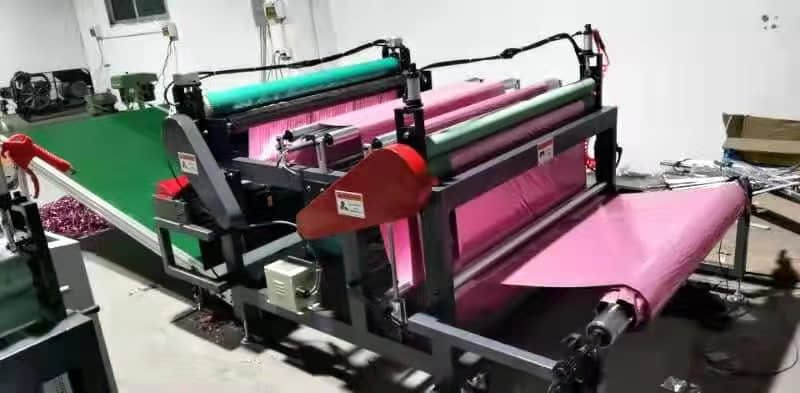

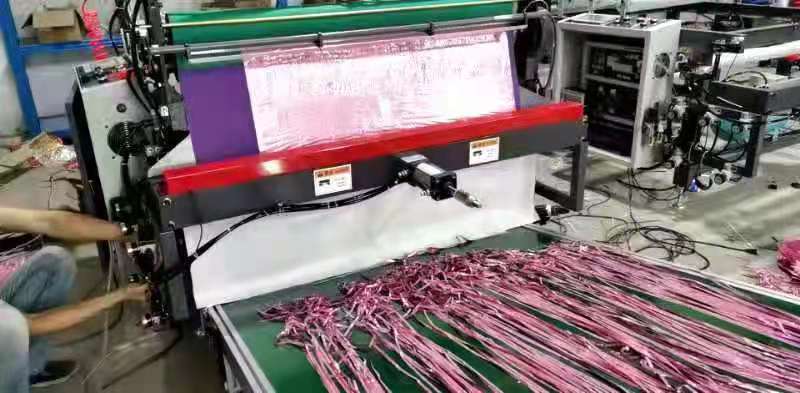

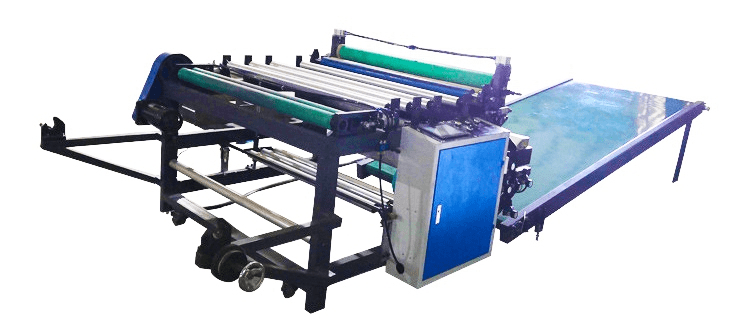

Machine image

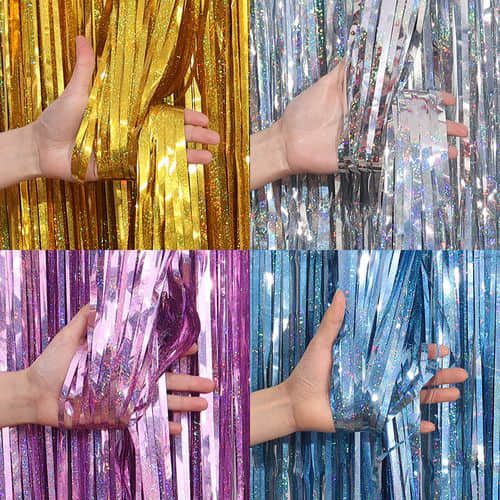

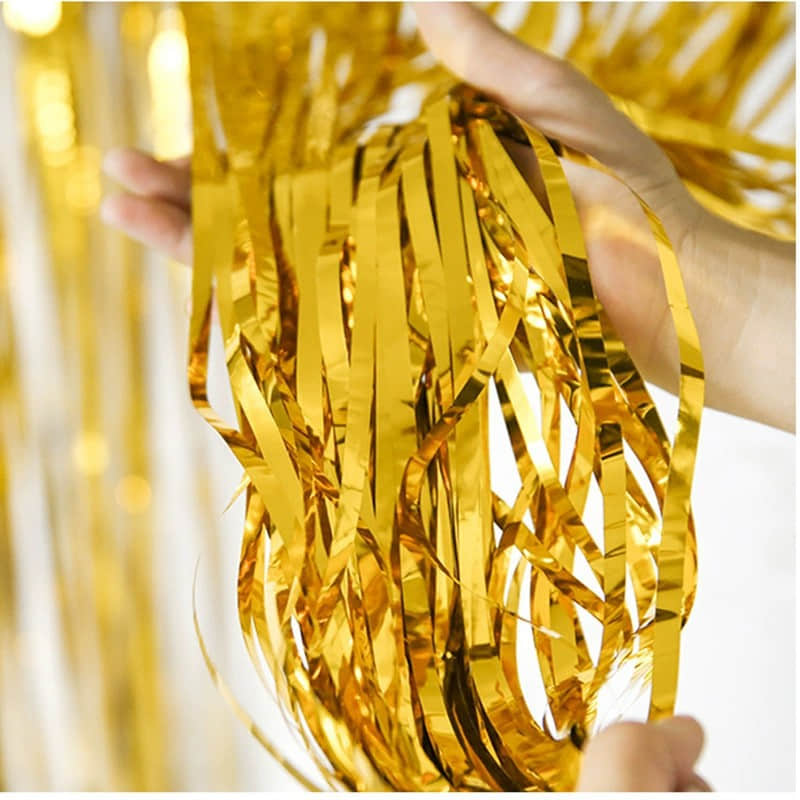

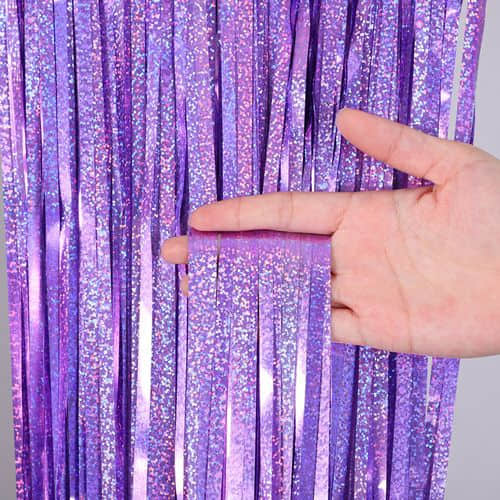

Finished product picture
