PVC & PET Shrink Sleeve Label Cutting Machine — QP-350
High-speed automatic shrink sleeve cutter for PVC, PET, PE heat-shrinkable films. Photocell tracking, single-chip control, optional perforation. Designed for beverage, battery and flexible packaging production lines.
500
pcs / min
330mm
Max Width
600mm
Max Length
Processes PVC, PET, PE shrink films and trademark compound films
Photocell tracking with single-chip microcontroller for precision cutting
Optional vertical & horizontal perforation for easy-tear labels
Optional conveyor belt for seamless inline production integration
4 model widths available: 350 / 400 / 500 / 600 mm
🔒 No spam. Response within 24 hours. Factory price guaranteed.
Product Overview
What Is a Shrink Sleeve Label Cutting Machine?
A shrink sleeve label cutting machine is a specialized piece of packaging equipment that precisely cuts heat-shrinkable tube film — such as PVC, PET, or PE — into individual label blanks of a specified length. These blanks are then applied to bottles, cans, or containers and shrunk using a heat tunnel to achieve a tight, tamper-evident, full-body label finish.
The QP-350 from Ruian Xuanhai Machine Co., Ltd. is an industrial-grade, high-speed automatic cutting machine designed to serve as the core cutting unit in a complete shrink sleeve labeling production line. With a throughput of up to 500 pieces per minute and support for multiple film types, it is widely deployed in beverage bottling, battery packaging, and cosmetics labeling operations across Asia, Europe, and the Americas.
Unlike generic film cutters, the QP-350 is engineered specifically for shrink sleeve materials — which can be elastically deformed under heat — requiring more precise tension control and cutting geometry than standard flat-film applications.
Technical Specifications
QP-350 Machine Specifications
Parameter
Specification
Model No.
QP-350 / QP-400 / QP-500 / QP-600
Max. Width of Sealing & Cutting
330 mm
Max. Length of Sealing & Cutting
600 mm
Production Speed
500 pcs/min
Main Motor Power
1.1 kW
Machine Weight
600 kg
Machine Dimensions (L×W×H)
2100 × 700 × 1000 mm
Compatible Materials
PVC, PET, PE shrink film, trademark compound film
Control System
Single-chip microcontroller with photocell tracking
Perforation
Optional — vertical and/or horizontal
Conveyor Belt
Optional add-on
Power Supply
220V / 50Hz (customizable)
Model Comparison
Choose the Right Model Width for Your Line
The QP series is available in four standard working widths to accommodate different shrink sleeve diameters and production volumes. The QP-350 is the most popular entry point for single-line operations.
Specification
QP-350
QP-400
QP-500
QP-600
Max. Sealing Width
330 mm ★
380 mm
480 mm
580 mm
Max. Cutting Length
600 mm
600 mm
600 mm
600 mm
Speed
500 pcs/min
500 pcs/min
400 pcs/min
350 pcs/min
Best For
Beverage / Battery
Cosmetics / Food
Large Containers
Industrial Drums
★ QP-350 highlighted. Contact us for custom widths or dual-lane configurations.
Machine Views

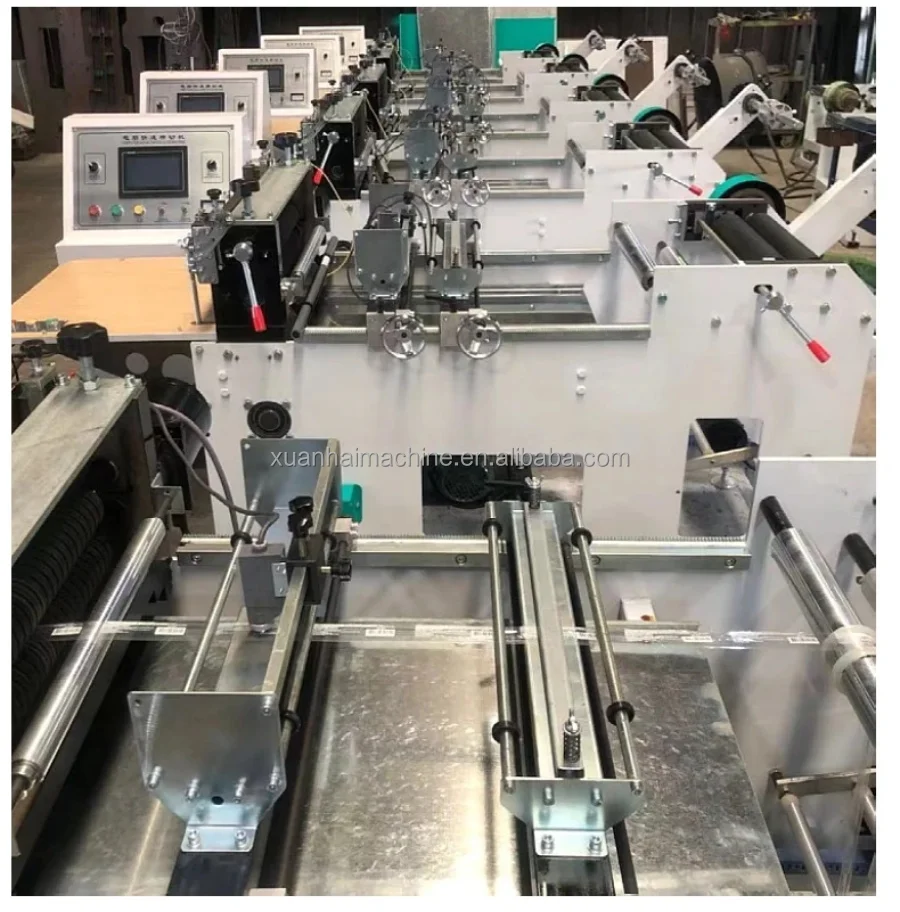

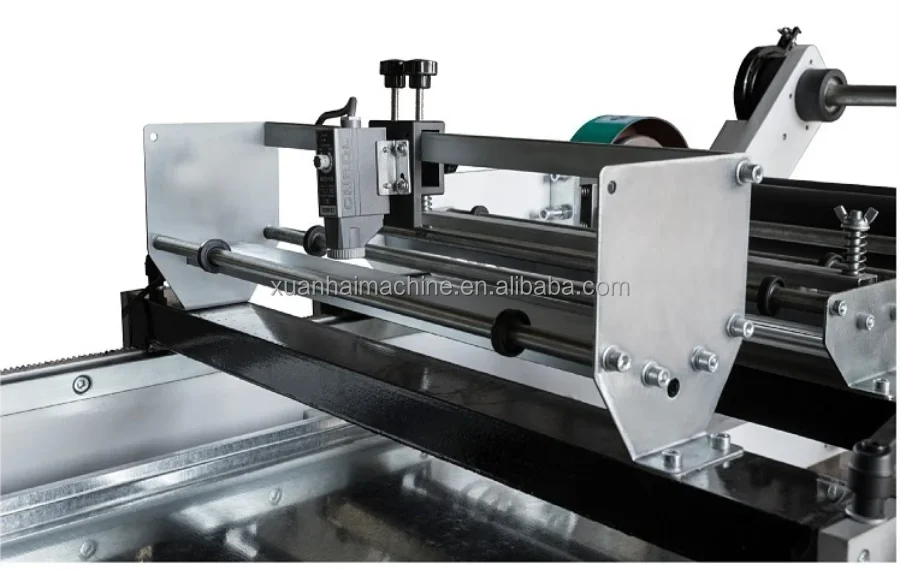

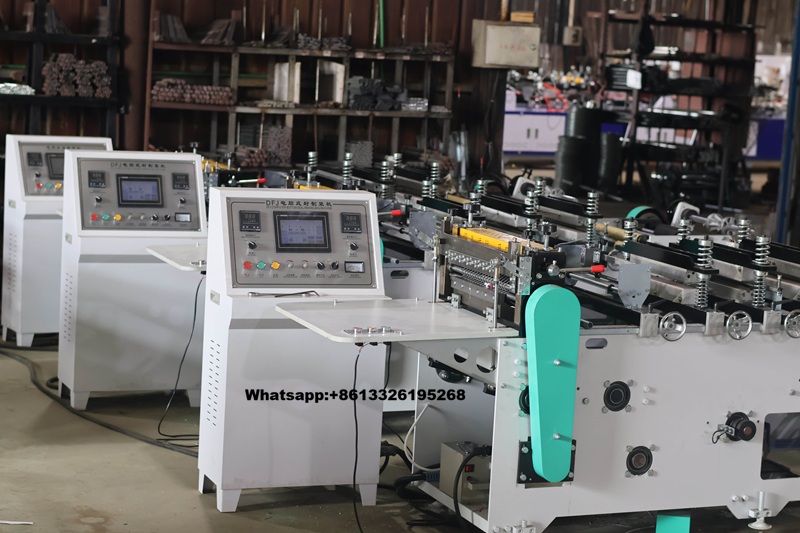

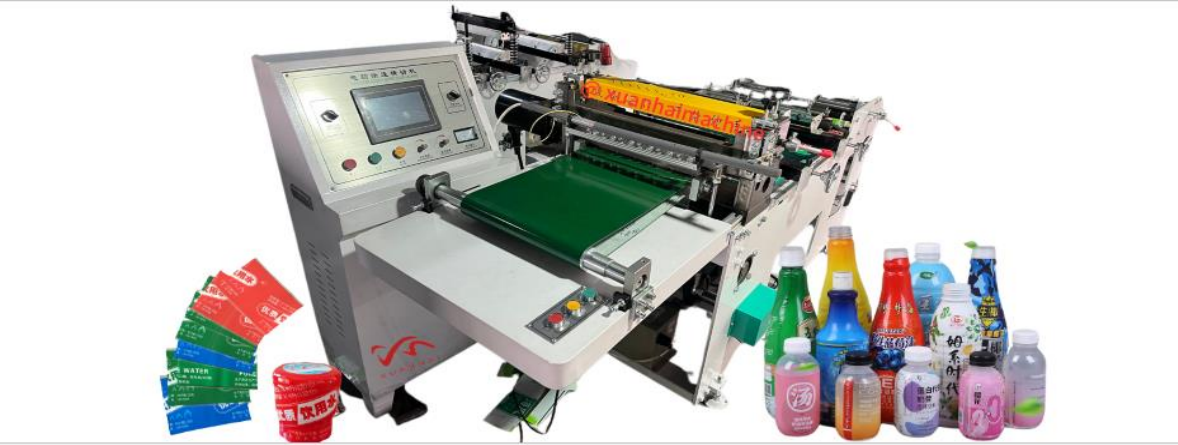

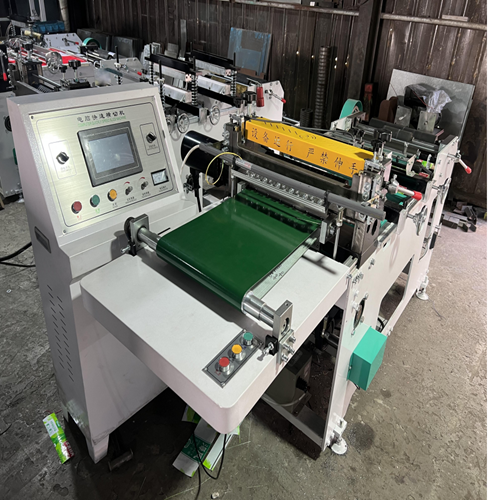

QP-350 Machine Detail Photos
Video Demonstration
See the QP-350 in Action
Watch the QP-350 shrink sleeve cutting machine performing high-speed precision cutting with photocell registration. The video demonstrates the consistent cut quality and label feeding stability at production speeds.
QP-350 PVC/PET Shrink Sleeve Label Cutting Machine — Live Production Footage · Ruian Xuanhai Machine Co., Ltd.
Applications
Industries & Packaging Types This Machine Serves
The QP-350 is designed for any operation that applies heat-shrinkable sleeve labels at high volume. Common deployment scenarios include:
🍺
Beverage Bottles
Water, juice, beer, carbonated drinks. Full-body and neck-band sleeve cutting for PET and glass bottles.
🔋
Battery Packaging
AA, AAA, C-cell, D-cell, and lithium battery sleeve labels. High precision required for small-diameter cylindrical cells.
🧴
Cosmetics & Personal Care
Shampoo, lotion, and skincare bottle sleeve labels. Supports tamper-evident band cutting.
💊
Pharmaceutical
Supplement jars, OTC medicine bottles, and medical device packaging requiring easy-tear perforated sleeves.
🧂
Food & Condiments
Sauce bottles, seasoning jars, oil containers — full body or top/bottom banding configurations.
Many shrink sleeve cutters on the market are adapted general-purpose film cutters. The QP-350 is purpose-built for shrink sleeve production with several design features that matter in daily operation:
01
Photocell Mark Registration
Cuts precisely at the printed registration mark on each sleeve, ensuring consistent label positioning regardless of film tension variation — critical for multi-color printed sleeves.
02
Dual Perforation Options
Horizontal and vertical perforation blades can be installed simultaneously, enabling easy-tear functionality demanded by beverage and pharmaceutical applications without a secondary pass.
03
Multi-Material Compatibility
Unlike machines tuned only for PVC, the QP-350 handles low-shrink PET, PETG, OPS, and PE films with blade and tension parameter adjustment — reducing changeover time between orders.
04
Inline Conveyor Integration
Optional built-in conveyor synchronizes cut sleeve output directly to the sleeve applicator on the production line, eliminating manual handling and reducing contamination risk.
05
4 Width Configurations
The QP series scales from 350 mm to 600 mm working width within the same mechanical platform. Buyers can standardize on one supplier for multiple product SKUs.
06
Factory Direct Pricing
Manufactured and sold directly by Ruian Xuanhai Machine Co., Ltd., eliminating trading company markups. Spare parts and technical support sourced from the same factory.
Technical Process
How the QP-350 Cuts Shrink Sleeve Labels
The QP-350 follows a five-stage automatic process from raw film roll to finished cut label:
Film Loading. The operator mounts the shrink sleeve film roll onto the unwind stand. Tension rollers maintain consistent film feed throughout the roll.
Photocell Detection. A photocell sensor reads the eye-mark (registration mark) printed on each label repeat. This signal is sent to the single-chip controller.
Precision Cutting. The controller triggers the cutting blade at the exact registration point. Blade speed and film advance speed are synchronized for clean, burr-free cuts.
Perforation (if enabled). Before or after the transverse cut, the perforation wheel scores the label surface — horizontally across the label or vertically down the side — for consumer tear lines.
Output & Stacking. Cut labels are guided to the exit by a belt conveyor (optional) or gravity stacking tray, ready for manual loading or automated sleeve applicator feed.
Frequently Asked Questions
Common Questions About the QP-350
What shrink film materials can the QP-350 process?
−
The QP-350 is compatible with PVC (polyvinyl chloride), PET (polyethylene terephthalate), PETG, OPS, and PE (polyethylene) heat-shrinkable tube films, as well as multi-layer trademark compound films. Blade pressure and feed tension are adjustable to accommodate different film gauges and shrink ratios, typically ranging from 40% to 75% shrink.
What is the minimum and maximum cut length?
+
The standard minimum cut length is approximately 30 mm and the maximum is 600 mm per the published specification. Custom pitch lengths can be configured via the single-chip controller. For very short labels (under 30 mm), please consult our technical team for custom tooling options.
Can the QP-350 be integrated with a shrink sleeve applicator?
+
Yes. The QP-350 is designed as the upstream cutting station in a complete shrink sleeve production line. It can feed cut labels directly to an automatic sleeve applicator via conveyor belt. Line speed synchronization can be coordinated through the control panel. Contact us for specific integration support with your existing labeling equipment brand.
Does Xuanhai provide installation and commissioning support?
+
Yes. We provide detailed installation manuals, commissioning video guidance, and remote technical support for all buyers. For large-volume orders or overseas projects, on-site engineer dispatch can be arranged subject to travel arrangements. Spare parts are available from our factory with global shipping.
What is the difference between the QP-350 and QP-400 models?
+
The primary difference is working width: the QP-350 accommodates shrink sleeve films up to 330 mm wide (flattened tube width), while the QP-400 accepts up to 380 mm. If your product requires a sleeve diameter above approximately 210 mm, the QP-400 or wider model is recommended. Production speed at the QP-400 remains at 500 pcs/min.
Is the machine CE or ISO certified?
+
Ruian Xuanhai Machine Co., Ltd. manufactures under ISO-compliant quality systems. CE documentation can be prepared for export to EU markets upon request. Please specify your target market and compliance requirements when requesting a quotation.
Label Samples

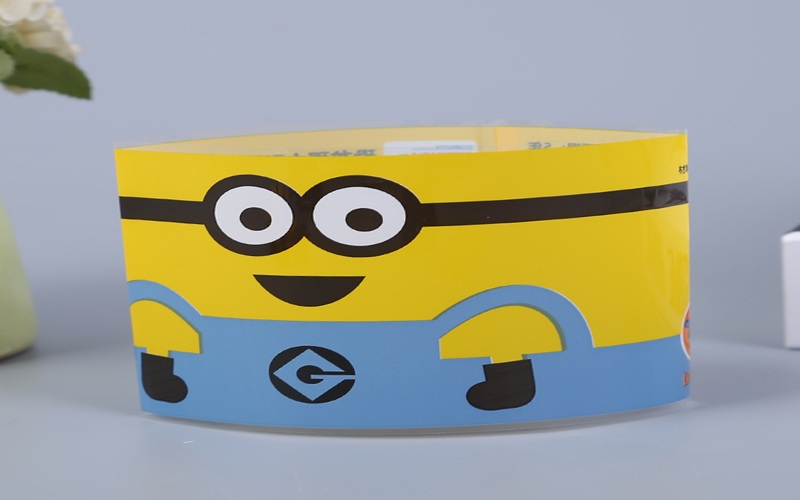

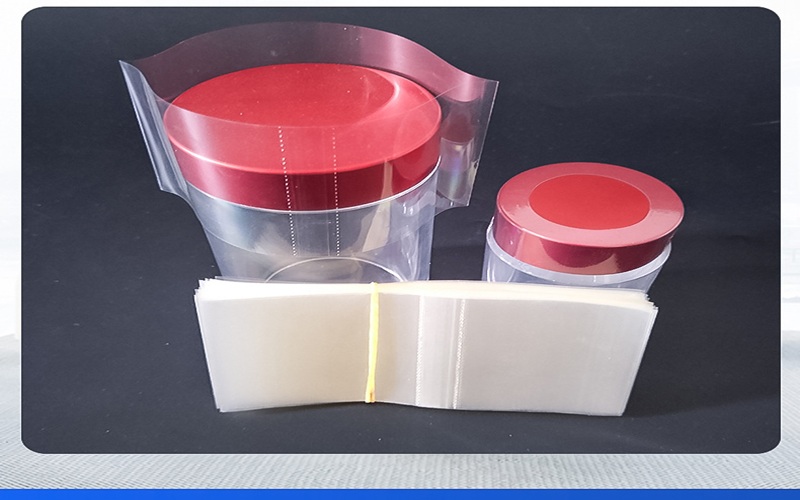

Shrink Sleeve Labels Produced by This Machine
The following sample outputs demonstrate the consistent cutting quality and label edge finish produced by the QP-350 at production speed.
