C1300 High Speed Slitting Machine | Film & Foil Slitter Rewinder
Description
Industrial Slitter Rewinder — Model C1300
C1300 High Speed Slitting Machine
500 m/min · Servo-Driven · PLC Automated
Purpose-engineered for flexible packaging converters running BOPP, PET, OPP, CPP, PE, PVC and aluminum foil. Achieve 5–10× more output per shift with ±0.1 mm slitting accuracy and zero-drift automatic tension control.
500 m/minMax Speed
1,300 mmWorking Width
±0.1 mmAccuracy
10–500 μmThickness Range
Full Servo3-Axis Drive
Product Images
C1300 full machine overview, HMI control panel, differential rewind shafts, and slitting head detail. Click any thumbnail to zoom in.

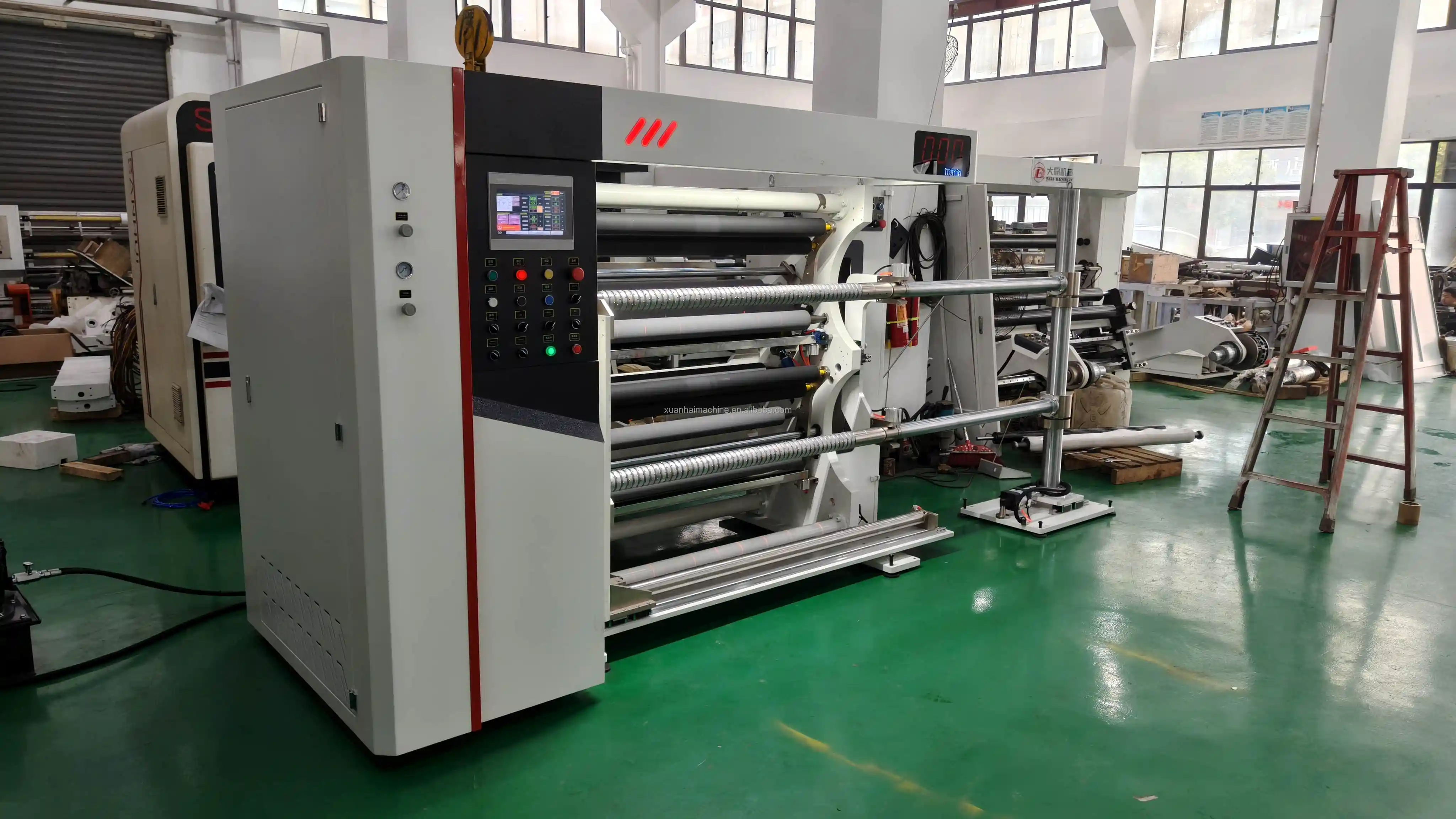

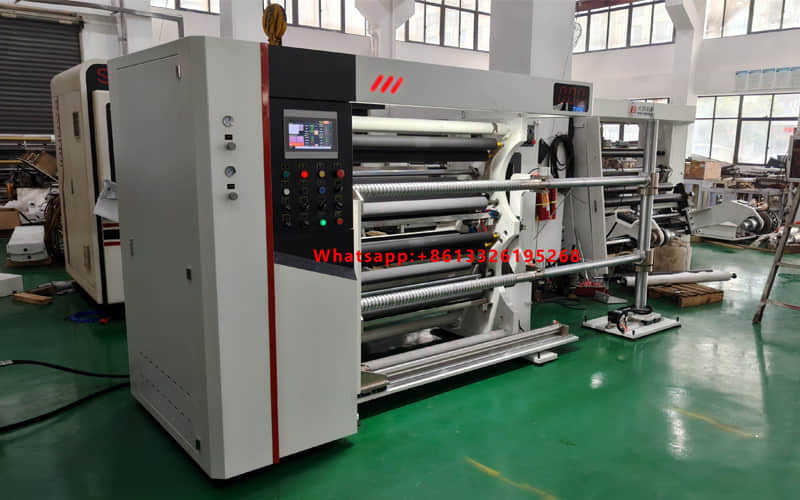

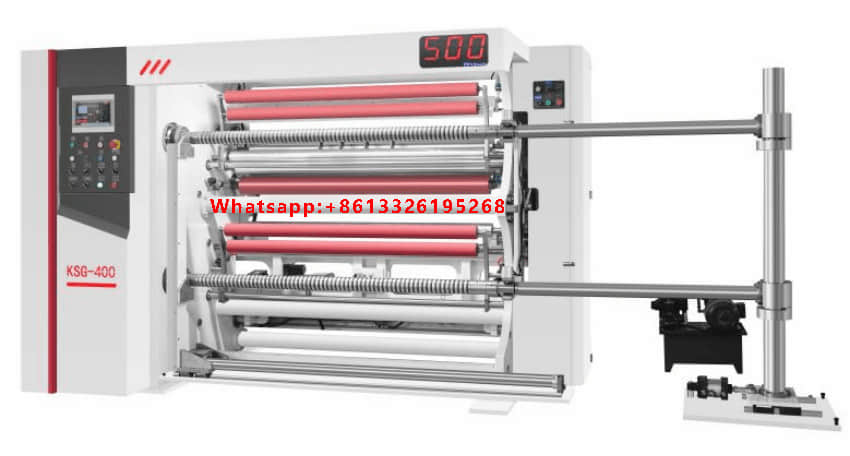

C1300 High Speed Slitting Machine — Full Machine Overview · Max 500 m/min · 1300mm Width · ±0.1mm Accuracy

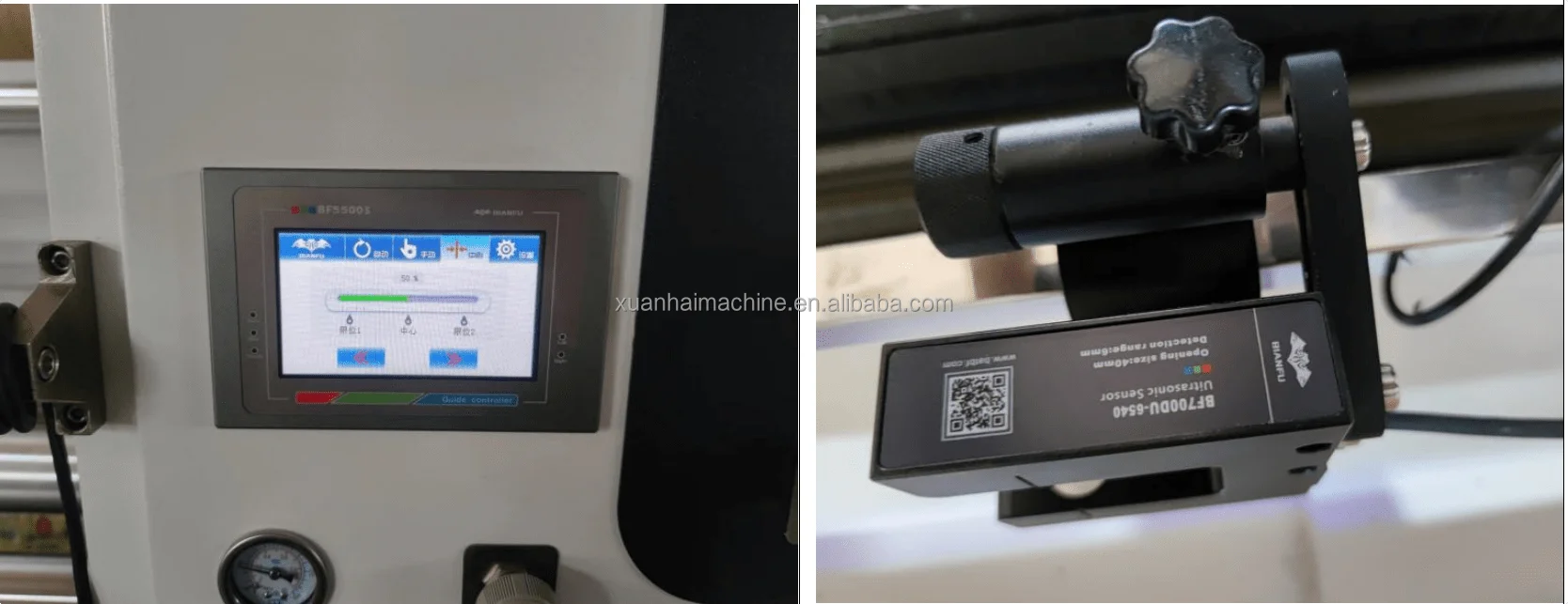

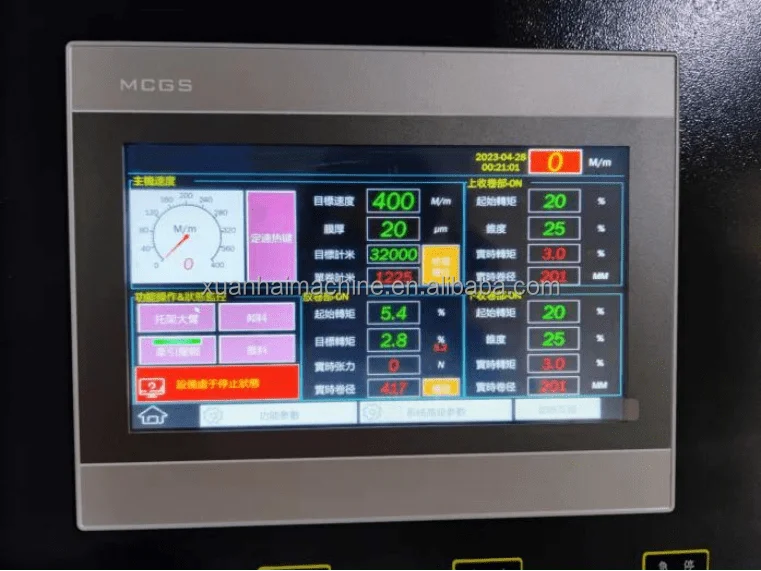

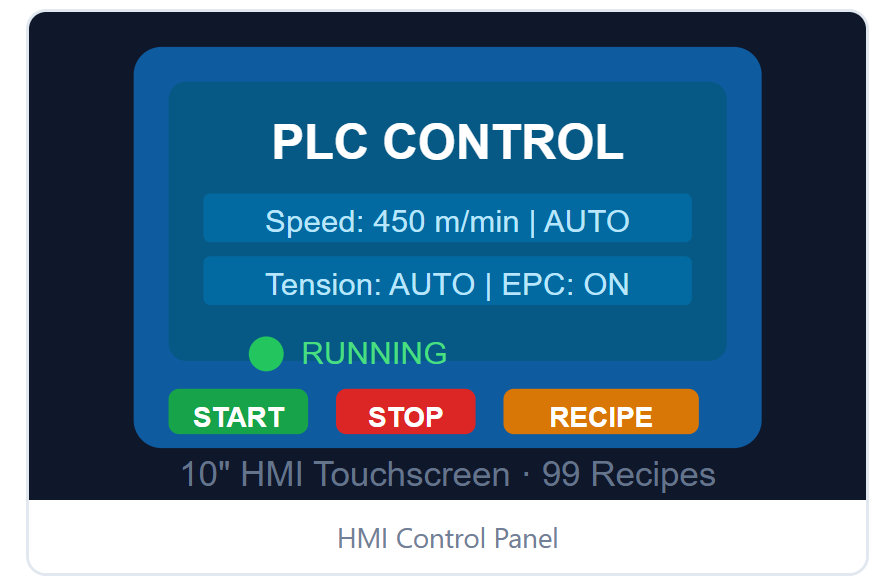

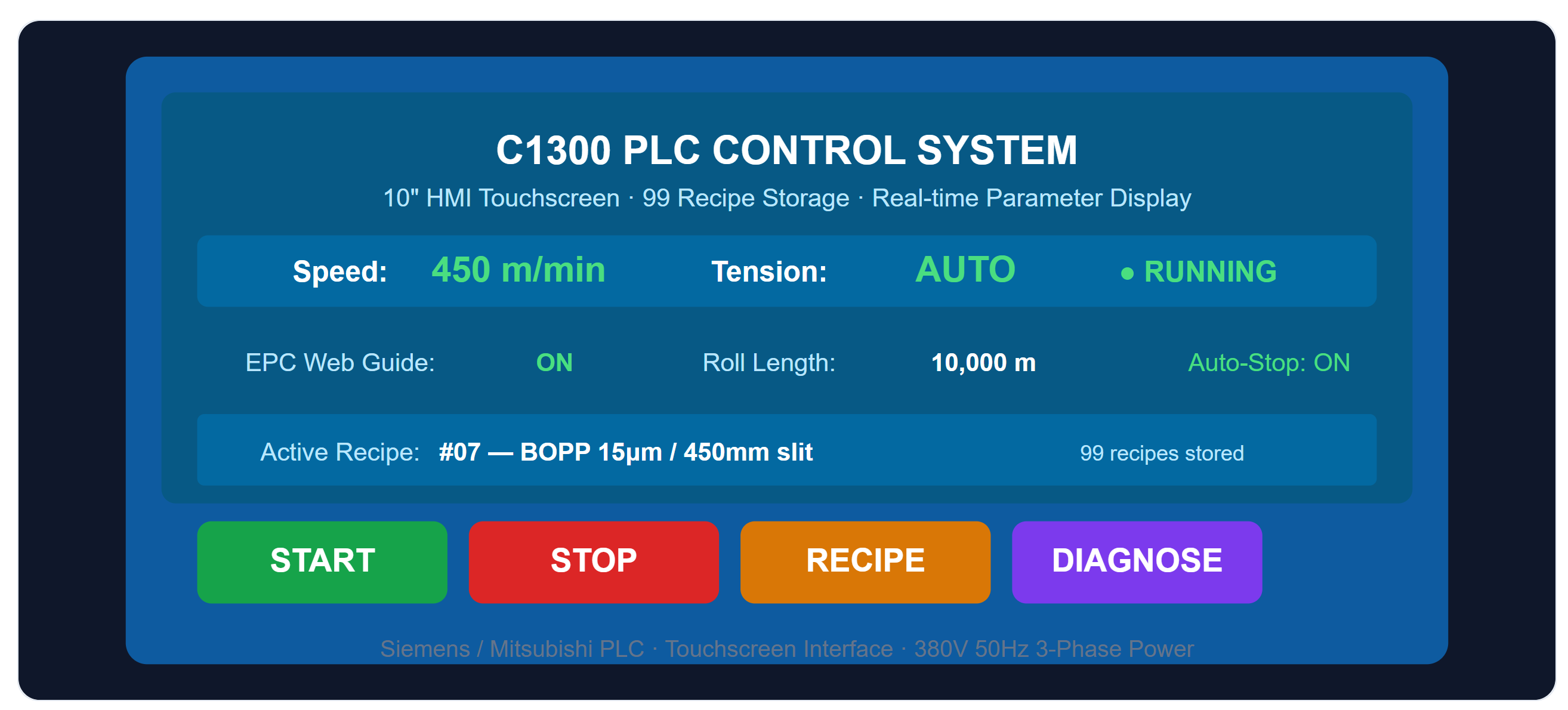

HMI Control Panel

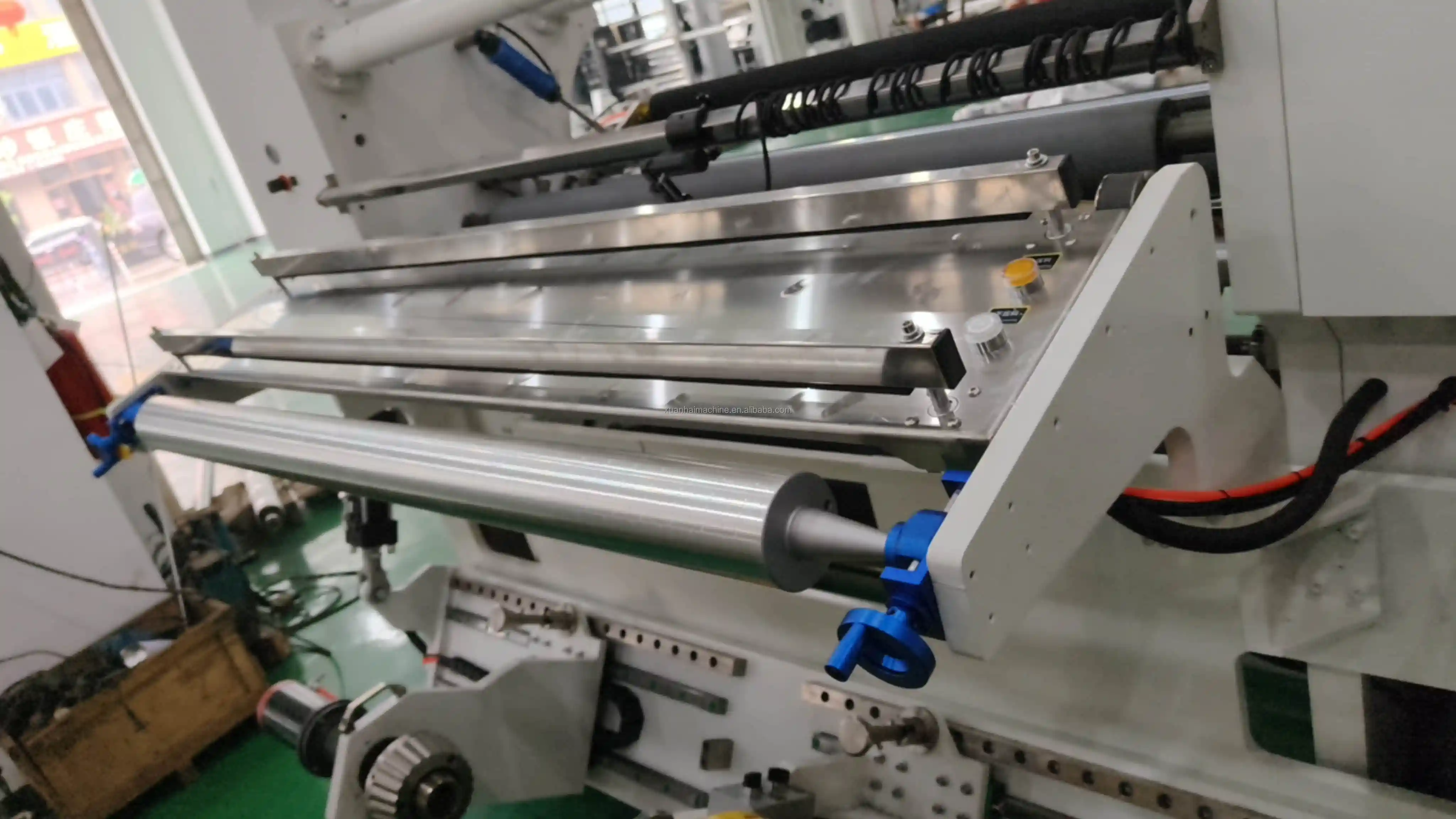

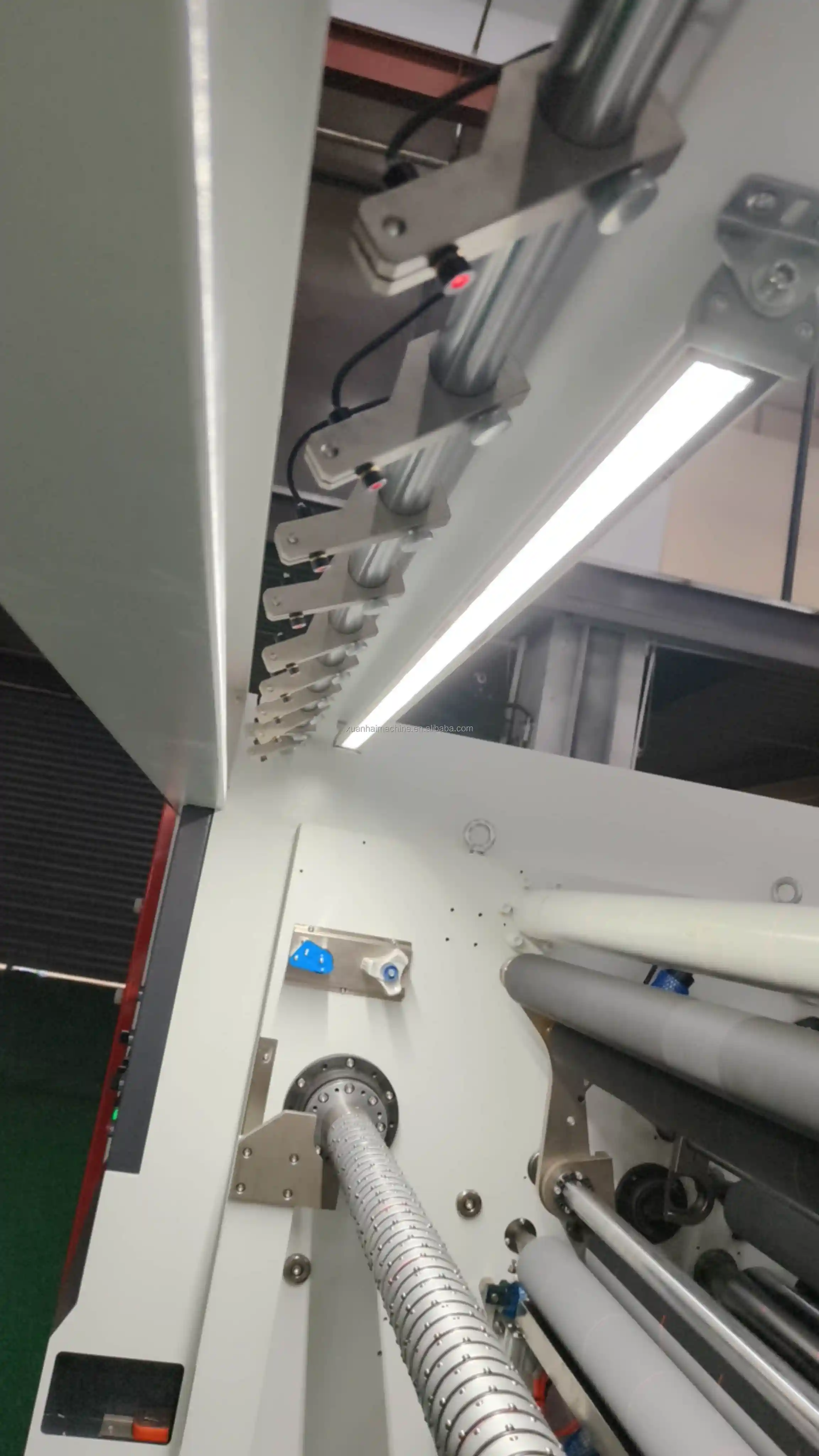

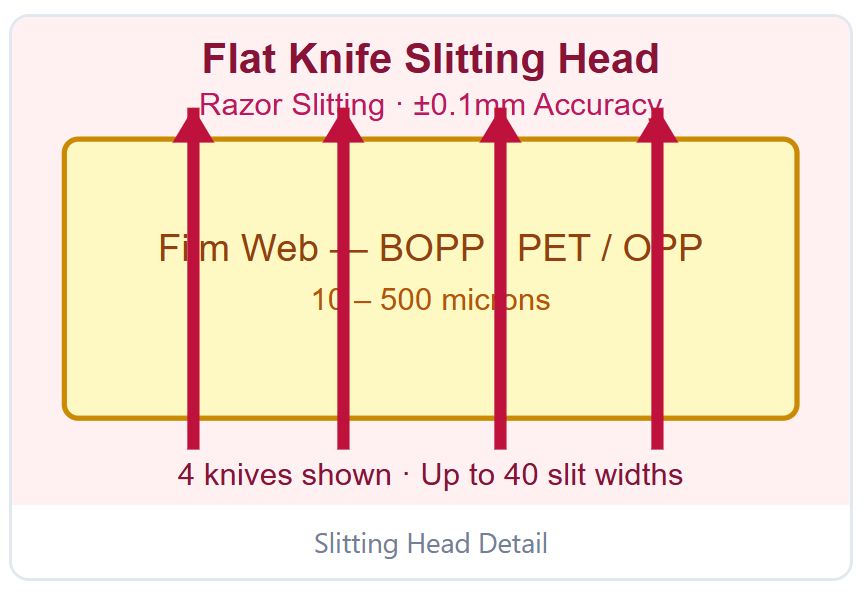

Slitting Head Detail

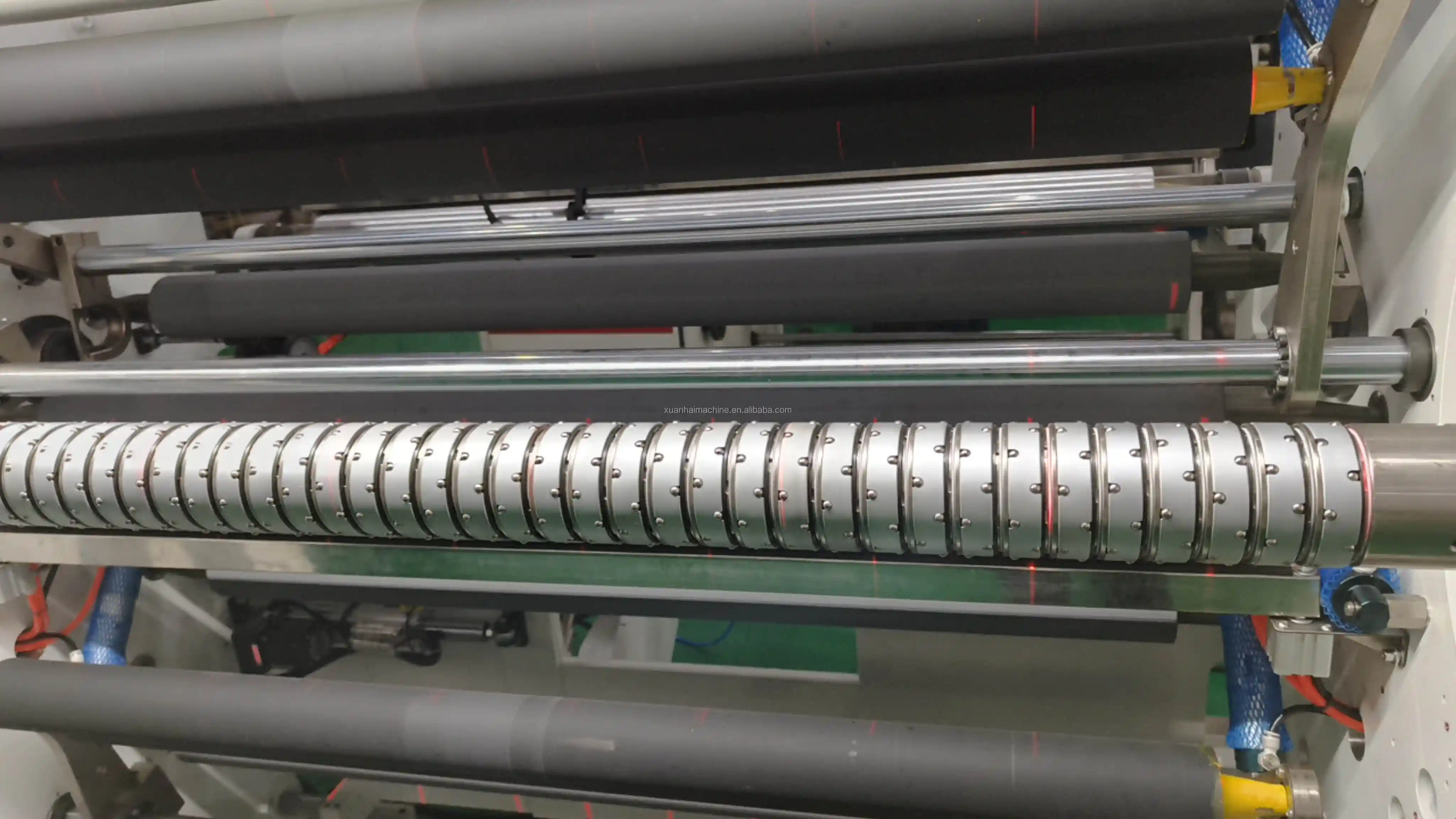

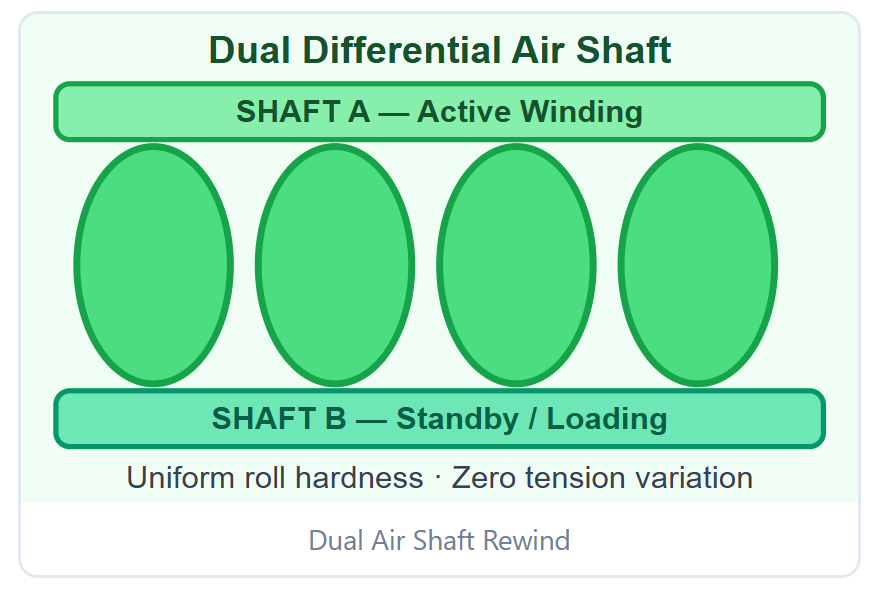

Dual Air Shaft Rewind

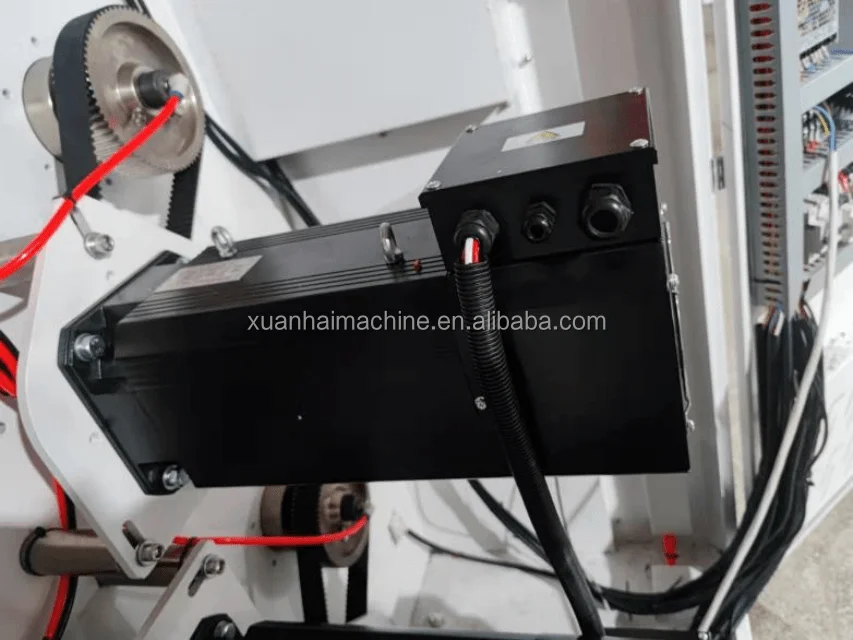

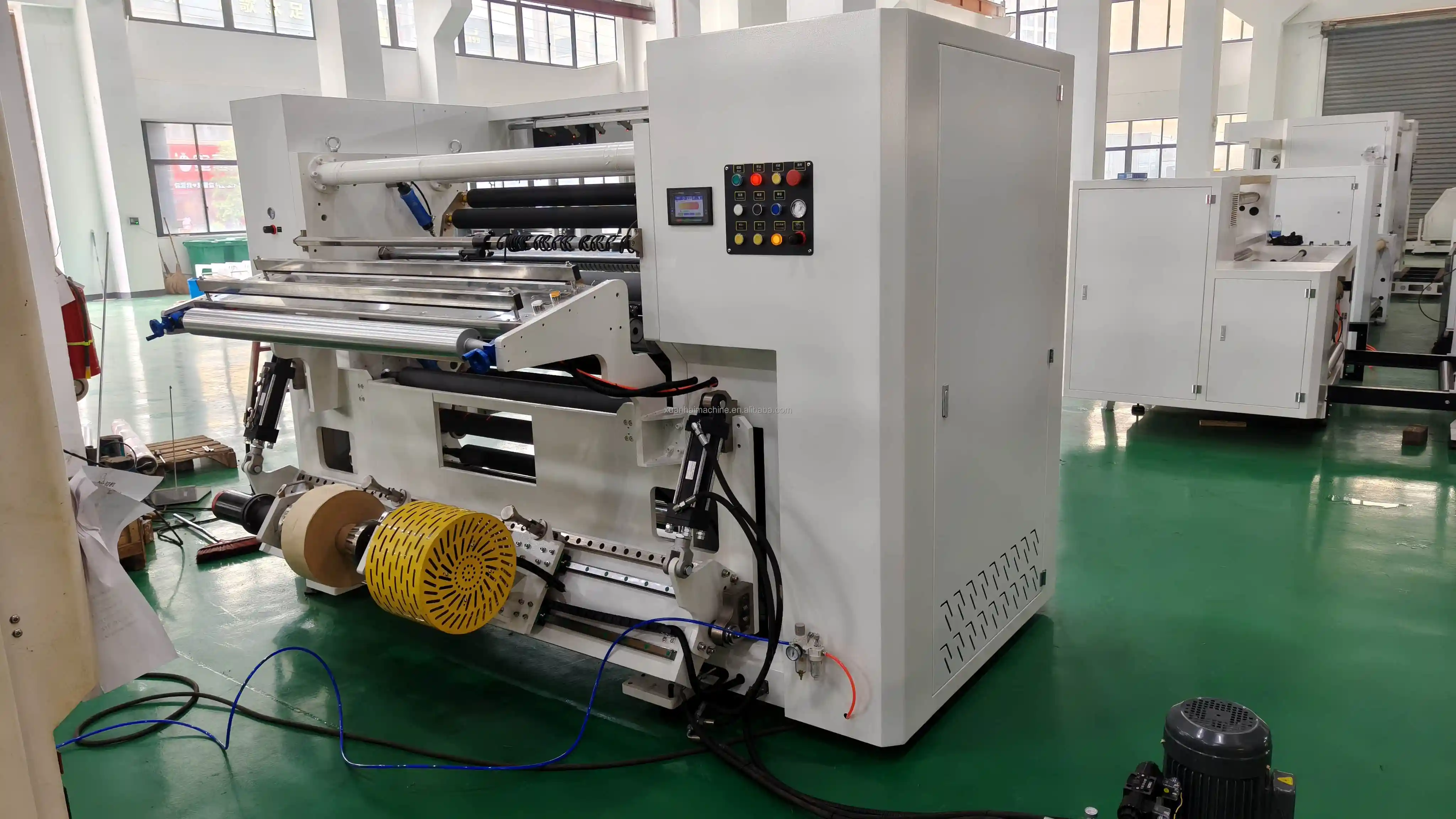

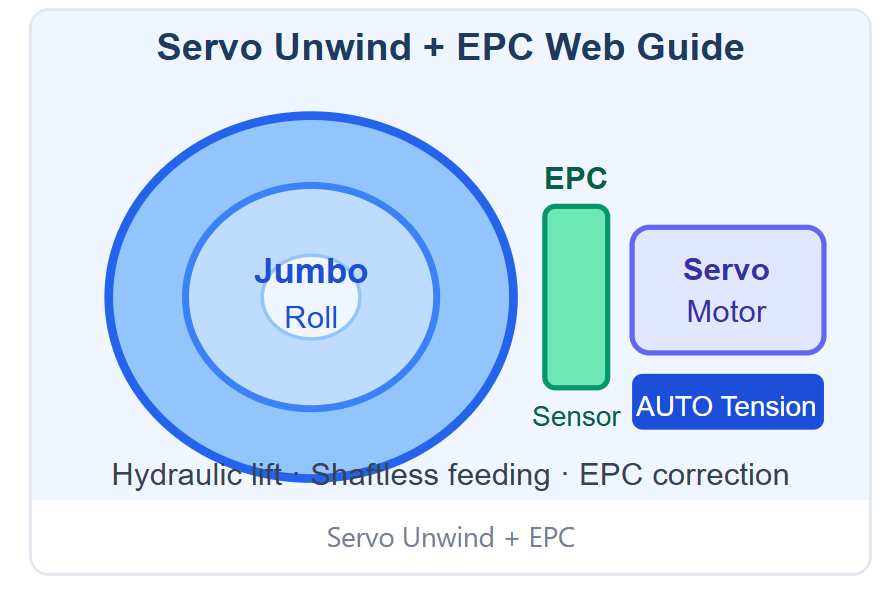

Servo Unwind + EPC
500 m/min — Full Speed

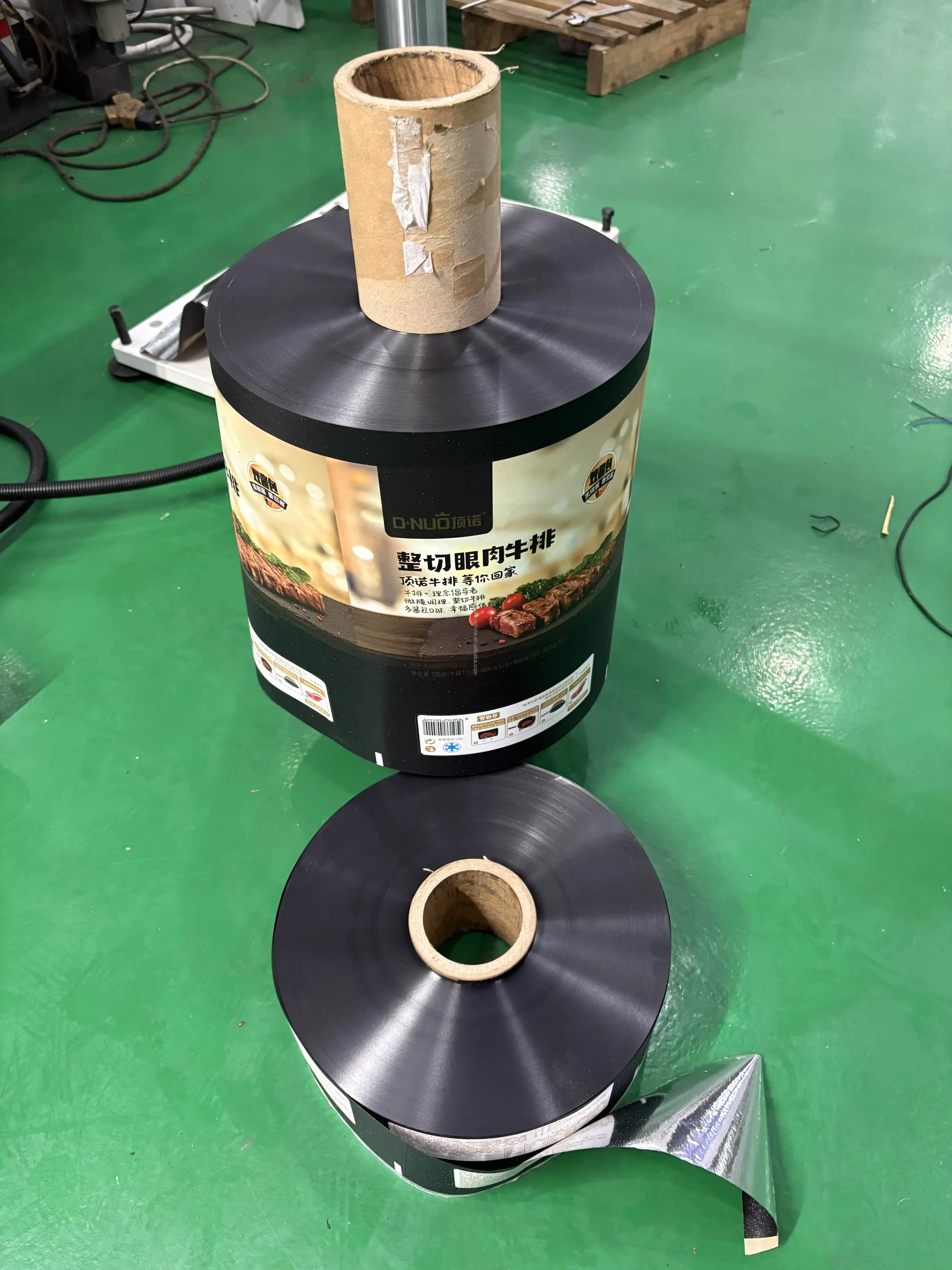

Compatible Materials
Machine in Operation — Video
See the C1300 running at high speed with automatic tension control, EPC web guiding, and precision multi-roll rewinding on flexible packaging film.
C1300 slitter rewinder — 12μm BOPP film slitting at 450 m/min · Consistent edge quality · Zero flutter web path

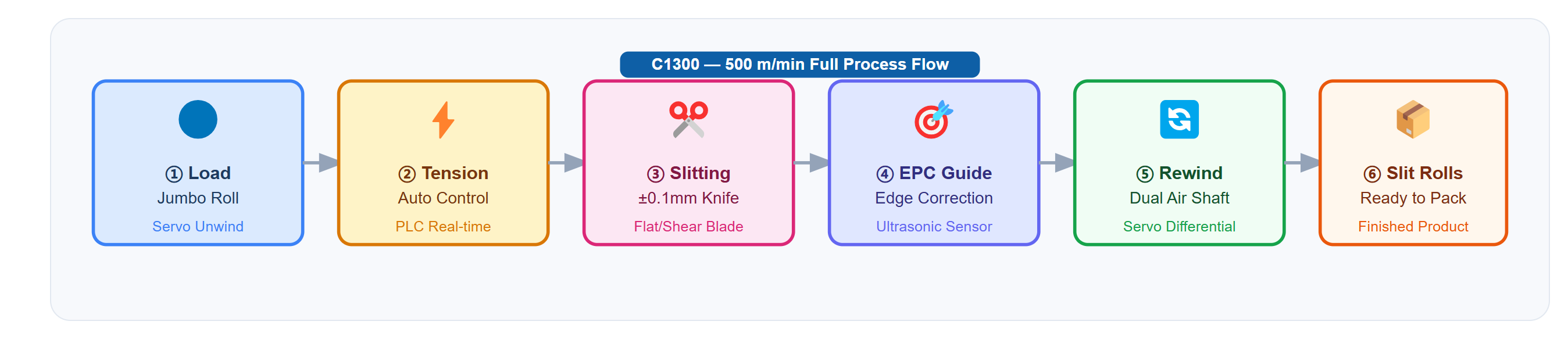

How the C1300 Works — Step-by-Step Process Flow
High Speed vs Standard Slitting Machine
A direct comparison — why the C1300 at 500 m/min outperforms conventional slitters on every metric that drives your production economics.
C1300 — 500 m/min High Speed
C1300 Servo Slitter Rewinder
✓500 m/min max speed — 5–10× output per shift; meet urgent orders without overtime
✓Full 3-axis servo drive — unwind, traction & rewind all servo; zero tension flutter at any speed
✓PLC + 10" HMI touchscreen — 99 recipes stored; recall in <2 min; no manual re-setup
✓Automatic EPC web guiding — ultrasonic sensor corrects edge drift, unattended full-roll runs
✓±0.1 mm slitting accuracy — meets pharma, optical & narrow-label tolerances at full speed
✓Dual differential air shaft rewind — multi-roll simultaneous output, uniform hardness across all widths
✓Auto meter counting + auto stop — precise at target length, <1% total waste
✓CE certified; waste edge fan exhaust — operator safety, global compliance
Standard Slitter (40–80 m/min)
Conventional Slitting Machine
✗40–80 m/min typical — creates bottlenecks during peaks; limits daily output severely
✗Magnetic powder brake only — passive tension; can't compensate diameter change; causes telescoping
✗Manual parameter setting — tension set by feel; inconsistency batch-to-batch, especially on material changes
✗No EPC / manual edge alignment — constant operator attention; one distraction = one off-spec roll
✗±0.5–1 mm tolerance — insufficient for printed register, die-cut label, or optical film
✗Single-shaft rewind — full stop for changeover; 25–35 min downtime per shift
✗Manual length measurement — over/under-wind errors common; 2–4% material waste
✗Manual trim removal — operator exposure to fast-moving trim edge
ROI Comparison — Per 8-Hour Shift
Assumption: 500mm wide BOPP film, 10,000m jumbo rolls, 20 min changeover
| Metric | Standard (70 m/min) | C1300 (450 m/min avg) | Advantage |
|---|---|---|---|
| Rolls processed / shift | ~12 rolls | ~55 rolls | +358% throughput |
| Operator requirement | Continuous manual oversight | 1 operator runs 2 machines | 50% labor reduction |
| Slitting accuracy | ±0.5–1.0 mm | ±0.1 mm | 5–10× more precise |
| Material waste per roll | 2–4% typical | <1% with auto EPC | 3× less waste |
| Job changeover time | 15–30 min re-setup | <2 min from HMI memory | Faster turnaround |
8 Key Advantages of the C1300
How the C1300's engineering subsystems work together to deliver consistent, production-grade slit rolls in 24/7 environments.
500 m/min Throughput
Process more meters per shift than any conventional machine. Urgent orders and seasonal peaks handled without overtime.
±0.1 mm Slitting Precision
Servo knife positioning ensures every slit width is exact — critical for pharma pouches, optical films, and narrow label stock.
Constant Tension Control
PLC auto-compensates as roll diameter changes from full to core. No telescoping. Uniform hardness from meter 1 to the last.
HMI Recipe Management
Store 99 product recipes. Switch materials and widths in under 2 minutes — zero risk of operator error.

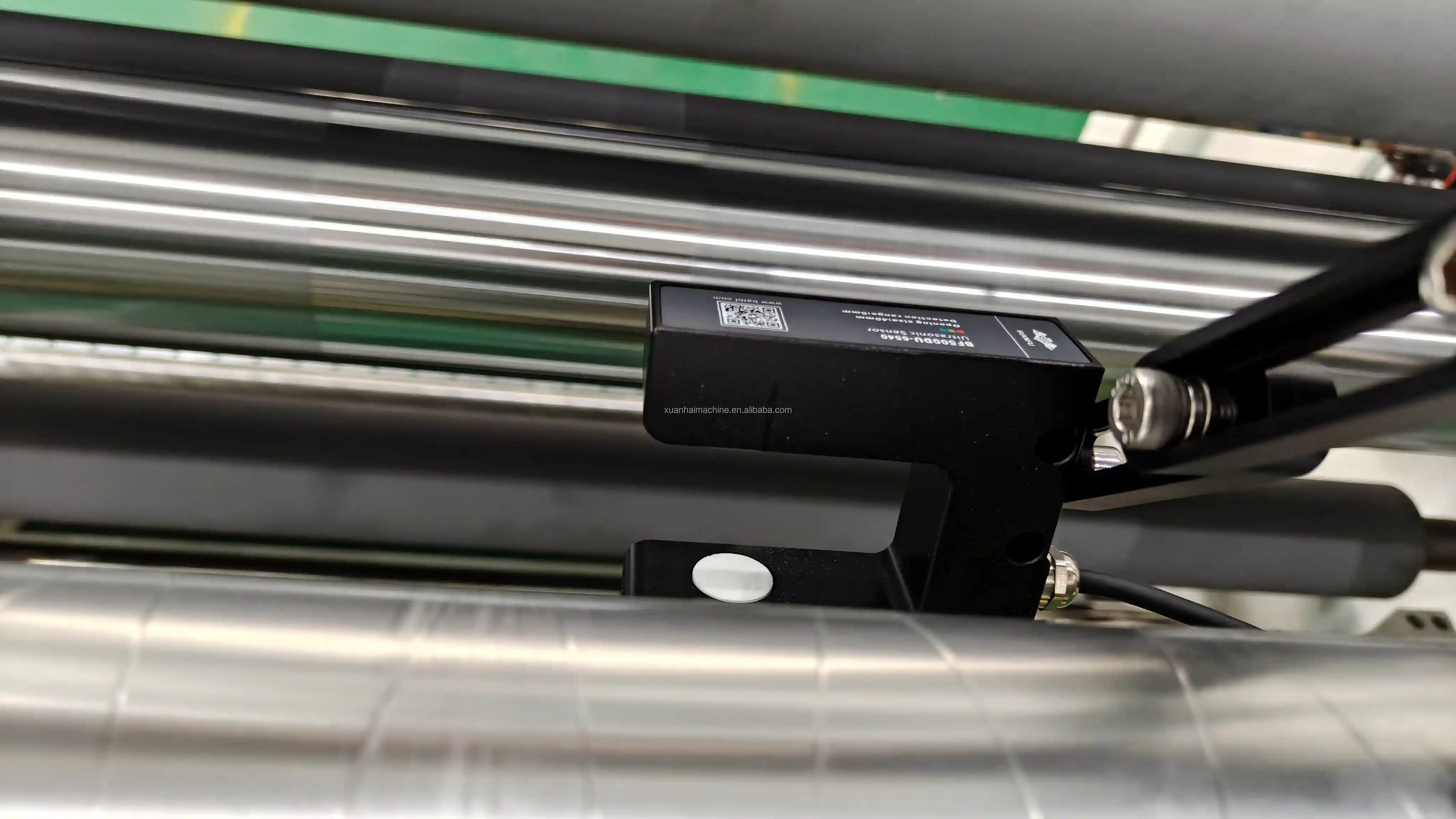

Auto EPC Web Guiding
Ultrasonic edge-position sensors correct drift in real time. Runs unattended for full mother-roll lengths.
CE-Certified Safety

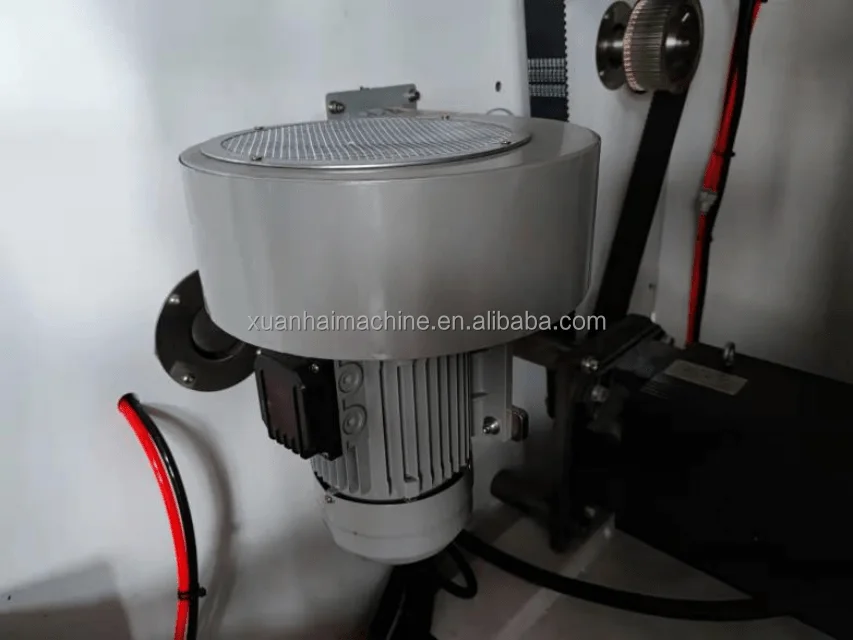

Waste edge auto-exhaust fan, emergency stops at every station, and safety interlocks on all moving zones.
Dual Differential Air Shaft
Each slit roll winds independently. Even with film thickness variation, every roll rewinds to the same hardness.
Under 1% Material Waste
Auto meter counting stops the machine at your exact target length. Material waste drops below 1% per run.
Technical Specifications
Full specification sheet for the C1300 slitting and rewinding machine. Custom configurations available on request.
| Parameter | Specification |
|---|---|
| Model | C1300 |
| Maximum Mechanical Speed | 500 m/min |
| Maximum Working Width | 1,300 mm |
| Maximum Unwind Diameter | Ø 800 mm (optional Ø 1,000 mm) |
| Maximum Rewind Diameter | Ø 500 mm (optional Ø 600 mm) |
| Core Inner Diameter | 3" (76 mm) / 6" (152 mm) standard; custom available |
| Minimum Slitting Width | 20 mm |
| Slitting Accuracy | ±0.1 mm |
| Material Thickness Range | 10 – 500 microns |
| Drive System | Full servo motor — unwind + traction + rewind (3-axis) |
| Tension Control | Automatic PLC compensation via diameter calculation |
| Web Guiding | Automatic EPC (ultrasonic edge position sensor) |
| Knife Method | Flat knife (razor slitting); optional shear knife |
| Rewind Shaft Type | Dual differential air shaft (friction differential) |
| Control System | Siemens / Mitsubishi PLC + 10" HMI color touchscreen |
| Safety Standards | CE-compliant; emergency stop, safety interlocks, waste fan |
| Power Supply | 380V / 50Hz / 3-phase (customizable for 60Hz / 415V) |
| Machine Weight | Approx. 4,500 kg |
| Overall Dimensions (L×W×H) | Approx. 5,200 × 2,100 × 1,800 mm |
| Certification | CE, ISO 9001:2015 |
| Warranty | 12 months from B/L date; lifetime technical support |

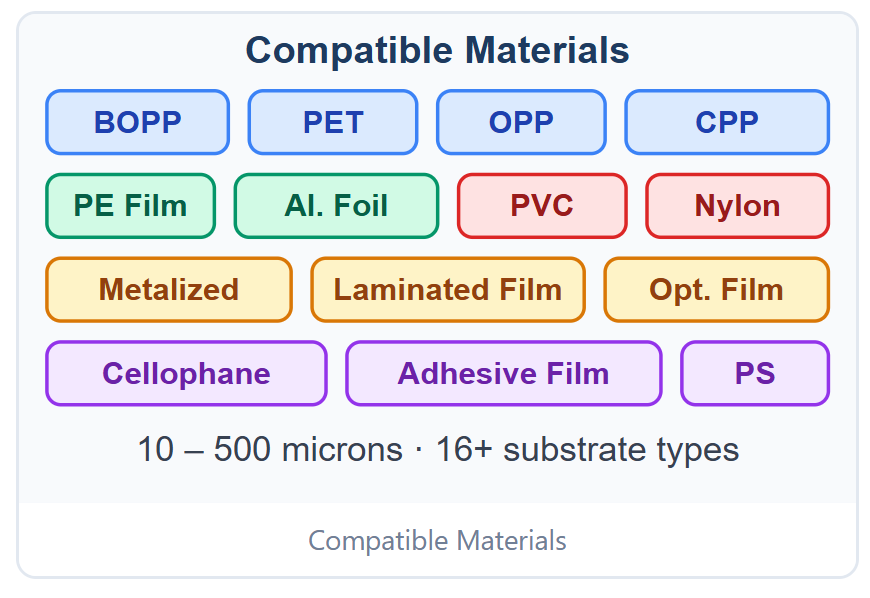

Compatible Materials
Validated for all major flexible packaging substrates — 10 to 500 microns. Multi-layer laminates run at adjusted speed per substrate requirement.
BOPP Film
PET Film
OPP Film
CPP Film
PE Film
Aluminum Foil
PVC Film
PS Film
Nylon (PA)
Cellophane
Metalized Film
Laminated Film
Coated Paper
Adhesive Film
Optical Film
Composite Film
Applications
Common downstream uses of C1300-slit rolls across flexible packaging industries.
Flexible Packaging
Stand-up pouches, zipper bags, side-seal bags, pillow packs — slit to exact pouch-making machine widths.
Food Packaging Film
Snack bags, retort pouches, vacuum-seal film — food-grade precision on every slit edge.
Label & Self-Adhesive Stock
Pressure-sensitive label reels to die-cutter width. Tight tolerances prevent label waste.
Pharmaceutical Packaging
Child-resistant pouches, blister lidding foil, sachet film — regulatory accuracy every roll.
Optical & Electronic Films
Polarizer film, diffuser sheets, LCD protective film — contamination-free, clean slitting.
Industrial Film
Stretch film, surface protection film, construction barrier — high-volume throughput.
What Makes the C1300 Different
Full 3-Axis Servo — Not Just the Drive
Many competitors servo only the traction roller. The C1300 drives all three axes — the only way to maintain constant tension from 800mm diameter to bare core.
Recipe Memory for Rapid Changeover
Converters with 10–30 SKUs lose hours to re-setup. HMI stores complete parameter sets — switching takes under 2 minutes, not 20.
Engineered for Pouch Film — Not Repurposed
Tension range, knife geometry, and shaft specification are optimized for 12–80 μm multi-layer films used in pouch-making lines.
Lifetime Technical Support
Schematics, spare parts catalog, and remote diagnostic support included permanently — not time-limited.
Customer Film Testing Before Shipment
Every C1300 is test-run with customer film samples before shipping — verifying all parameters under real conditions.
Upgrade Path to 600 m/min
The mechanical frame supports a 600 m/min servo upgrade — protecting your capital investment as your volume grows.
Frequently Asked Questions
Technical and procurement questions most often asked before specifying the C1300.
The C1300 reaches 500 m/min maximum mechanical speed. For 12–15 μm BOPP or PET, 450–500 m/min is routinely achievable. Heavier substrates such as 80 μm PE or laminated film typically run at 200–350 m/min for optimal rewind quality.
Three ways. Throughput: 500 m/min vs 70 m/min delivers ~7× more output per shift. Labor: EPC and recipe memory let one operator run two machines simultaneously. Material: ±0.1 mm precision and auto-stop reduces waste below 1% per roll. Most customers achieve payback within 12–24 months on medium-to-high volume lines.
Yes, with specific configuration. Optical films require anti-static rollers, ionization bars, and enclosed knife housings to prevent contamination. Metallized films need shear knife configuration to avoid edge delamination. Please specify your substrate when requesting a quote.
Standard minimum is 20 mm. For narrower slitting down to 10 mm (specialty tape, label applications), a narrow-slit configuration with guided differential shaft spacers is available on request.
Level concrete floor rated 5,000+ kg/m² point load; 380V / 50Hz / 3-phase power (customizable); minimum floor space 7m × 3.5m including operator clearance; compressed air at 0.6 MPa for air shaft inflation. Detailed foundation drawings supplied before shipment.
Razor slitting uses a fixed blade the film passes over — ideal for BOPP, PET, OPP, CPP and most thin mono-layer films at very high speeds. Shear knife slitting uses upper and lower rotating circular knives — preferred for aluminum foil, thick PE, laminates, and any material where razor cutting causes edge fraying. The C1300 supports both configurations; dual knife systems are available on request.
Get Your C1300 Quote & Technical Specifications
Share your material type, roll width, target slit widths, and monthly volume — our engineering team will confirm the right configuration and provide an FOB price within 24 hours.
