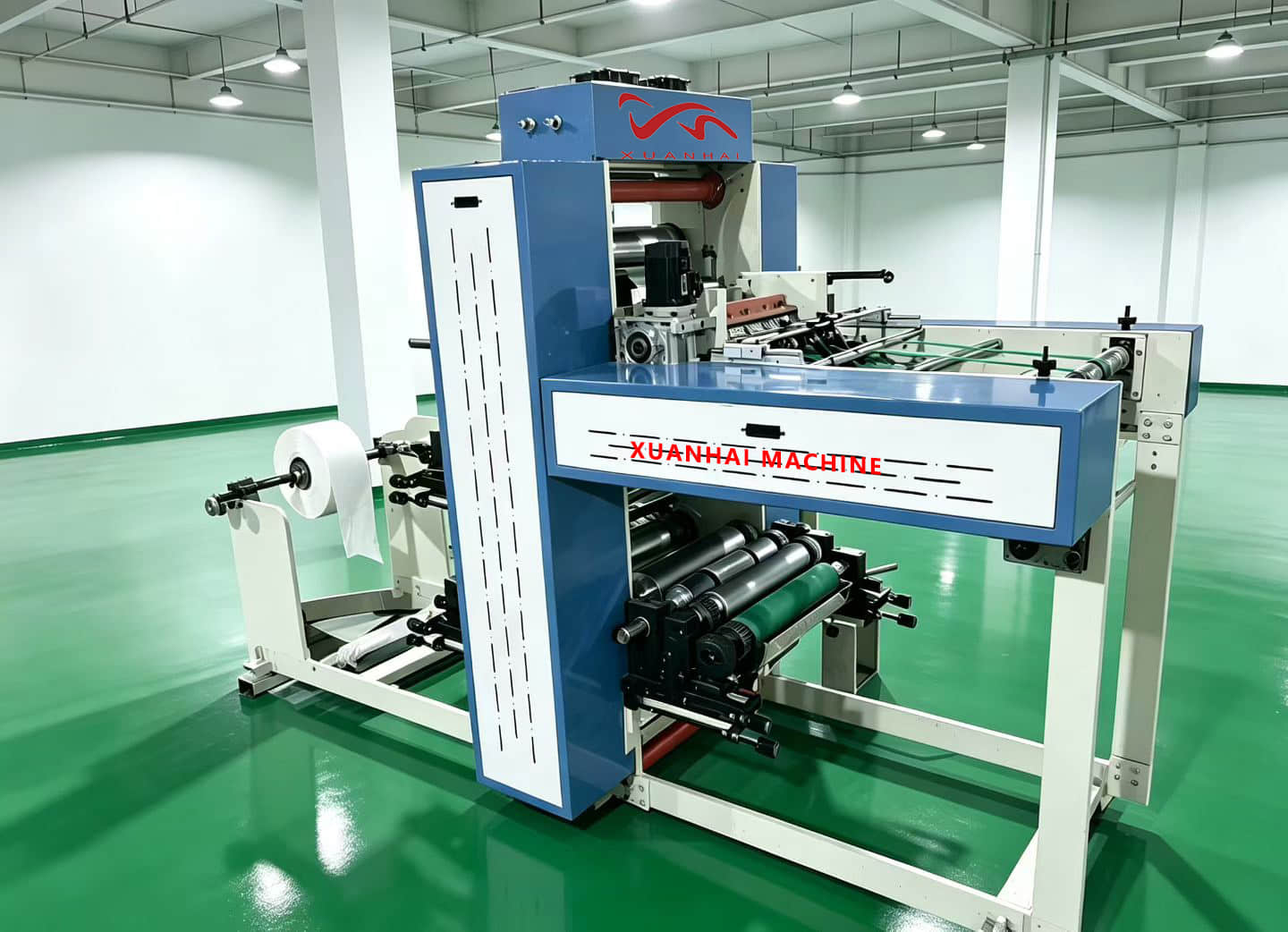

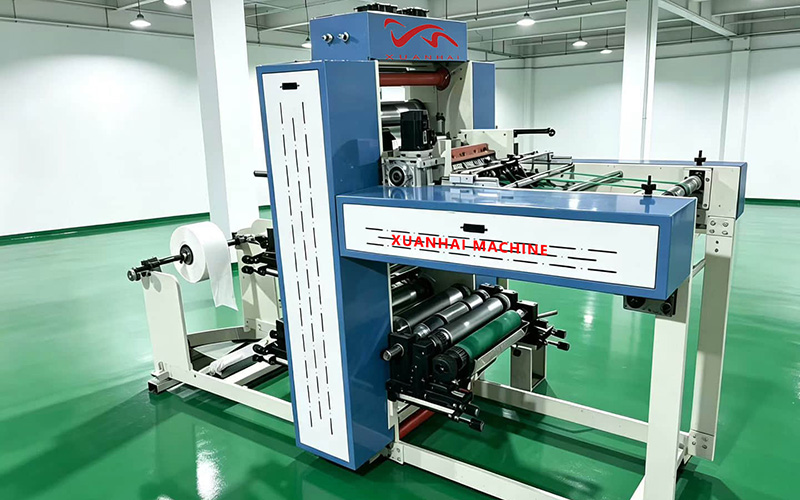

ZR-YG2600 printing machine with hob cutting

Flexographic Printing Press Description

This machine utilizes photosensitive resin (flexible) plates for printing—commonly referred to as a "flexographic" (or "aniline") printing press. It is suitable for printing on materials such as polyethylene (PE) and polypropylene (PP) plastic bags, cellophane, paper rolls, and non-woven fabrics. It serves as an ideal printing solution for food packaging, supermarket carrier bags, T-shirt bags, garment bags, and similar packaging products.

Features of the Flexographic Printing Press

1. The PLC system is used to control the running speed of the whole machine, which is doubled, easy to operate, soft to start, and accurate in color registration.

2. High-speed dot reproduction rate, bright layered printing effect and strong three-dimensional effect

3. The counter can set the printing quantity or count meters according to the requirements. It will automatically stop when the number is reached. The printing plate roller will automatically detach when the machine stops, so as to extend the service life of the printing plate.

4. The metal anilox roller transfers ink, the ink color is uniform, and the mesh wire is 220-400 lines to ensure clear and beautiful printing results.

5. Reliable drying system, combined with high-speed operation, can adjust the temperature according to different printing, and cooperate with the fan to achieve high-speed drying and printing.

6.360-degree continuously adjustable longitudinal alignment device

7. The main machine is equipped with an acceleration and deceleration machine that operates stably, has low noise, and can adapt to different printing speeds.

8. The plate roller seat and the collecting frame are equipped with inching and stop buttons to facilitate the operation of the machine when loading the plate.

9. Pneumatic lifting and lowering traction roller, easy to operate

10. The steel roller and aluminum guide roller of the machine have been balanced and tested, and the surface of the steel roller is uneven.

ZR-YG2600 Printing Machine Specifications:

1. Control part

1. The whole machine is equipped with PLC control panel operation.

2. Host 2.2KW motor.

3. Drying system 3KW

4. Conveyor motor 0.75KW

5. Paper delivery workbench 0.37KW

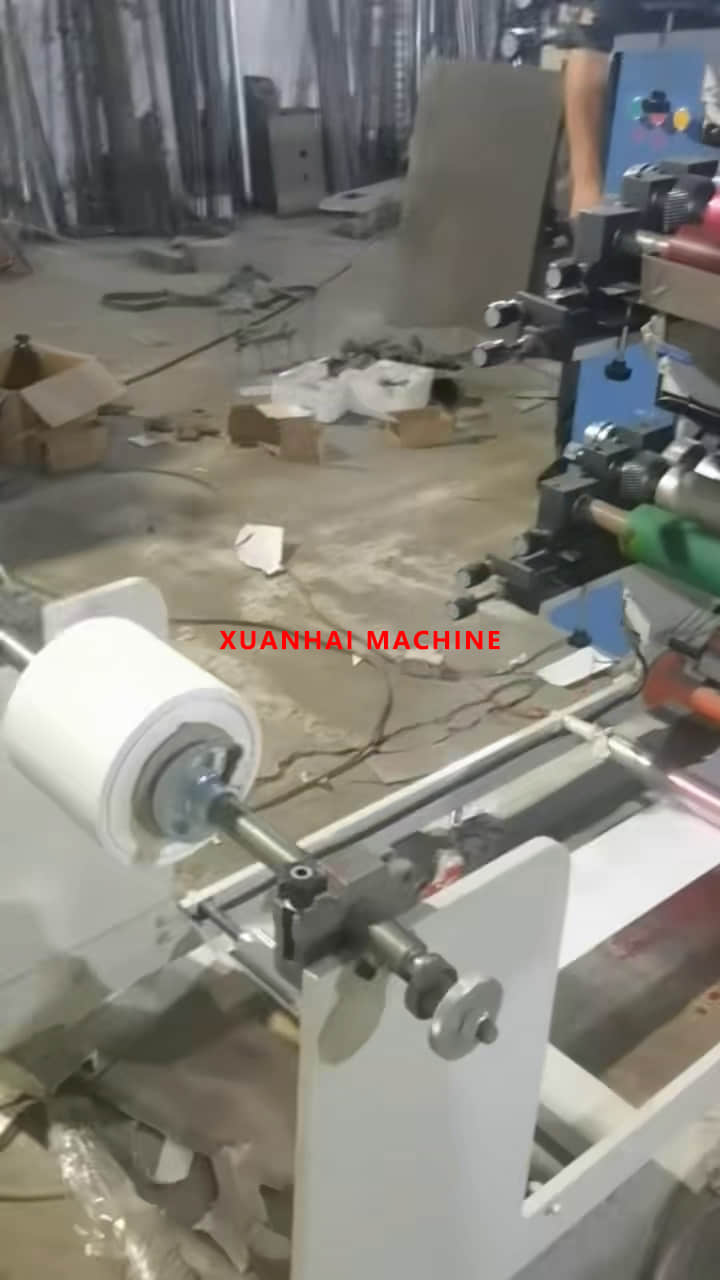

2. Discharging part

1. Single station unwinding.

2. Magnetic powder brake controls tension.

3. 1 piece of 3" air expansion shaft.

4. Pneumatic loading

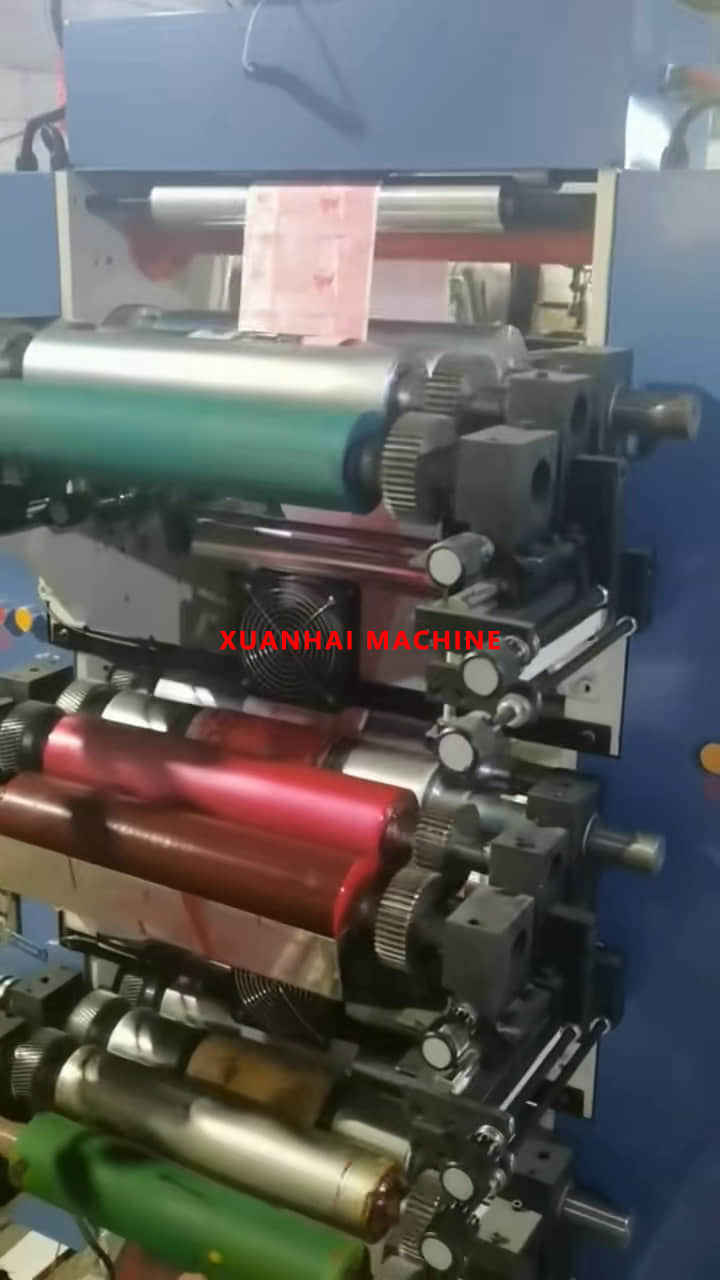

3. Printing part

1. The plate is lifted and lowered pneumatically, and the plate automatically detaches after the machine is stopped.

2. The ink is supplied by a metal anilox roller and a rubber roller in a squeezing and circulating manner.

3. The gear longitudinal alignment accuracy is as high as ±0.1

4. ±20mm horizontal alignment

5. Manually adjust the inking pressure and imprinting pressure.

4. Drying part

1. Intelligent temperature controller controls temperature, 3kw heating

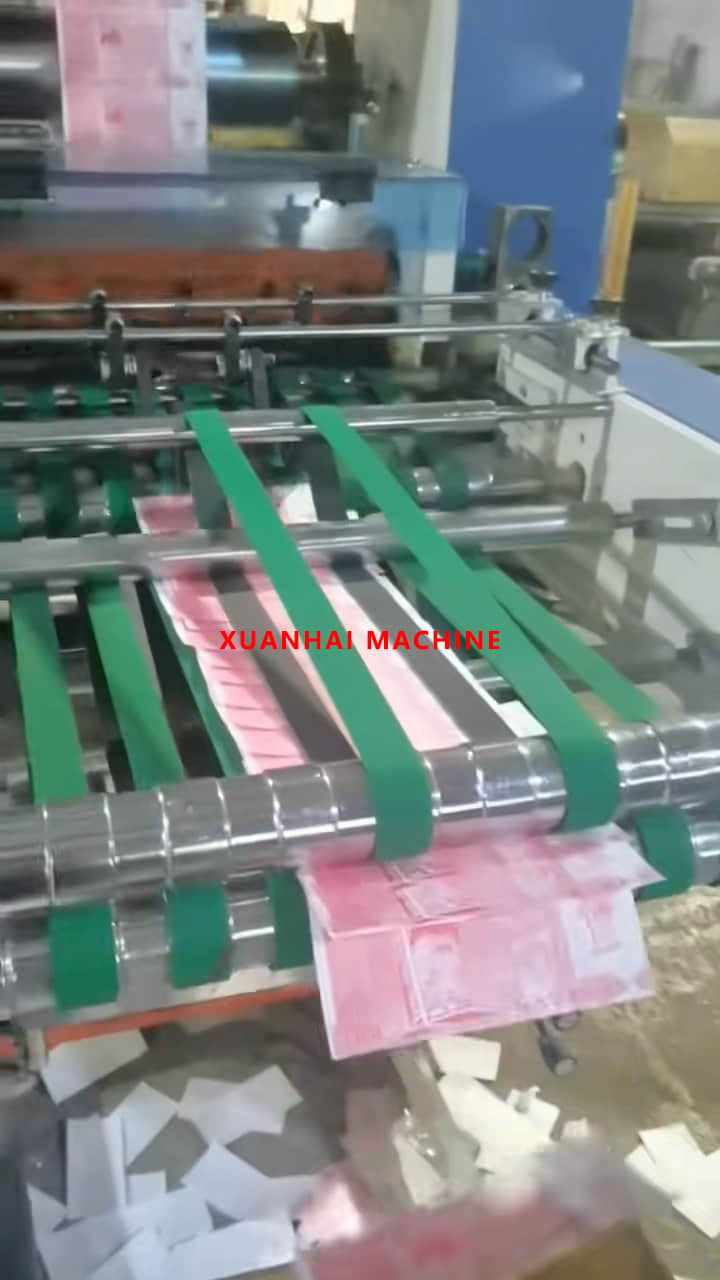

5. Rolling cutting part

1. The material traction is used to synchronize the hob cutting

2. Conveyor belt material handling device
