X-ray Metal Inspection Machine Factory Food Safety Metal Glass Detector Industries

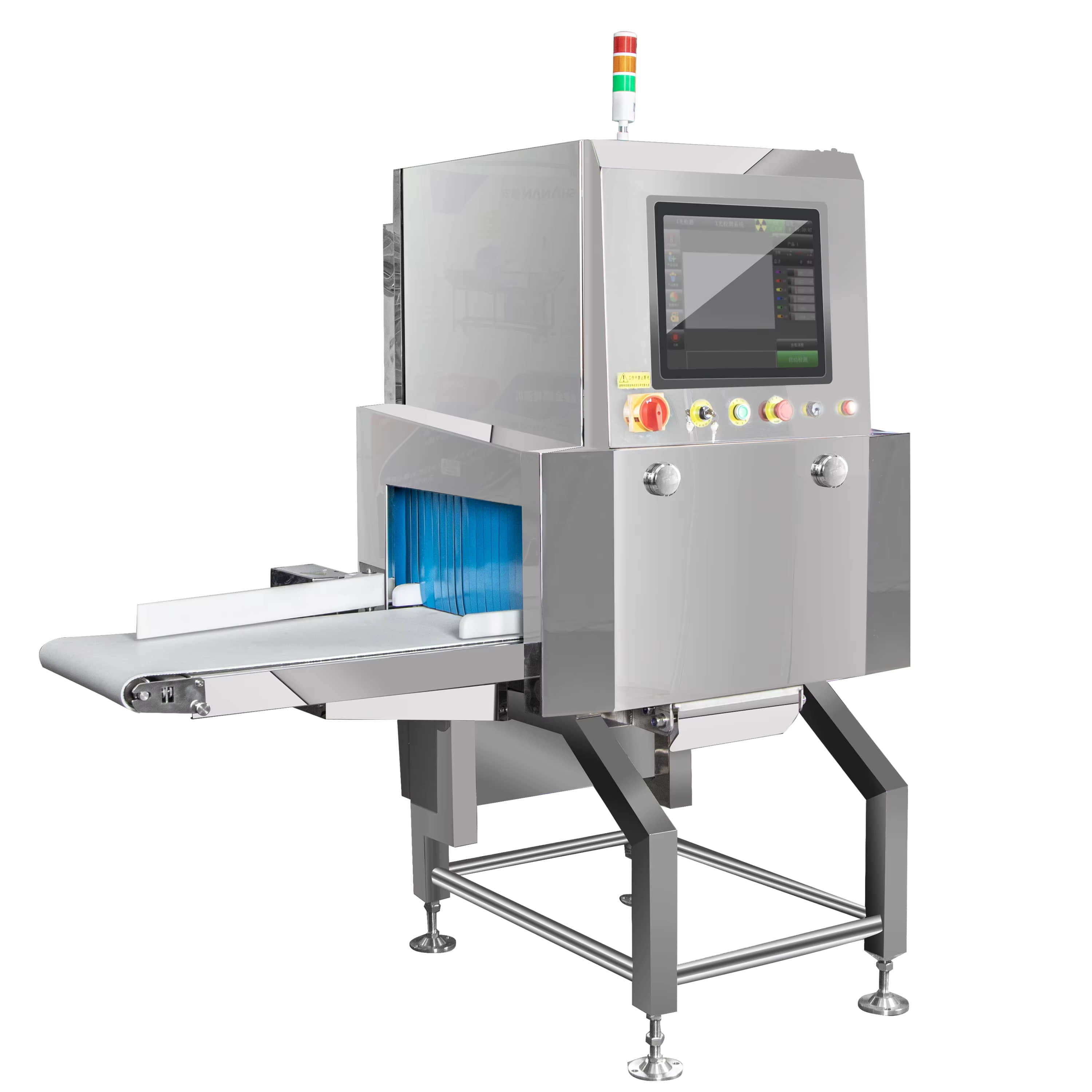

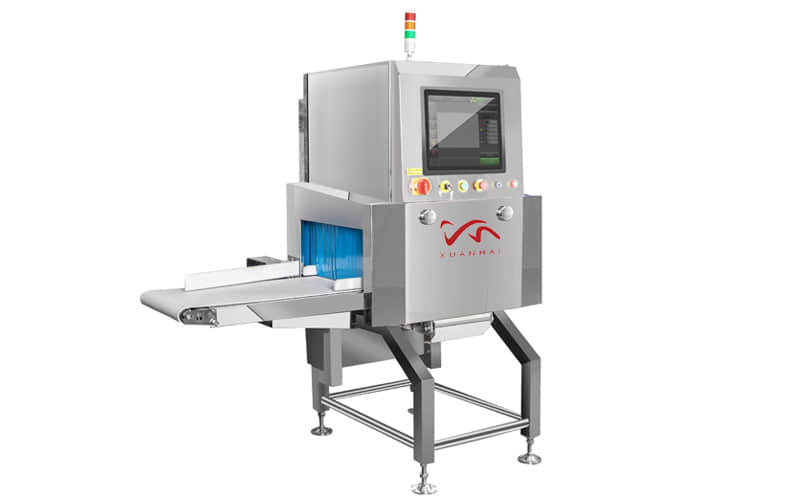

The SAXR series X-ray food inspection system is widely used for foreign body inspection in food, pharmaceuticals, beverages, and other products. It illuminates the product under inspection with X-rays, obtains a transmission image of the product, and uses image processing technology to determine whether the image contains foreign body information.

Foreign body detection range

Highly dense materials, including metals and non-metals, such as stainless steel, iron, ceramics, glass, stone, bone, hard rubber, and hard plastic. The specific detection method depends on the product under inspection.

Machine Advantages

1.Comprehensive foreign body detection: Rapidly detects both metal and non-metallic foreign bodies; regardless of product properties, it can detect metal and non-metal packaging, canned products, and more.

2. High precision: Stainless steel balls can be detected with an accuracy of up to 0.4mm in diameter, stainless steel wire can be detected with an accuracy of up to 0.3mm in diameter and 2mm in length, ceramic balls can be detected with an accuracy of up to 1.5mm in diameter, and glass balls can be detected with an accuracy of up to 1.5mm in diameter.

3. Easy Operation: Large 17-inch touchscreen display; No manual configuration required; Automatically saves images of inspected products;

4. Intelligent Detection: Detects areas that reduce inspection accuracy based on product inspection needs, improving overall inspection accuracy. 5. High Adaptability: Equipped with industrial air conditioning, the machine is unaffected by ambient temperature and humidity.

6. Safety: X-ray leakage protection complies with US FDA and European CE standards.

7. Quality Assurance: Major components, including the X-ray source, detector, motor, and inverter, are all imported from renowned brands, ensuring the performance and longevity of the machine.
